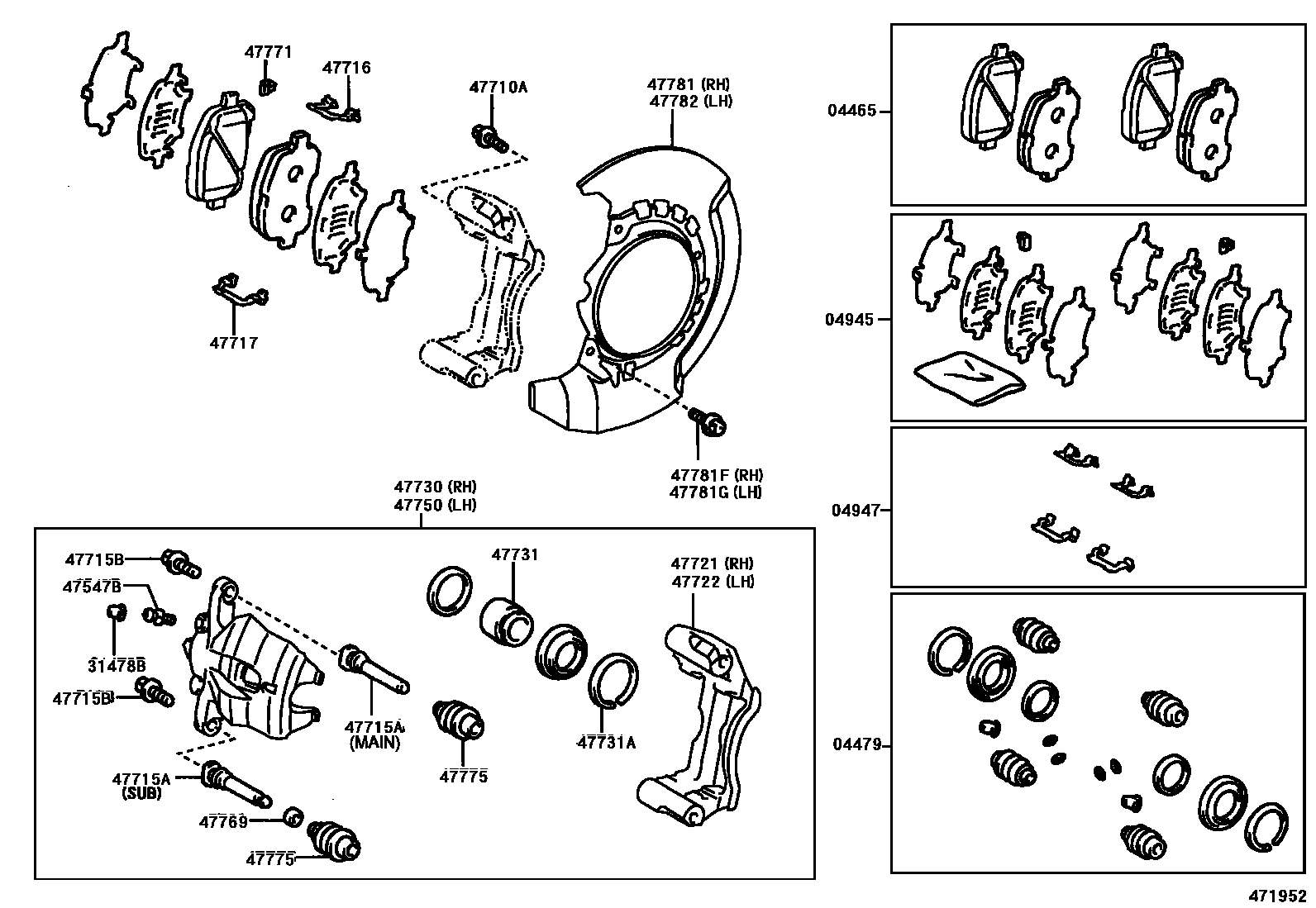

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK AK PA533
MARK AK PA533
MARK NBK PN532H
MARK PAGID 660,TYPE B:REFER TO ILLUSTRATION
MARK SUMITOMO PS558H,TYPE A:REFER TO ILLUSTRATION
04945SHIM KIT, ANTI SQUEAL, FRONT
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
04947FITTING KIT, DISC BRAKE, FRONT
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX29.5-23
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
MAIN PIN SIDE L=72
47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
TYPE B:REFER TO ILLUSTRATION
sub47721-33081
TYPE A:REFER TO ILLUSTRATION
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
TYPE B:REFER TO ILLUSTRATION
sub47721-33081
TYPE A:REFER TO ILLUSTRATION
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
47731PISTON, FRONT DISC BRAKE
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47750CYLINDER ASSY, DISC BRAKE, LH
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
47771PLATE, PAD WEAR INDICATOR, NO.1
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
TYPE B:REFER TO ILLUSTRATION
47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
24 parts on this diagram · 3 diagrams in section
