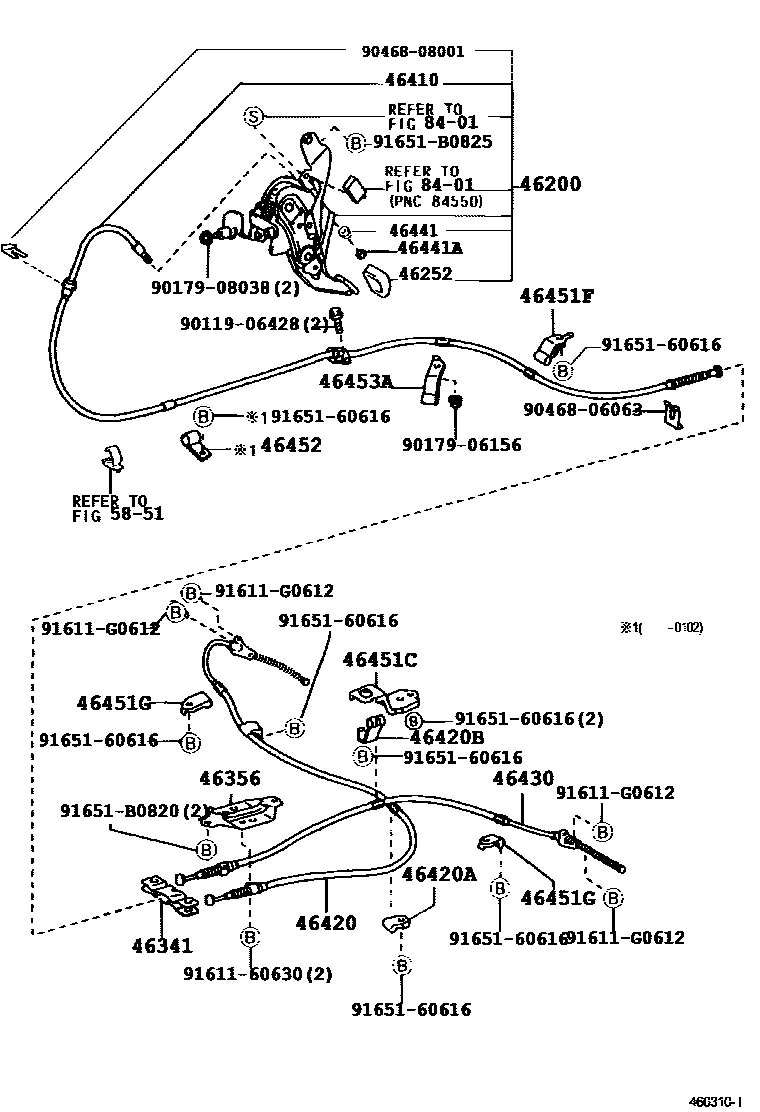

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-28031iACR30..ARL200002-200304

sub46210-28360

sub46410-28220

sub46441-12010

sub90468-08001

46252PAD, PARKING PEDAL

main46252-52010iACR30..ARL200002-200304

46341EQUALIZER, PARKING BRAKE

main46341-12020iACR30,CLR30200002-200304

46356BRACKET, EQUALIZER SUPPORT

main46356-28061iACR30,CLR30200002-200304

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28220iACR30..ARL200002-200304

main46410-28230iACR30,CLR30..RHD..EUR200002-200304

main46410-28240iACR30,CLR30..LHD200002-200304

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28440iACR30,CLR30200002-200405

sub46420-28441

main46420-28441iACR30,CLR30200405-200601

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01A77iACR30,CLR30200002-200304

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01B71iACR30,CLR30200002-200304

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28390iACR30,CLR30200002-200405

sub46430-28391

main46430-28391iACR30,CLR30200405-200601

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iACR30,CLR30200107-200304

main90179-06164iACR30,CLR30200002-200107

sub90179-06171

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iACR30,CLR30200002-200304

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-28100iACR30,CLR30200002-200304

46451FBRACKET, CABLE SUPPORT

main46451-28130iACR30,CLR30200002-200304

46451GBRACKET, CABLE SUPPORT

main46451-28140iACR30,CLR30200002-200304

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-28110iACR30..ARL200002-200102

46453ABRACKET, CABLE SUPPORT, NO.3

main46451-28120iACR30..ARL200002-200304

5851

8401

9011906428

main90119-06428

9017906156

main90179-06156

9017908038

main90179-08038

9046806063

main90468-06063

9046808001

main90468-08001

9161160630

main91611-60630

91611G0612

main91611-G0612

9165160616

main91651-60616

91651B0820

main91651-B0820

91651B0825

main91651-B0825

28 parts on this diagram · 3 diagrams in section
