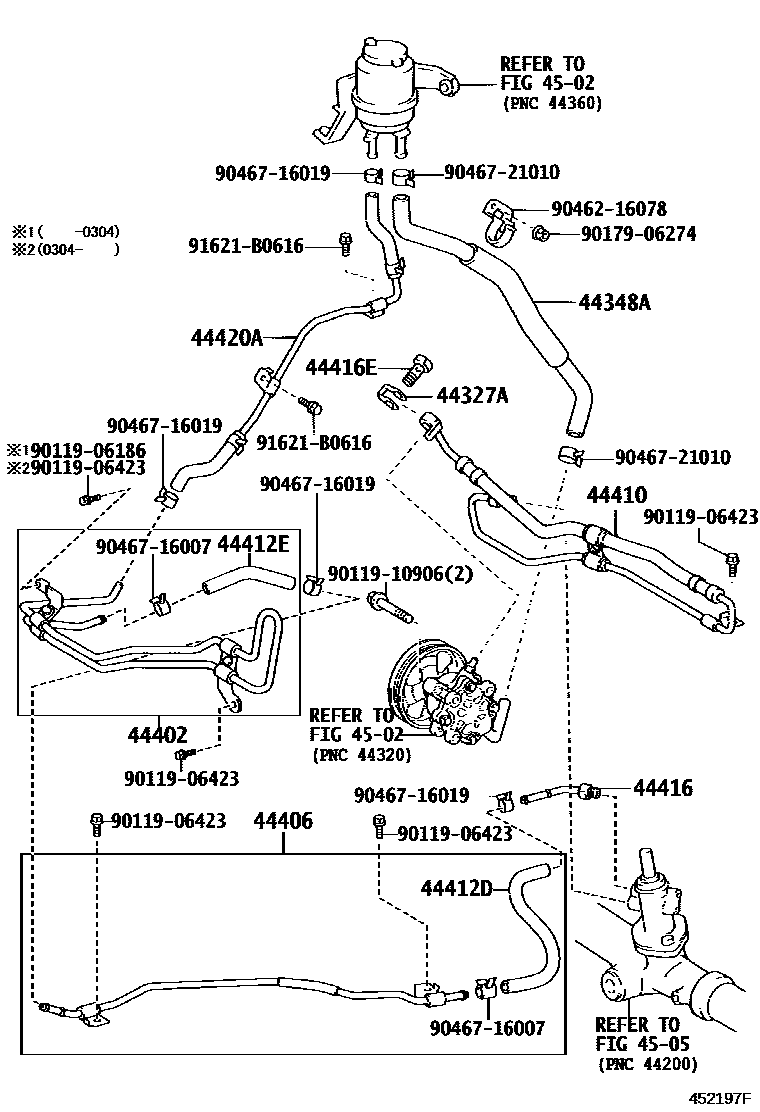

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iACR30,CLR30200002-200112

main44327-30030iACR30,CLR30200112-200404

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-28240iACR30200002-200404

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-28010iACR30,CLR30200002-200304

sub44402-28011

main44402-28030iACR30,CLR30..08S..MTM200304-200411

sub44402-28031

main44402-28031iACR30,CLR30200412

44406TUBE SUB-ASSY, RETURN

main44406-28300iACR30,CLR30..RHD200002-200411

sub44406-28301

main44406-28301iCLR30..RHD200412

main44406-28310iACR30..LHD200002-200304

main44406-28330iCLR30..LHD200102-200404

main44406-58010iACR30..RHD..07S;ACR30..RHD..08S..ATM200304-200411

sub44406-58011

main44406-58011iACR30..RHD200412

44410TUBE ASSY, PRESSURE FEED

main44410-28460iACR30..RHD200002-200304

sub44410-58021

main44410-28470iCLR30..RHD..08S200102-200404

main44410-28480iACR30..LHD200002-200304

main44410-28490iCLR30..LHD..08S200102-200404

main44410-58021iACR30..RHD..07S;ACR30..RHD..08S..ATM200304-200404

44412HOSE, RETURN

main44412-28350iACR30..LHD200002-200601

44412DHOSE, RETURN, NO.1

main44412-28340iACR30..LHD200002-200601

main44412-28410iCLR30..LHD200102-200601

main44412-58020iACR30,CLR30..RHD200002-200601

44412EHOSE, RETURN, NO.2

main44412-28460iACR30..DX..GCC;CLR30..07S,08S;CLR30..LHD..06S;ACR30..LHD..(06S,07S);ACR30..RHD..(07S,08S)200002-200601

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26080iACR30,CLR30..LHD200002-200510

main44416-28370iACR30,CLR30..RHD200002-200304

main44416-60370iACR30,CLR30..LHD200511

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iACR30,CLR30..08S..MTM200002-200404

44420ATUBE ASSY, RETURN

main44420-28110iACR30200002-200404

main44420-28120iCLR30200102-200404

4502

4505

9011906186

main90119-06186

9011906423

main90119-06423

9011910906

main90119-10906

9017906274

main90179-06274

9046216078

main90462-16078

9046716007

main90467-16007

9046716019

main90467-16019

9046721010

main90467-21010

91621B0616

main91621-B0616

22 parts on this diagram · 4 diagrams in section
