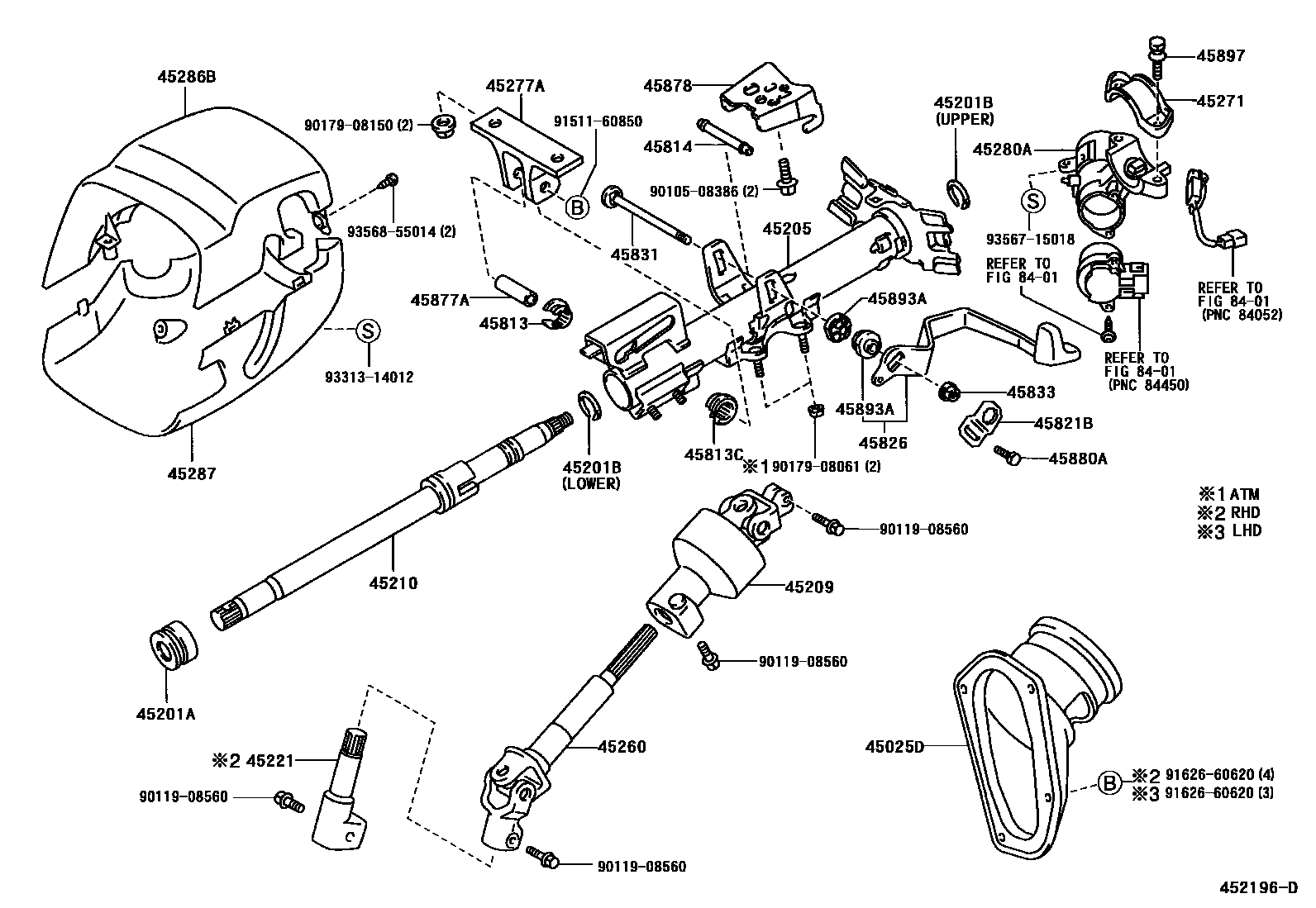

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LOWER
T=1.20,UPPER
45205TUBE SUB-ASSY, STEERING COLUMN
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45221SHAFT, STEERING INTERMEDIATE
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45277ASUPPORT, TILT STEERING
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
45813COLLAR, TILT STEERING SUPPORT, NO.1
OD=24
45813CCOLLAR, TILT STEERING SUPPORT, NO.1
45814COLLAR, TILT STEERING SUPPORT, NO.2
OD=8
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45877ASPACER, STEERING COLUMN BRACKET
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45880ABOLT(FOR STEERING TILT LEVER)
45893ASTOPPER, TILT STEERING PAWL
45897BOLT, STEERING LOCK SET
8401
9010508386
main90105-08386
9011908560
main90119-08560
9017908061
main90179-08061
9017908150
main90179-08150
9151160850
main91511-60850
9162660620
main91626-60620
9331314012
main93313-14012
9356715018
main93567-15018
9356855014
main93568-55014
35 parts on this diagram · 2 diagrams in section
