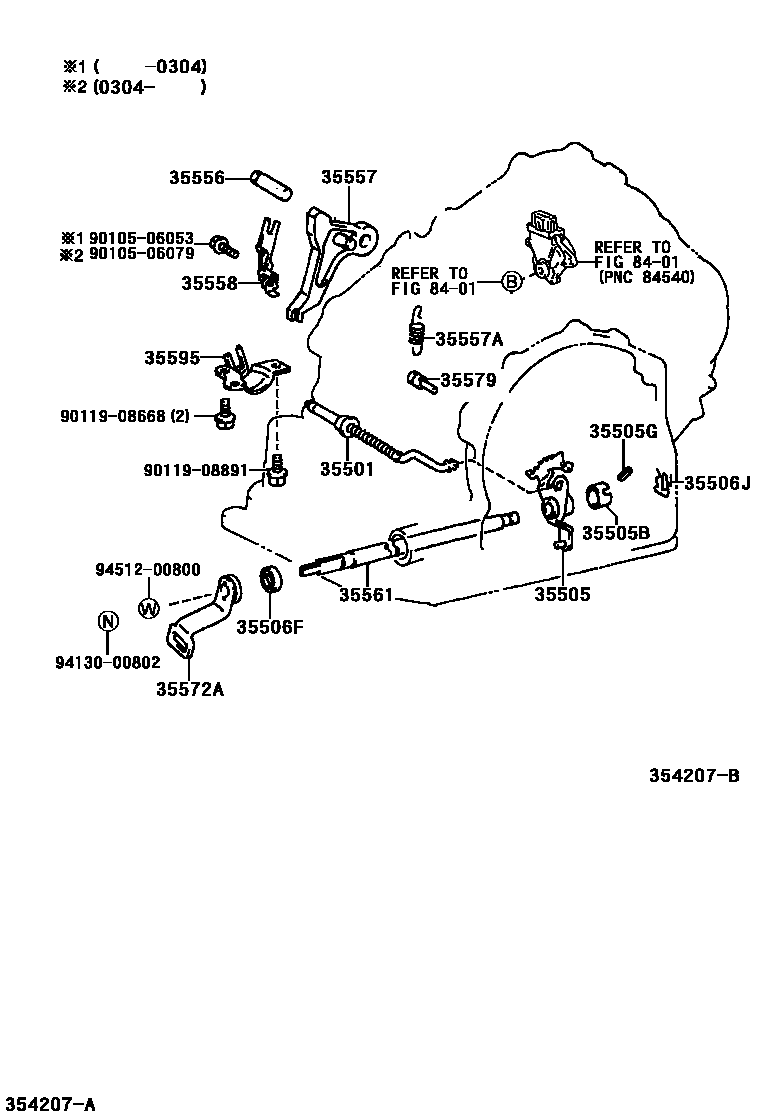

THROTTLE LINK & VALVE LEVER (ATM)

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iACR30..ATM200002-200304

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-32020iACR30..ATM200002-200304

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iACR30..ATM200002-200304

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iACR30..ATM200002-200304

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iACR30..ATM200002-200601

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iACR30..ATM200002-200304

35556SHAFT, PARKING LOCK PAWL

main35556-28020iACR30..ATM200002-200304

main35556-32030iACR30..ATM200304

35557PAWL, PARKING LOCK

main35557-28020iACR30..ATM200002-200304

sub35590-32010

main35590-32010iACR30..ATM200304-200601

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iACR30..ATM200002-200304

35558CLAMP, PAWL SHAFT

main35558-28020iACR30..ATM200002-200304

main35558-32010iACR30..ATM200304

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iACR30..ATM200002-200304

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-28100iACR30..ATM200002-200304

sub35572-48010

main35572-48010iACR30..ATM200304-200601

35579PIN, PARKING LOCK PAWL

main35594-21010iACR30..ATM200304

main35594-28010iACR30..ATM200002-200304

35595BRACKET, PARKING LOCK PAWL

main35595-21010iACR30..ATM200002-200304

8401

9010506053

main90105-06053

9010506079

main90105-06079

9011908668

main90119-08668

9011908891

main90119-08891

9413000802

main94130-00802

9451200800

main94512-00800

21 parts on this diagram · 1 diagram in section
