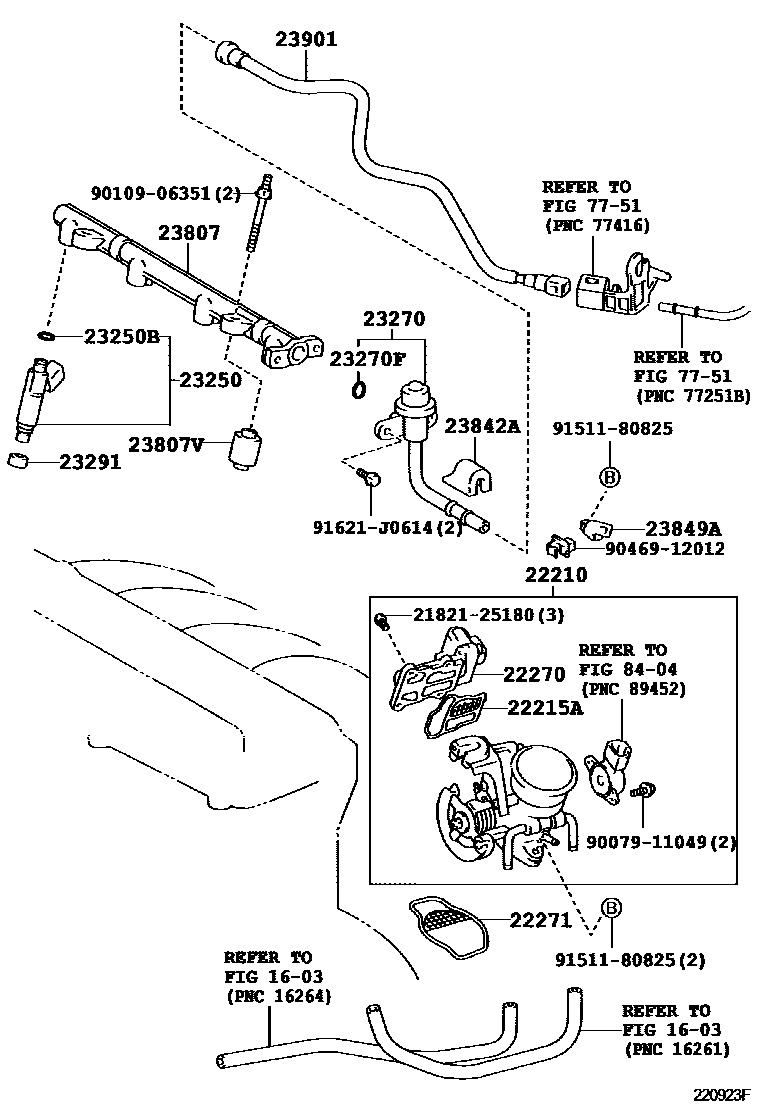

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603

22210BODY ASSY, THROTTLE

main22210-28040i2AZFE..ACR30..ATM¥90,500200002-200304

sub22210-28100¥57,100

main22210-28050i2AZFE..ACR30..MTM¥90,500200002-200304

sub22210-28130¥57,100

22215AGASKET, IDLE SPEED CONTROL VALVE

main22215-28040i2AZFE..ACR30¥540200002-200005

sub22215-28041¥540

main22215-28041i2AZFE..ACR30¥540200005-200108

sub22215-28042¥550

main22215-28042i2AZFE..ACR30¥550200108-200304

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-28010i2AZFE..ACR30¥17,300200002-200304

22271GASKET, THROTTLE BODY

main22271-28020i2AZFE..ACR30¥760200002-200404

23250INJECTOR ASSY, FUEL

main23209-28020i2AZFE..ACR30¥20,100200002-200304

main23209-28080i2AZFE..ACR30¥16,800200304-200601

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i2AZFE..ACR30¥190200002-200601

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28020i2AZFE..ACR30¥9,100200002-200601

sub23270-28021¥9,100

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2AZFE..ACR30¥140200002-200601

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i2AZFE..ACR30¥340200002-200601

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-28030i2AZFE..ACR30¥9,400200002-200312

sub23814-28031¥9,400

main23814-28031i2AZFE..ACR30¥9,400200312-200601

sub23814-28060¥7,800

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053i2AZFE..ACR30¥180200002-200601

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i2AZFE..ACR30¥550200002-200304

23849ASUPPORT, FUEL PIPE

main23849-28010i2AZFE..ACR30¥320200002-200304

main23849-28030i2AZFE..ACR30¥360200304-200601

23901TUBE SUB-ASSY, FUEL

main23901-28010i2AZFE..ACR30¥6,600200002-200304

main23901-28190i2AZFE..ACR30¥7,200200304

7751

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180¥220

9007911049

main90079-11049¥120

9010906351

main90109-06351¥130

9046912012

main90469-12012¥210

9151180825

main91511-80825¥0

91621J0614

main91621-J0614¥110

23 parts on this diagram · 3 diagrams in section
