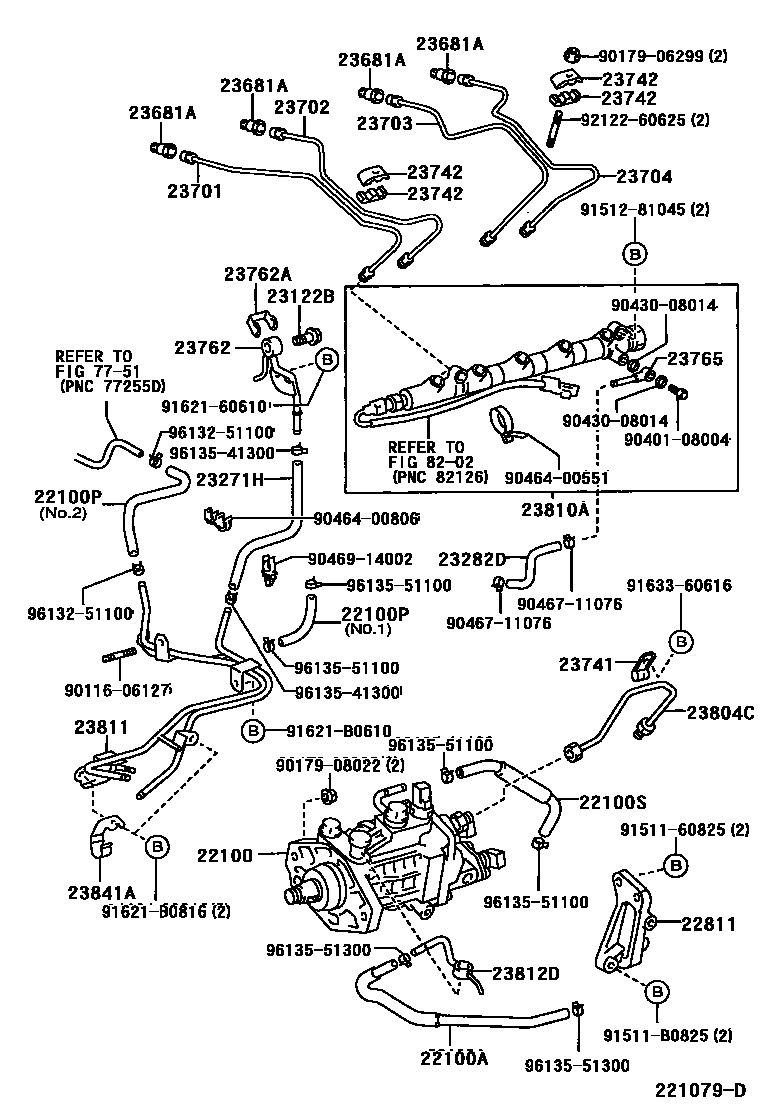

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-27010i1CDFTV..CLR30200102-200404

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23273-27010i1CDFTV..CLR30..06S,07S200102-200404

22100PHOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)

main95333-06020i1CDFTV..CLR30200102-200404

NO.1

sub95337-06020

main95333-06040i1CDFTV..CLR30200102-200304

NO.2

main95333-08030i1CDFTV..CLR30..08S200304-200404

NO.2

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23274-27010i1CDFTV..CLR30200102-200404

22811STAY, INJECTION PUMP, NO.1

main22811-27010i1CDFTV..CLR30200102-200404

23122BVALVE, CHECK

main23122-27010i1CDFTV..CLR30200102-200110

sub23769-30010

main23769-30010i1CDFTV..CLR30..08S200110-200404

23271HHOSE, FUEL, NO.1

main23271-27060i1CDFTV..CLR30..06S,07S200102-200404

23282DHOSE, FUEL, NO.4

main90445-11152i1CDFTV..CLR30..06S,07S200105-200404

main95333-04020i1CDFTV..CLR30200102-200105

23681ASEAL, NOZZLE HOLDER

main23681-17010i1CDFTV..CLR30..06S,07S200102-200404

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-27010i1CDFTV..CLR30200102-200209

sub23701-27011

main23701-27011i1CDFTV..CLR30200209-200404

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-27010i1CDFTV..CLR30200102-200209

sub23702-27011

main23702-27011i1CDFTV..CLR30200209-200404

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-27010i1CDFTV..CLR30200102-200209

sub23703-27011

main23703-27011i1CDFTV..CLR30200209-200404

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-27010i1CDFTV..CLR30200102-200209

sub23704-27011

main23704-27011i1CDFTV..CLR30200209-200404

23741CLAMP, INJECTION PIPE, NO.1

main23741-27010i1CDFTV..CLR30200102-200404

23742CLAMP, INJECTION PIPE, NO.2

main23742-27010i1CDFTV..CLR30200102-200404

23762PIPE, NOZZLE LEAKAGE, NO.2

main23762-27020i1CDFTV..CLR30200102-200404

23762AGASKET, NOZZLE LEAKAGE PIPE NO.2

main90904-30012i1CDFTV..CLR30200102-200404

23765PIPE, NOZZLE LEAKAGE, NO.5

main23765-27010i1CDFTV..CLR30200102-200404

23804CPIPE SUB-ASSY, FUEL INLET

main23804-27010i1CDFTV..CLR30200102-200209

sub23804-27011

main23804-27011i1CDFTV..CLR30200209-200404

23810ARAIL ASSY, COMMON

main23810-27020i1CDFTV..CLR30200102-200109

sub23810-27021

main23810-27021i1CDFTV..CLR30200109-200404

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-27020i1CDFTV..CLR30200102-200202

sub23811-27021

main23811-27021i1CDFTV..CLR30200202-200404

23812DPIPE, FUEL, NO.2

main23812-27010i1CDFTV..CLR30200102-200404

23841ACLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)

main23841-27010i1CDFTV..CLR30200102-200404

7751

8202

9011606127

main90116-06127

9017906299

main90179-06299

9017908022

main90179-08022

9040108004

main90401-08004

9043008014

main90430-08014

9046400551

main90464-00551

9046400806

main90464-00806

9046711076

main90467-11076

9046914002

main90469-14002

9151160825

main91511-60825

91511B0825

main91511-B0825

9151281045

main91512-81045

9162160610

main91621-60610

91621B0610

main91621-B0610

91621B0816

main91621-B0816

9163360616

main91633-60616

9212260625

main92122-60625

9613251100

main96132-51100

9613541300

main96135-41300

9613551100

main96135-51100

9613551300

main96135-51300

46 parts on this diagram · 1 diagram in section
