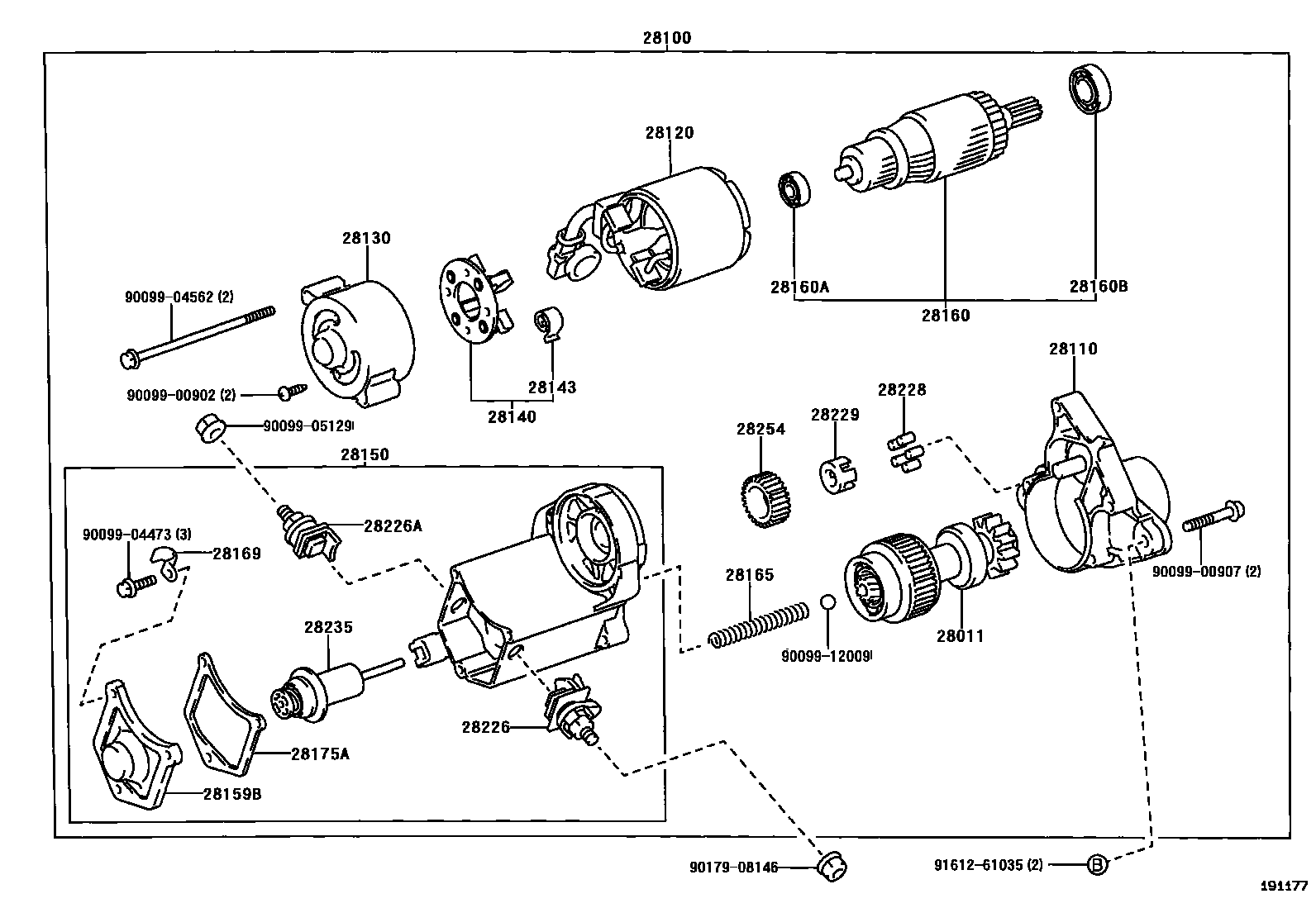

STARTER

0001 112V 1.0KW 0002 112V 1.4KW 0003 112V 2.2KW 0004 112V 1.2KW,1.4KW 0005 112V 2.2KW

28011CLUTCH SUB-ASSY, STARTER

main28011-64020i1CDFTV..CLR30..06S,07S200102-200404

main28011-74060i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28011-74070i2AZFE..ACR30..08S..MTM200304-200404

main28011-74070i2AZFE..ACR30200002-200304

12V 1.4KW

28100STARTER ASSY

main28100-28020i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28100-64430i1CDFTV..CLR30..08S200102-200404

12V 2.2KW

main28100-74260i2AZFE..ACR30..08S..MTM200002-200405

12V 1.4KW

main28100-74270i2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR)200304-200404

12V 1.2KW

sub28100-74260

28110HOUSING ASSY, STARTER DRIVE

main28110-74270i2AZFE..ACR30200002-200304

12V 1.4KW

main28110-74300i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28115-64430i1CDFTV..CLR30200102-200304

28120YOKE ASSY, STARTER

main28120-16180i2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR)200304-200404

12V 1.2KW

main28120-26071i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28120-64040i1CDFTV..CLR30..08S200102-200404

main28120-66040i2AZFE..ACR30200002-200405

12V 1.4KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-74260i2AZFE..ACR30200002-200304

12V 1.4KW

main28130-74300i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-64040i1CDFTV..CLR30..08S200102-200404

main28140-74010i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28140-74070i2AZFE..ACR30..08S..MTM200002-200405

12V 1.4KW

main28140-74120i2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR)200304-200404

12V 1.2KW

28143SPRING, STARTER BRUSH

main90099-17112i2AZFE..ACR30200002-200304

28150SWITCH ASSY, MAGNET STARTER

main28150-28020i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28150-64430i1CDFTV..CLR30..08S200102-200404

main28150-74270i2AZFE..ACR30200002-200304

12V 1.4KW

main28150-74270i2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM200304-200404

28159BCOVER, MAGNET SWITCH

main28159-10040i1CDFTV..CLR30200102-200304

main28159-10040i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28159-55050i2AZFE..ACR30200002-200304

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-26071i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28160-64041i1CDFTV..CLR30..06S,07S200102-200404

main28160-74070i2AZFE..ACR30200002-200405

12V 1.4KW

main28160-76060i2AZFE..ACR30..08S..MTM200304-200404

12V 1.2KW

28160ABEARING, STARTER ARMATURE

main28253-45020i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28253-54070i1CDFTV..CLR30200102-200304

NO.1

main90099-10143i1CDFTV..CLR30200102-200304

NO.2

main90099-10196i2AZFE..ACR30200002-200304

12V 1.4KW

28160BBEARING, STARTER ARMATURE, NO.2

main90099-10113i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main90099-10197i2AZFE..ACR30200002-200304

12V 1.4KW

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i1CDFTV..CLR30200102-200304

main28165-74010i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28165-74070i2AZFE..ACR30200002-200304

12V 1.4KW

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i2AZFE..ACR30..ARL,EUR200002-200304

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i1CDFTV..CLR30200102-200304

main28175-10040i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28175-55050i2AZFE..ACR30200002-200304

12V 1.4KW

28226STARTER KIT, BATTERY TERMINAL

main28226-55050i2AZFE..ACR30200002-200304

12V 1.4KW

sub28226-64370

main28226-74300i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28226-74300i1CDFTV..CLR30200102-200304

28226ASTARTER KIT, MOTOR TERMINAL

main28226-72010i1CDFTV..CLR30200102-200304

main28226-72010i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28226-74070i2AZFE..ACR30200002-200304

12V 1.4KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i2AZFE..ACR30200002-200304

28229RETAINER, STARTER IDLE GEAR

main28229-26040i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28229-74070i2AZFE..ACR30200002-200304

12V 1.4KW

28235PLUNGER, MAGNET SWITCH

main28235-35080i1CDFTV..CLR30200102-200304

main28235-74060i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28235-74130i2AZFE..ACR30200002-200304

12V 1.4KW

28254PINION, STARTER IDLE GEAR

main28254-54070i2AZFE..ACR30..ARL,EUR200002-200304

12V 1.0KW

main28254-64040i1CDFTV..CLR30200102-200304

main28254-74070i2AZFE..ACR30200002-200304

12V 1.4KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904473

main90099-04473

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161261035

main91612-61035

29 parts on this diagram · 5 diagrams in section
