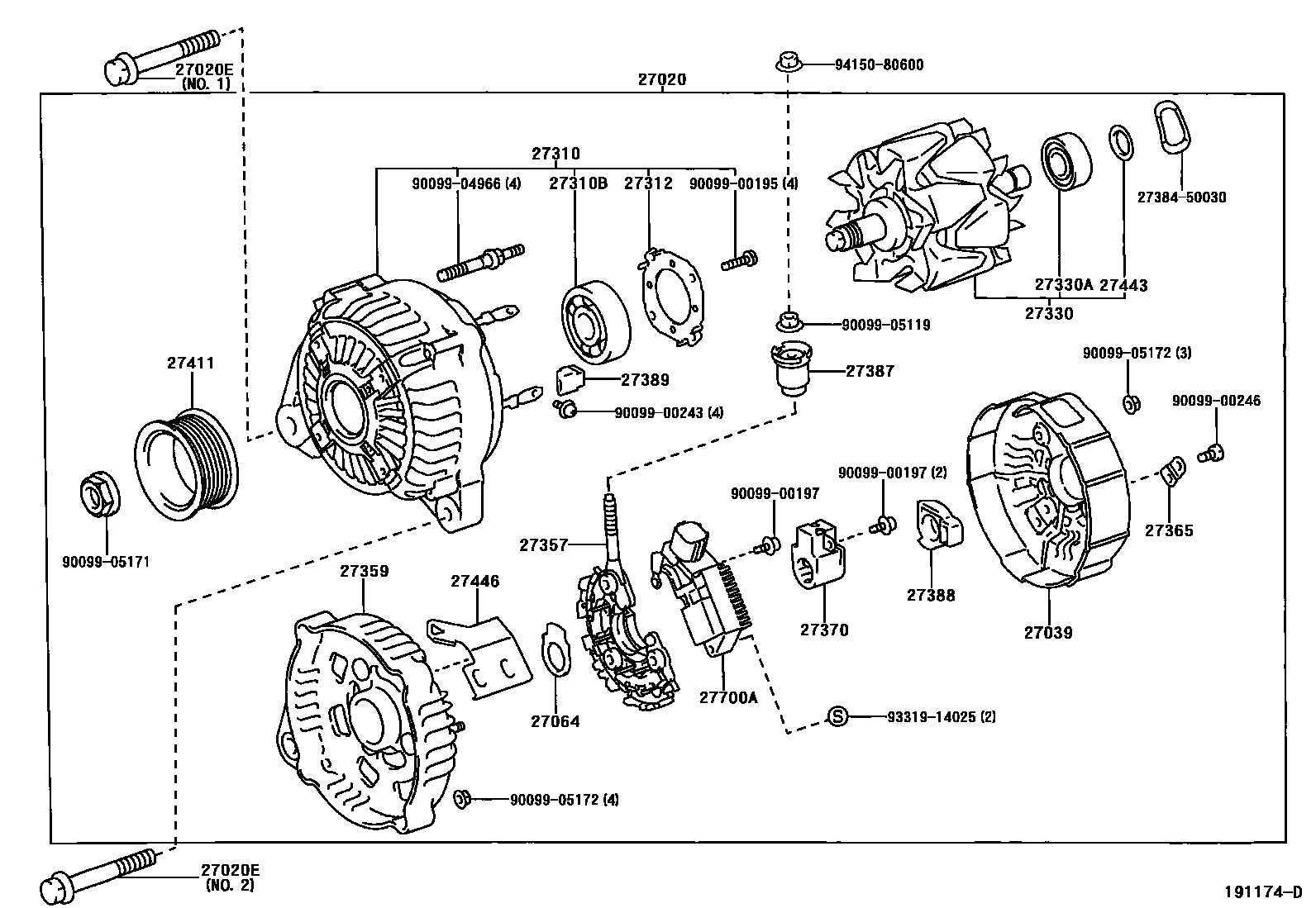

ALTERNATOR

0001 112V 100A 0002 112V 130A 0003 112V 100A

27020ALTERNATOR ASSY

main27060-27040i1CDFTV..CLR30200102-200404

12V 130A

main27060-28070i2AZFE..ACR30200002-200304

12V 100A

main27060-28260i2AZFE..ACR30..08S..MTM200304-200404

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90901-05004i1CDFTV..CLR30200102-200304

main91511-60840i2AZFE..ACR30200002-200304

NO.2

sub91511-J0840

main91511-J0840i2AZFE..ACR30200304-200510

NO.2

main91512-81085i2AZFE..ACR30200002-200304

NO.1

main91551-80840i2AZFE..ACR30200511

NO.2

27039COVER, ALTERNATOR REAR END

main27039-27010i2AZFE..ACR30200002-200101

sub27039-28060

main27039-27020i1CDFTV..CLR30200102-200601

main27039-27060i2AZFE..ACR30200304-200601

main27039-28060i2AZFE..ACR30200101-200304

27064SEAL, ALTERNATOR PLATE

main27064-20130i1CDFTV..CLR30200102-200601

NO.2

main27064-42010i2AZFE..ACR30200002-200304

main27064-42010i1CDFTV..CLR30200102-200601

NO.1

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-27020i1CDFTV..CLR30200102-200601

main27310-28060i2AZFE..ACR30200002-200304

main27310-28120i2AZFE..ACR30200304-200601

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i2AZFE,1CDFTV..ACR30,CLR30200102-200601

sub90099-10223

main90099-10219i2AZFE..ACR30200002-200304

27312PLATE, RETAINER

main27312-42010i2AZFE..ACR30200002-200304

main27312-72100i1CDFTV..CLR30200102-200601

27330ROTOR ASSY, ALTERNATOR

main27330-20070i2AZFE..ACR30200002-200304

main27330-20130i1CDFTV..CLR30200102-200601

sub27330-33090

main27330-30070i2AZFE..ACR30200304-200601

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i2AZFE,1CDFTV..ACR30,CLR30200002-200601

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-70450i2AZFE..ACR30200002-200304

27359FRAME, ALTERNATOR RECTIFIER END

main27359-28060i2AZFE..ACR30200002-200304

27365PLATE, TERMINAL

main27365-55080i2AZFE..ACR30200002-200304

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i1CDFTV..CLR30200102-200601

main27370-58460i2AZFE..ACR30200304-200601

main27370-75060i2AZFE..ACR30200002-200304

27387INSULATOR, TERMINAL

main27387-20130i1CDFTV..CLR30200102-200304

main27387-42021i2AZFE..ACR30200002-200304

27388COVER, ALTERNATOR BRUSH

main27388-42010i2AZFE..ACR30200002-200304

27389INSULATOR, TERMINAL

main27389-42010i2AZFE..ACR30200002-200304

27411PULLEY, ALTERNATOR

main27411-28060i2AZFE..ACR30200002-200404

27443COVER, ALTERNATOR BEARING

main27443-63020i2AZFE,1CDFTV..ACR30,CLR30200002-200601

27446CLIP, ALTERNATOR CORD

main27446-28060i2AZFE..ACR30200002-200304

main27446-28120i2AZFE..ACR30..08S..MTM200304-200404

27700AREGULATOR ASSY, GENERATOR

main27700-27070i2AZFE..ACR30200002-200304

2738450030WASHER

main27384-50030

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9331914025

main93319-14025

9415080600

main94150-80600

31 parts on this diagram · 3 diagrams in section
