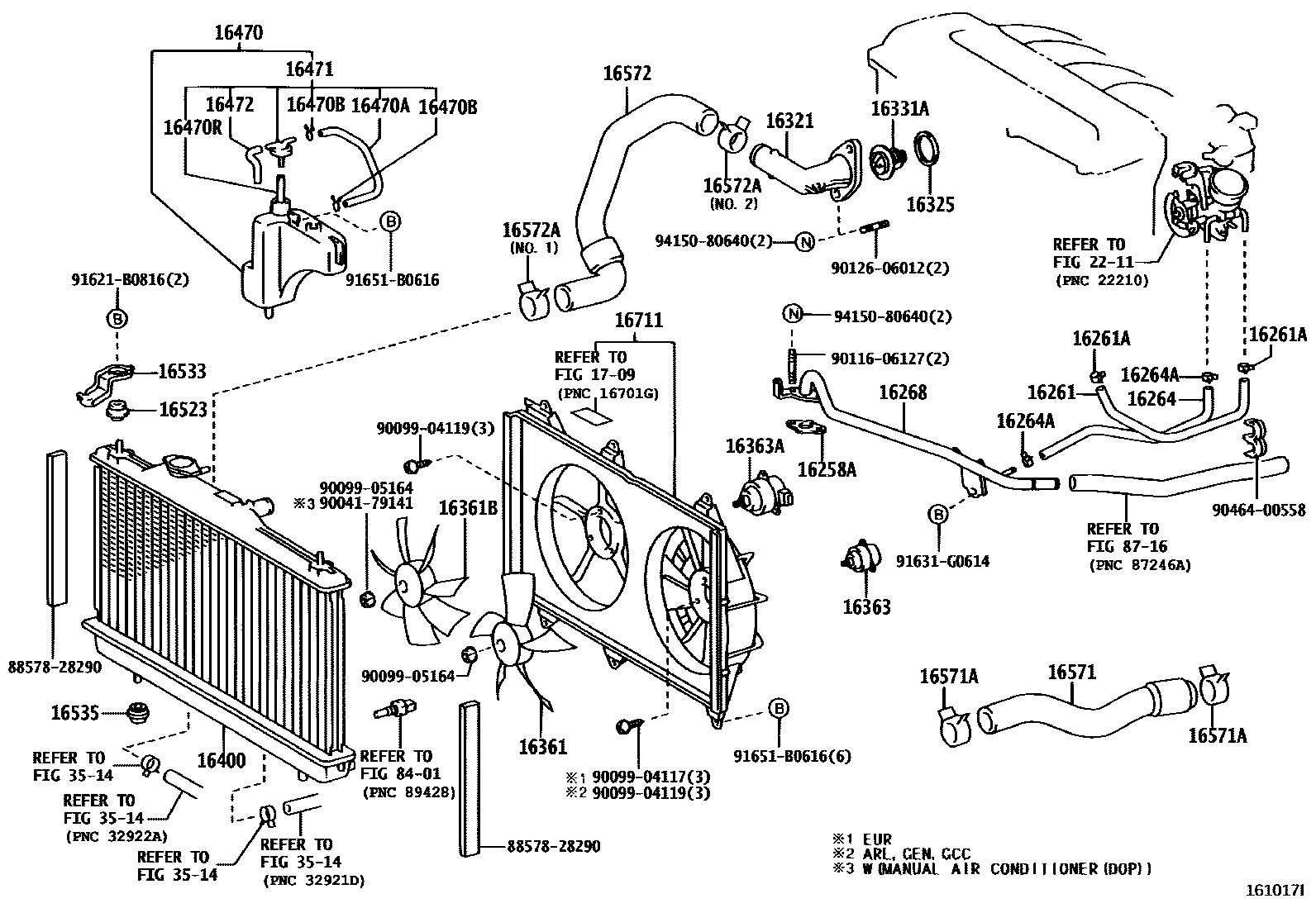

RADIATOR & WATER OUTLET

0001 1 0002 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1

16258AGASKET(FOR HEATER RETURN)

main16258-28010i2AZFE..ACR30200002-200308

sub16258-28030

main16258-28030i2AZFE..ACR30200308-200601

16261HOSE, WATER BY-PASS

main16261-27040i1CDFTV..CLR30..08S200102-200404

main16261-28020i2AZFE..ACR30200002-200304

main16261-28050i2AZFE..ACR30200304-200601

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13050i1CDFTV..CLR30200102-200204

sub96135-51300

main96135-41300i2AZFE..ACR30200002-200304

sub96135-51300

main96135-51300i2AZFE..ACR30200204-200601

16264HOSE, WATER BY-PASS, NO.2

main16264-27030i1CDFTV..CLR30..06S,07S200102-200404

main16264-28020i2AZFE..ACR30200002-200304

main16264-28060i2AZFE..ACR30200304-200601

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-21010i1CDFTV..CLR30..06S,07S200304-200404

main90467-22006i1CDFTV..CLR30200102-200304

sub90467-21010

main96135-41300i2AZFE..ACR30200002-200304

sub96135-51300

main96135-51300i2AZFE..ACR30200304-200601

16268PIPE, WATER BY-PASS, NO.1

main16268-27030i1CDFTV..CLR30..06S,07S200102-200404

main16268-28010i2AZFE..ACR30200002-200601

16321INLET, WATER

main16031-27010i1CDFTV..CLR30..06S,07S200102-200404

main16321-28010i2AZFE..ACR30200002-200601

16325GASKET, WATER INLET HOUSING, NO.1

main16325-27010i1CDFTV..CLR30..06S,07S200102-200404

main16325-28010i2AZFE..ACR30200308-200601

main16325-62010i2AZFE..ACR30200002-200307

16331ATHERMOSTAT

main90916-03084i2AZFE..ACR30200002-200409

*WAX 82-95

sub90916-03129

main90916-03123i1CDFTV..CLR30..08S200102-200404

main90916-03129i2AZFE..ACR30200409-200510

*WAX 82-95

main90916-03136i2AZFE..ACR30200510-200601

*WAX 82-95

16361FAN

main16361-21050i2AZFE..ACR30..ARL,GCC,GEN200401

main16361-23050i1CDFTV..CLR30200002-200404

main16361-28020i2AZFE..ACR30..EUR200002-200408

sub16361-28021

main16361-28021i2AZFE..ACR30..EUR200408

16361BFAN, NO.2

main16361-23040i2AZFE..ACR30..EUR200002-200201

sub16361-28100

main16361-28050i2AZFE..ACR30..ARL,GCC,GEN200002-200404

main16361-28100i2AZFE..ACR30..EUR200201-200404

main16361-28170i2AZFE..ACR30..ARL,GCC,GEN200401

16363MOTOR, COOLING FAN

main16363-28020i2AZFE..ACR30..EUR200002-200404

main16363-28030i1CDFTV..CLR30200002-200306

sub16363-28170

main16363-28170i1CDFTV..CLR30..06S,07S200304-200404

16363AMOTOR, COOLING FAN, NO.2

main16363-23020i2AZFE..ACR30..EUR200002-200304

main16363-23030i1CDFTV..CLR30200002-200306

sub16363-28160

main16363-28150i2AZFE..ACR30..08S..ATM..EUR;2AZFE..ACR30..(06S,07S)..EUR200304-200404

main16363-28160i1CDFTV..CLR30..06S,07S200304-200404

16400RADIATOR ASSY

main16400-27030i1CDFTV..CLR30200102-200601

main16400-28090i2AZFE..ACR30..ARL,GCC200002-200304

main16400-28100i2AZFE..ACR30..ATM..EUR200002-200304

sub16400-28120

main16400-28110i2AZFE..ACR30..MTM200002-200304

main16400-28120i2AZFE..ACR30..GEN200002-200304

main16400-28400i2AZFE..ACR30..ARL,GCC200304-200601

main16400-28410i2AZFE..ACR30..ATM..EUR200304-200601

sub16400-28431

main16400-28420i2AZFE..ACR30..MTM200304-200601

sub16400-28410

main16400-28430i2AZFE..ACR30..GEN200304-200410

sub16400-28431

main16400-28431i2AZFE..ACR30..GEN200411-200601

16470TANK ASSY, RADIATOR RESERVE

main16470-20050i2AZFE..ACR30200002-200304

main16470-27030i1CDFTV..CLR30200102-200404

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-20050i2AZFE..ACR30200002-200304

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2AZFE..ACR30200002-200304

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i2AZFE..ACR30200002-200304

*H,L=215

16471CAP SUB-ASSY, RESERVE TANK

main16405-20030i2AZFE..ACR30200002-200304

16472HOSE, BREATHER

main85338-74140i2AZFE..ACR30200002-200304

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-74010i2AZFE..ACR30200002-200404

16533SUPPORT, RADIATOR, UPPER

main16533-20020i2AZFE..ACR30200002-200007

sub16533-20021

main16533-20021i2AZFE..ACR30200007-200404

16535SUPPORT, RADIATOR, LOWER

main16535-74210i2AZFE..ACR30200002-200404

16571HOSE, RADIATOR, INLET

main16571-27040i1CDFTV..CLR30..08S200102-200404

main16571-28050i2AZFE..ACR30200002-200304

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-41001i1CDFTV..CLR30200102-200204

sub90467-41002

main90466-41007i1CDFTV..CLR30..06S,07S200209-200404

main90467-37005i2AZFE..ACR30200204-200304

main90467-37008i2AZFE..ACR30200002-200204

sub90467-37005

main90467-41002i1CDFTV..CLR30200204-200209

sub90466-41008

16572HOSE, RADIATOR, OUTLET

main16572-27030i1CDFTV..CLR30..08S200102-200404

main16572-28020i2AZFE..ACR30200002-200305

sub16572-28200

main16572-28200i2AZFE..ACR30200305

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-37002i2AZFE..ACR30200302-200304

NO.1

main90466-41001i1CDFTV..CLR30200102-200204

sub90467-41002

main90466-41007i1CDFTV..CLR30..06S,07S200209-200404

main90467-37005i2AZFE..ACR30200302-200304

NO.2

main90467-37005i2AZFE..ACR30200204-200302

NO.1 & NO.2

main90467-37008i2AZFE..ACR30200002-200204

sub90467-37005

main90467-41002i1CDFTV..CLR30200204-200209

sub90466-41008

16711SHROUD, FAN

main16711-27100i1CDFTV..CLR30..08S200102-200404

main16711-28100i2AZFE..ACR30..08S..ATM..EUR;2AZFE..ACR30..(06S,07S)..EUR200002-200404

main16711-28110i2AZFE..ACR30..ARL,GCC200002-200304

main16711-28120i2AZFE..ACR30..GEN200002-200411

sub16711-28121

main16711-28121i2AZFE..ACR30..GEN200411

1709

2211

3514

8401

8716

8857828290PAKING, COOLER AIR DUCT

main88578-28290

9004179141

main90041-79141

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

9011606127

main90116-06127

9012606012

main90126-06012

9046400558

main90464-00558

91621B0816

main91621-B0816

91631G0614

main91631-G0614

91651B0616

main91651-B0616

9415080640

main94150-80640

45 parts on this diagram · 8 diagrams in section
