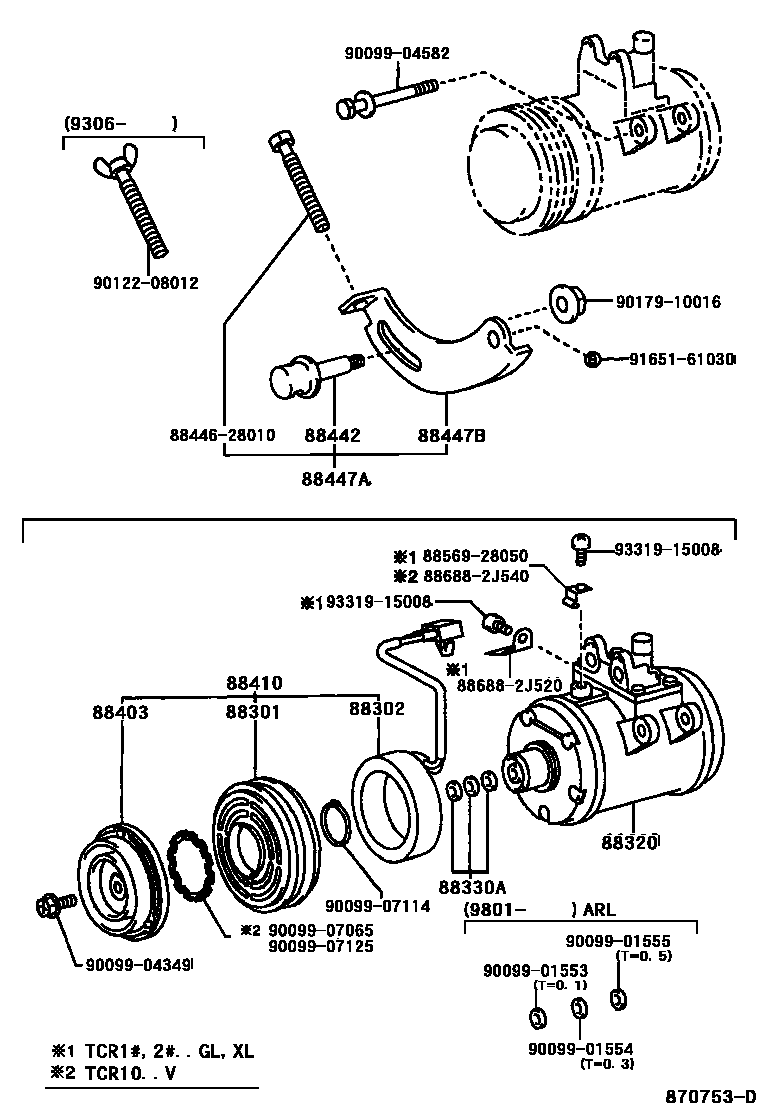

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14130iTCR1#,2#199005-199912

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iTCR10..V199507-199708

sub88411-2A030

main88411-2A030iTCR10..V199708-199912

main88411-95D01iTCR11..W;TCR10,2#..ARL,GEN,W199005-199912

88320COMPRESSOR ASSY, COOLER

main88320-28160iTCR1#,2#199005-199104

SINGLE TYPE---DEALER OPT

main88320-28160iTCR1#,2#199104-199308

main88320-28200iTCR1#,2#..ARL,GEN,W199308-199912

main88320-28260iTCR10..V199507-199912

main88320-95D00iTCR1#,2#199005-199104

SINGLE TYPE---MAKER OPT

sub88320-28160

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iTCR10,2#;TCR11..W199005-199912

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iTCR1#,2#199005-199308

main88403-30290iTCR10,2#;TCR11..W199308-199912

88410CLUTCH ASSY, MAGNET

main88410-28100iTCR1#,2#..ARL,GEN,W199308-199912

main88410-28150iTCR10..V199507-199912

main88410-95D00iTCR1#,2#199005-199308

sub88410-28100

88442SHAFT, IDLE PULLEY

main88442-28010iTCR1#,2#..ARL,W199702-199912

88447APLATE, BELT ADJUST

main88447-95D00iTCR11;TCR10,2#..LHD199005-199912

sub88447-28010

sub88442-28010

sub88446-28010

88447BPLATE, VELT ADJUST

main88447-28010iTCR1#,2#..ARL,W199005-199912

8844628010BOLT, IDLE PULLEY

main88446-28010

8856928050CLAMP (FOR COOLER RELAY)

main88569-28050

886882J520BRACKET, COOLER DIAPHRAGM

main88688-2J520

886882J540BRACKET, COOLER DIAPHRAGM

main88688-2J540

9009901553

main90099-01553

9009901554

main90099-01554

9009901555

main90099-01555

9009904349

main90099-04349

9009904582

main90099-04582

9009907065

main90099-07065

9009907114

main90099-07114

9009907125

main90099-07125

9012208012

main90122-08012

9017910016

main90179-10016

9165161030

main91651-61030

9331915008

main93319-15008

25 parts on this diagram · 2 diagrams in section
