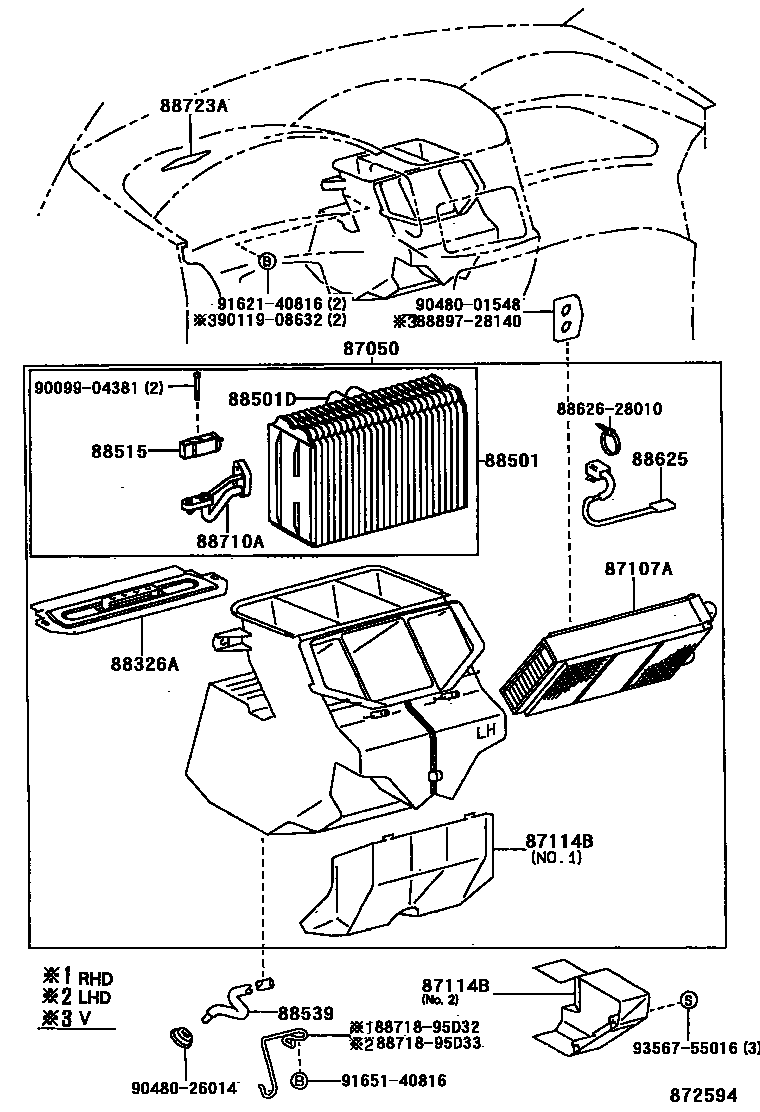

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
SINGLE TYPE OR ISRAEL SPEC & DUAL TYPE
SINGLE TYPE
87107AUNIT SUB-ASSY, HEATER RADIATOR
sub87107-28150
SINGLE TYPE OR ISRAEL SPEC & DUAL TYPE
SINGLE TYPE
sub87107-95D05
87114BCOVER, HEATER
NO.3
NO.2
NO.2
NO.1
NO.1
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501DEVAPORATOR SUB-ASSY, COOLER, NO.2
88515VALVE, COOLER EXPANSION
SINGLE TYPE---MAKER OPT OR SINGLE TYPE---DEALER OPT
sub88515-33010
sub88515-22240
REAR
SINGLE TYPE---MAKER OPT
88539HOSE, COOLER UNIT DRAIN, NO.1
SINGLE TYPE
SINGLE TYPE---MAKER OPT
SINGLE TYPE---MAKER OPT OR ISRAEL SPEC & DUALTYPE;ISRAEL SPEC & DUAL TYPE & W(SMALL COOL BOX)
SINGLE TYPE---MAKER OPT OR ISRAEL SPEC & SINGLE & DUAL
MAKER OPT OR ISRAEL SPEC & SINGLE & DUAL
88625THERMISTOR, COOLER, NO.1
SINGLE TYPE---DEALER OPT
SINGLE TYPE---MAKER OPT
88710ATUBE ASSY, AIR CONDITIONER
88723ALABEL, COOLER SERVICE CAUTION
SINGLE TYPE OR DUAL TYPE---MAKER OPT OR ISRAEL SPEC & SINGLE & DUAL
SINGLE TYPE OR ISRAEL SPEC & SINGLE & DUAL
ISRAEL SPEC & SINGLE SPEC
SINGLE TYPE
MAKER OPT OR DEALER OPT
W(TWIN *SNR) & DUAL TYPE
DUAL TYPE(AUTO)
DUAL TYPE---MAKER OPT
ISRAEL SPEC & DUAL TYPE
W(TWIN *SNR) & DUAL TYPE
ISRAEL SPEC & W(TWIN *SNR) & DUAL TYPE OR ISRAEL SPEC & DUAL TYPE
*FRG & SINGLE TYPE
8862628010CASE, BLOWER DRIVE SHAFT BEARING
main88626-28010
8871895D32PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-95D32
8871895D33PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-95D33
8889728140VALVE, COOLER MAGNET
main88897-28140
9009904381
main90099-04381
9011908632
main90119-08632
9048001548
main90480-01548
9048026014
main90480-26014
9162140816
main91621-40816
9165140816
main91651-40816
9356755016
main93567-55016
22 parts on this diagram · 14 diagrams in section
