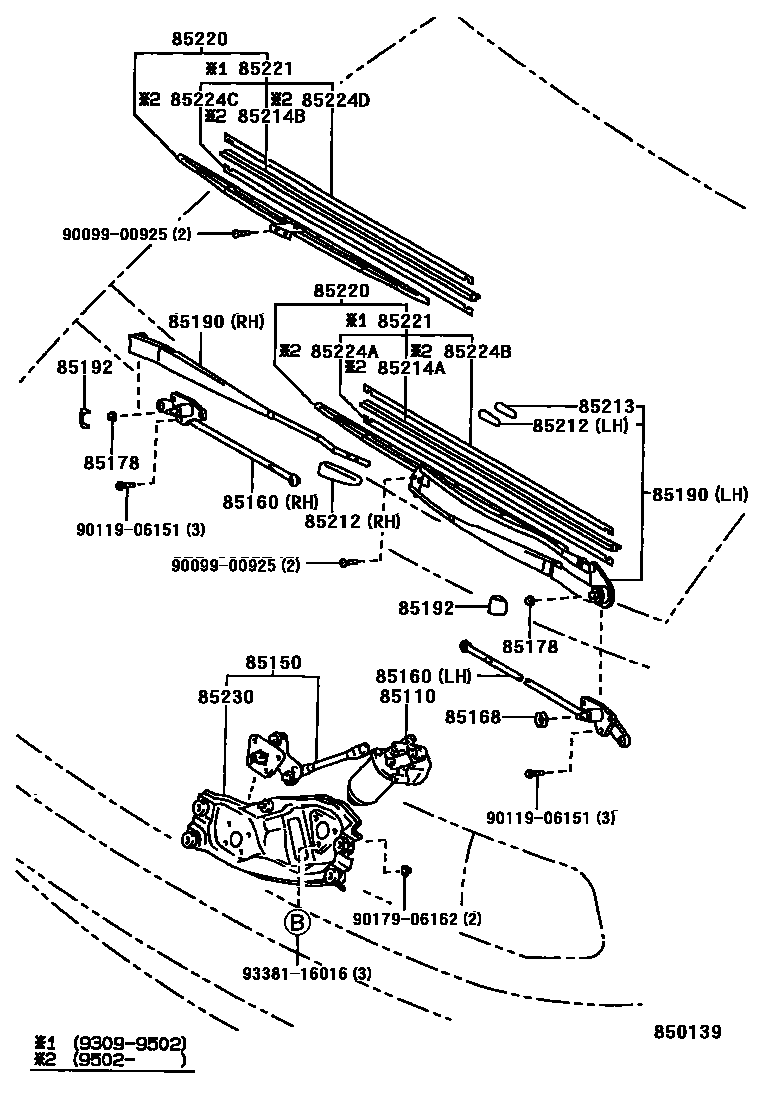

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28110iTCR1#,2#..ARL199106-199912

main85110-28120iTCR11..RHD..W199106-199912

main85110-28130iTCR1#,2#..LHD199106-199912

main85110-95D03iTCR1#,2#..ARL199005-199106

sub85110-28110

main85110-95D04iTCR11..RHD..W199005-199106

sub85110-28120

main85110-95D05iTCR1#,2#..LHD199005-199106

sub85110-28130

85150COVER, WINDSHIELD WIPER MOTOR GEAR END

main85150-28120iTCR1#..RHD199308-199912

main85150-28130iTCR1#,2#..LHD199308-199912

main85150-95D00iTCR1#,2#..LHD199005-199308

main85150-95D01iTCR1#,2#..RHD199005-199308

85160LINK ASSY, WINDSHIELD WIPER

main85150-28060iTCR1#,2#..LHD199308-199912

LH

main85150-28070iTCR1#,2#..LHD199308-199912

RH

main85150-28080iTCR1#..RHD199308-199912

LH

main85150-28090iTCR1#..RHD199308-199912

RH

main85160-95D00iTCR1#,2#..LHD199005-199308

LH

sub85150-28060

main85160-95D01iTCR1#,2#..LHD199005-199308

RH

main85160-95D03iTCR1#,2#..RHD199005-199308

RH

sub85150-28090

main85160-95D04iTCR1#,2#..RHD199005-199308

LH

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95J00iTCR1#,2#199005-199308

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08026iTCR1#,2#199005-199108

main90179-08209iTCR1#,2#199108-199912

85190ARM ASSY, WINDSHIELD WIPER

main85190-95D00iTCR1#,2#..LHD199005-199308

RH

main85190-95D02iTCR1#,2#..ARL199005-199308

RH

main85190-95D04iTCR11..RHD..W199005-199308

RH

main85210-95D01iTCR1#,2#..LHD199005-199308

LH

main85210-95D02iTCR1#,2#..ARL199005-199308

LH

main85210-95D03iTCR11..RHD..W199005-199308

LH

main85211-28070iTCR1#,2#..LHD199308-199701

RH

sub85211-28071

main85211-28071iTCR1#,2#..LHD199701-199912

RH

main85211-28080iTCR1#..ARL199308-199912

RH

main85211-28090iTCR11..RHD..W199308-199912

RH

main85221-28040iTCR10..GEN199308-199701

LH

sub85221-28041

main85221-28041iTCR10..GEN199701-199912

LH

main85221-28050iTCR1#,2#..LHD..(V,W)199308-199912

LH

main85221-28060iTCR1#..RHD199308-199912

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-95D00iTCR1#,2#199005-199308

main85292-28010iTCR1#,2#199308-199912

85212COVER, WIPER ARM PIECE, NO.1

main85212-95D00iTCR1#,2#199005-199308

LH

main85212-95D01iTCR1#,2#..LHD199005-199308

RH

main85212-95D02iTCR1#,2#..RHD199005-199308

RH

85213COVER, WIPER ARM PIECE, NO.2

main85213-95D00iTCR1#,2#199005-199308

85214ARUBBER, WIPER, RH

main85214-28040iTCR1#..RHD199502-199912

main85214-28050iTCR1#..ARL199809-199912

sub85214-28040

main85214-28070iTCR1#,2#..LHD199502-199912

sub85214-28040

85214BRUBBER, WIPER, LH

main85214-28040iTCR1#..ARL199502-199809

main85214-28050iTCR1#..ARL199809-199912

sub85214-28040

main85214-28070iTCR1#,2#..GEN,V,W199502-199912

sub85214-28040

85220BLADE ASSY, WINDSHIELD WIPER

main85212-28090iTCR1#,2#..LHD199308-199701

RH

sub85212-28091

main85212-28091iTCR1#,2#..LHD199701-199912

RH

main85212-28100iTCR1#..ARL199308-199912

RH

main85212-28110iTCR11..RHD..W199308-199912

RH

sub85212-28100

main85220-95D02iTCR1#,2#..LHD199005-199308

RH

main85220-95D04iTCR1#,2#..ARL199005-199308

RH

main85220-95D05iTCR1#,2#..RHD199005-199308

LH

main85220-95D07iTCR1#,2#..LHD199005-199308

LH

main85220-95D08iTCR11..RHD..W199005-199308

RH

main85222-28070iTCR1#,2#..LHD199308-199701

LH

sub85222-28071

main85222-28071iTCR1#,2#..LHD199701-199912

LH

main85222-28080iTCR11..RHD..W199308-199912

LH

sub85222-28110

main85222-28110iTCR1#..ARL199809-199912

LH

85221BLADE, WINDSHIELD WIPER

main85213-28100iTCR1#,2#..LHD199701-199912

sub85214-28070

main85213-28100iTCR11..RHD..W199308-199502

RH

sub85214-28070

main85214-28040iTCR1#..ARL199308-199809

LH

main85221-95D00iTCR1#,2#199005-199308

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-28040iTCR1#,2#199502-199912

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-28050iTCR1#,2#199502-199912

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-28040iTCR1#,2#199502-199912

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-28050iTCR1#,2#199502-199912

85230BRACKET ASSY, WINDSHIELD WIPER

main85269-95D00iTCR1#,2#..LHD199005-199912

main85269-95D01iTCR1#,2#..RHD199005-199912

9009900925

main90099-00925

9011906151

main90119-06151

9017906162

main90179-06162

9338116016

main93381-16016

22 parts on this diagram · 1 diagram in section
