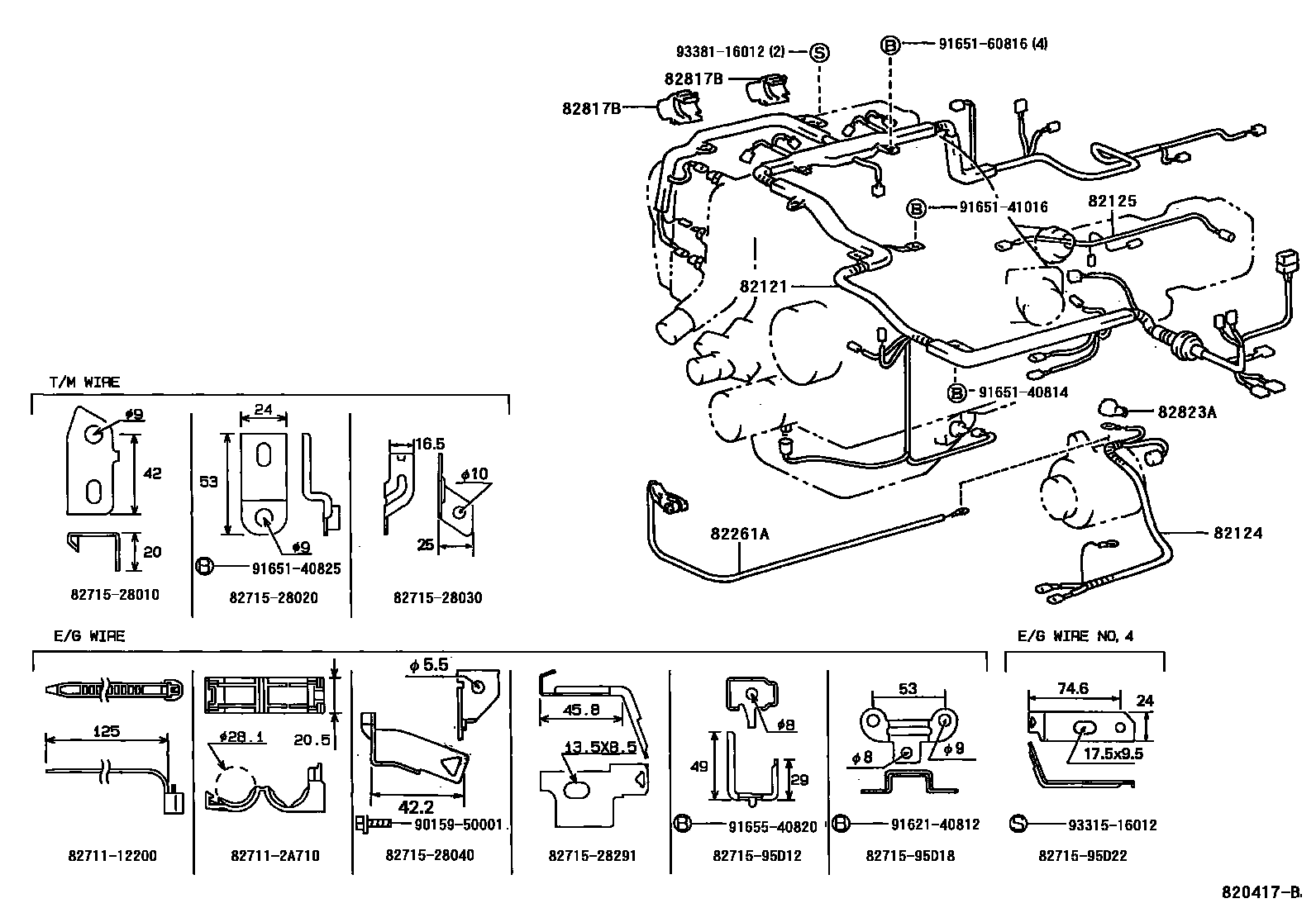

WIRING & CLAMP

0001 1ENGINE WIRE 0002 1ENGINE WIRE 0003 1COWL WIRE 0004 1COWL WIRE 0005 1COWL WIRE (PNC 82131) SPEC LI0006 1COWL WIRE (PNC 82131) SPEC LI0007 1COWL WIRE (PNC 82131) SPEC LI0008 1COWL WIRE (PNC 82131) SPEC LI0009 1COWL WIRE (PNC 82131) SPEC LI0010 1COWL WIRE (PNC 82131) SPEC LI0011 1COWL WIRE (PNC 82131) SPEC LI0012 1COWL WIRE (PNC 82131) SPEC LI0013 1COWL WIRE (PNC 82131) SPEC LI0014 1COWL WIRE (PNC 82131) SPEC LI0015 1COWL WIRE (PNC 82131) SPEC LI0016 1COWL WIRE (PNC 82131) SPEC LI0017 1COWL WIRE (PNC 32131) SPEC LI0018 1CLAMP 0019 1ROOF & FLOOR WIRE 0020 1DIODE 0021 1CABLE BOND 0022 1CABLE BOND

82121WIRE, ENGINE

main82121-28060iTCR1#,2#199011-199108

main82121-28120iTCR1#,2#199108-199111

main82121-28121iTCR1#,2#199111-199205

main82121-28122iTCR1#,2#199205-199308

main82121-28123iTCR1#,2#..ARL,W199308-199401

main82121-28124iTCR1#,2#..ARL,W199401-199608

main82121-28125iTCR1#,2#..ARL,W199608-199801

VACUUM HOSE L=1090

main82121-28126iTCR1#,2#..ARL,W199801-199912

VACUUM HOSE L=1050

main82121-28280iTCR10..GEN199308-199401

GENERAL EXPORT LEADED

main82121-28281iTCR11..RHD..MTM199401-199608

GENERAL EXPORT LEADED

main82121-28282iTCR10..LHD..ATM199608-199801

VACUUM HOSE L=1090

main82121-28282iTCR10..LHD..ATM199608-199801

VACUUM HOSE L=1090;GENERAL EXPORT LEADED

main82121-28283iTCR10..LHD..ATM;TCR11..RHD..MTM199801-199912

VACUUM HOSE L=1050;GENERAL EXPORT LEADED

main82121-95D02iTCR1#,2#199005-199011

82124WIRE, ENGINE, NO.4

main82124-28140iTCR1#,2#199108-199308

main82124-28141iTCR1#,2#199308-199608

main82124-28142iTCR1#,2#199608-199912

main82124-95D00iTCR1#,2#199005-199104

82125WIRE, TRANSMISSION

main82125-28020iTCR1#..MTM199005-199308

main82125-28030iTCR2#..MTM..(GL,XL)199005-199308

main82125-28040iTCR1#..ATM199005-199308

main82125-28050iTCR21..ATM199005-199308

main82125-28080iTCR1#..ATM199308-199912

main82125-28120iTCR1#..MTM199308-199912

main82125-28150iTCR2#199308-199912

82261AWIRE, ALTERNATOR

main82261-28010iTCR1#,2#199108-199401

sub82261-28011

main82261-28011iTCR1#,2#199401-199912

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-87013iTCR1#..LHD199005-199308

W(SEAT HEATER)

main82817-87013iTCR1#..ARL199005-199912

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-28230iTCR1#,2#199308-199912

82823CAP, TERMINAL, NO.1

main82823-95D00iTCR10..GEN199308-199912

82823ACAP, TERMINAL, NO.2

main82823-22050iTCR1#,2#199005-199912

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

827112A710WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A710

8271528010BRACKET,WIRING HARNESS CLAMP

main82715-28010

8271528020BRACKET,WIRING HARNESS CLAMP

main82715-28020

8271528030BRACKET,WIRING HARNESS CLAMP

main82715-28030

8271528040BRACKET,WIRING HARNESS CLAMP

main82715-28040

8271528291BRACKET,WIRING HARNESS CLAMP

main82715-28291

8271595D12BRACKET,WIRING HARNESS CLAMP

main82715-95D12

8271595D18BRACKET,WIRING HARNESS CLAMP

main82715-95D18

8271595D22BRACKET,WIRING HARNESS CLAMP

main82715-95D22

9015950001

main90159-50001

9162140812

main91621-40812

9165140814

main91651-40814

9165140825

main91651-40825

9165141016

main91651-41016

9165160816

main91651-60816

9165540820

main91655-40820

9331516012

main93315-16012

9338116012

main93381-16012

27 parts on this diagram · 22 diagrams in section
