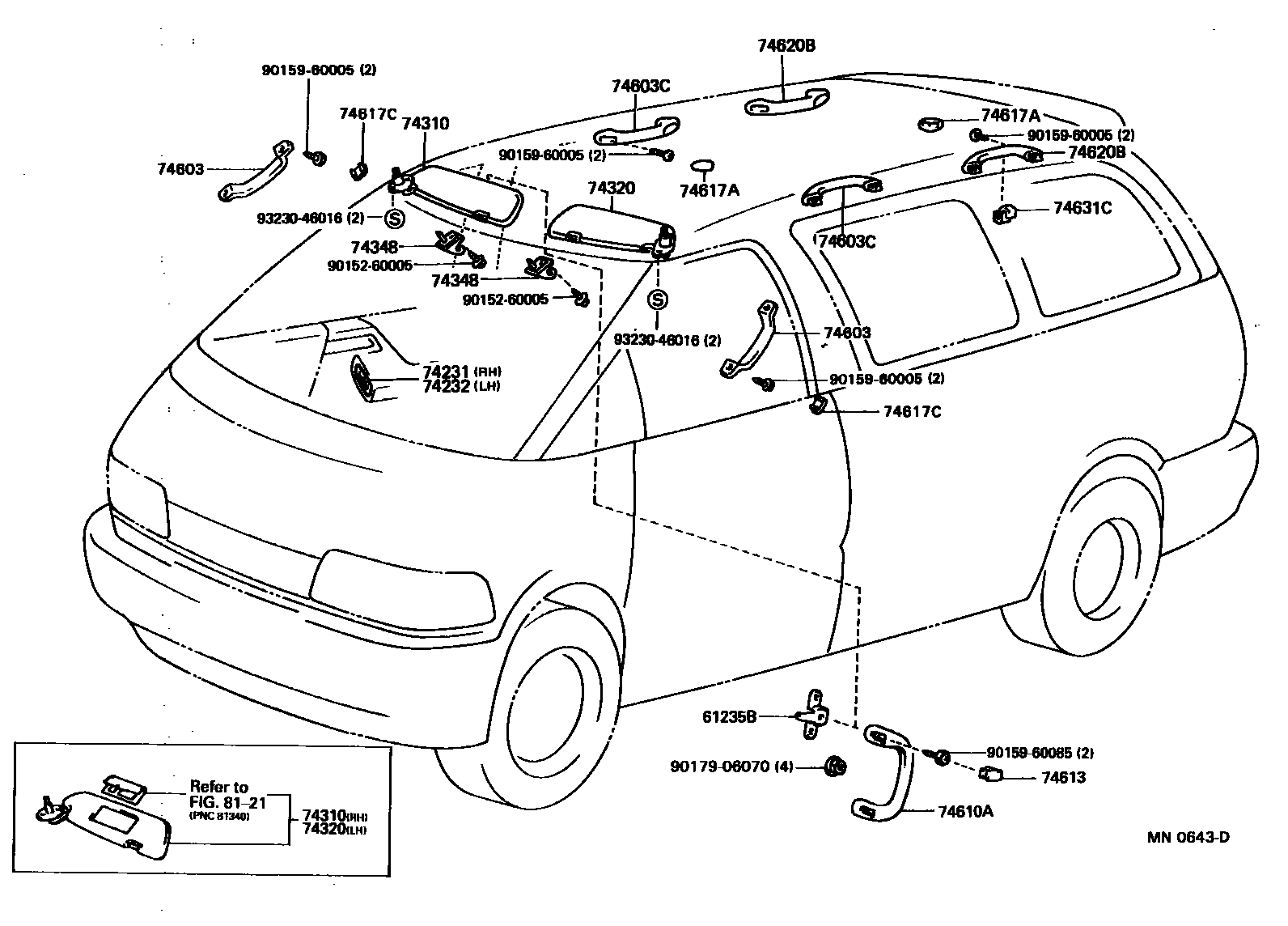

ARMREST & VISOR

61235BBRACKET, ASSIST GRIP

main61235-28010iTCR1#,2#199308-199912

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-28020-03iTCR1#,2#..RHD199005-199112

LIGHT GRAY,TRIM1#

sub74231-28021

main74231-28020-05iTCR11,21..RHD199005-199112

LIGHT GRAIGE,TRIM4#

sub74231-28021

main74231-28021-B0iTCR1#,21..RHD199112-199804

GRAY,TRIM1#

sub74231-28011

main74231-28021-E1iTCR11..ARL199112-199801

GREIGE,TRIM4#

sub74231-28011

main74231-28030-B0iTCR1#,2#..LHD199112-199912

GRAY,TRIM1#

sub74231-28030

main74231-28030-E0iTCR1#,21..LHD..GL199112-199801

GREIGE,TRIM4#

sub74231-28030

main74231-28041-B1iTCR11..RHD199802-199804

W(MOON ROOF),GRAY,TRIM1#

sub74231-28011

main74231-28181iTCR11..ARL199810-199912

HONG KONG SPEC

main74231-28191iTCR11..ARL199810-199912

HONG KONG SPEC & W(MOON ROOF)

sub74231-28181

main74231-28200-B0iTCR1#,2#..LHD199801-199804

GRAY,TRIM1#

main74231-28230-B0iTCR11..RHD199804-199912

W(MOON ROOF),GRAY,TRIM1#

sub74231-28220

main74231-28240-B0iTCR1#..RHD199804-199912

GRAY,TRIM1#

sub74231-28220

main74231-95D00-03iTCR1#,2#..LHD199005-199112

LIGHT GRAY,TRIM1#

sub74231-28030

main74231-95D00-05iTCR11,21..LHD199005-199112

LIGHT GREIGE,TRIM4#

sub74231-28030

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-28010-03iTCR1#,2#..LHD199005-199112

LIGHT GRAY,TRIM1#

sub74232-28011

main74232-28010-05iTCR11,21..LHD199005-199112

LIGHT GREIGE,TRIM4#

sub74232-28011

main74232-28011-B0iTCR1#,2#..LHD199112-199804

GRAY,TRIM1#

sub74232-28011

main74232-28011-E1iTCR1#,21..LHD..GL199112-199801

GREIGE,TRIM4#

sub74232-28011

main74232-28020-B0iTCR1#..RHD199112-199912

GRAY,TRIM1#

sub74232-28020

main74232-28020-E0iTCR11,21..RHD199112-199801

GREIGE,TRIM4#

sub74232-28020

main74232-28101iTCR11..ARL199810-199912

HONG KONG SPEC

main74232-28150-B0iTCR1#..LHD..GL199802-199804

W(MOON ROOF),GRAY,TRIM1#

main74232-28151-B0iTCR1#..LHD..GL199804-199912

W(MOON ROOF),GRAY,TRIM1#

sub74232-28170

main74232-28170-B0iTCR1#,2#..LHD199804-199912

GRAY,TRIM1#

main74232-95D01-03iTCR1#,2#..RHD199005-199112

LIGHT GRAY,TRIM1#

sub74232-28020

main74232-95D01-05iTCR11,21..RHD199005-199112

LIGHT GREIGE,TRIM4#

sub74232-28020

74310VISOR ASSY, RH

main74310-28070-03iTCR1#..ARL199005-199208

LIGHT GRAY,TRIM1#

main74310-28070-05iTCR11..ARL199005-199208

LIGHT GREIGE,TRIM4#

main74310-28390-B0iTCR11..RHD..W199108-199308

LIGHT GRAY,TRIM1#

sub74310-28391

main74310-28390-E0iTCR11..RHD199108-199308

LIGHT GREIGE,TRIM4#

sub74310-28391

main74310-28391-B1iTCR11..ARL;TCR11..RHD..MTM199308-199801

GRAY,TRIM1#

main74310-28391-E1iTCR11..RHD199308-199710

GREIGE,TRIM4#

main74310-28400-B0iTCR11,21..LHD199108-199308

LIGHT GRAY,TRIM1#

sub74310-28401

main74310-28400-E0iTCR11,21..LHD199108-199308

LIGHT GREIGE,TRIM4#

sub74310-28401

main74310-28401-B1iTCR11,21..LHD199308-199801

GRAY,TRIM1#

main74310-28401-E1iTCR11,21..LHD199308-199608

GREIGE,TRIM4#

main74310-28590-B0iTCR21..ARL199208-199308

LIGHT GRAY,TRIM1#

main74310-28590-E0iTCR21..ARL199208-199308

LIGHT GREIGE,TRIM4#

main74310-28600-B0iTCR11..RHD199308-199608

W(*80),GRAY,TRIM1#

sub74310-28602

main74310-28600-E0iTCR11..RHD199308-199608

W(*80),GREIGE,TRIM4#

sub74310-28602

main74310-28601-B0iTCR11..RHD199608-199708

W(*80),LIGHT GRAY,TRIM1#

sub74310-28602

main74310-28601-E0iTCR11..ARL199608-199708

W(*80),LIGHT GREIGE,TRIM4#

sub74310-28602

main74310-28602-B0iTCR11..RHD199708-199801

W(*80),LIGHT GRAY,TRIM1#

main74310-28602-E0iTCR11..ARL199708-199801

W(*80),MD.GREIGE,TRIM4#

main74310-28611-B1iTCR10..GEN199508-199608

GRAY,TRIM1#

sub74310-28611

main74310-28611-E1iTCR10..GEN199508-199608

GREIGE,TRIM4#

sub74310-28611

main74310-28612-B1iTCR10..GEN199608-199708

LIGHT GRAY,TRIM1#

sub74310-28613

main74310-28612-E1iTCR10..GEN199608-199708

LIGHT GREIGE,TRIM4#

sub74310-28613

main74310-28613-B1iTCR10..GEN199708-199801

LIGHT GRAY,TRIM1#

sub74310-28613

main74310-28613-B2iTCR10..GEN199801-199912

LT. GRAY,TRIM1#

sub74310-28613

main74310-28613-E1iTCR10..GEN199708-199801

LIGHT GREIGE,TRIM4#

sub74310-28613

main74310-28730-B0iTCR10..ARL199408-199608

W(*80),GRAY,TRIM1#

sub74310-28732

main74310-28731-B0iTCR10..ARL199608-199708

W(*80),LIGHT GRAY,TRIM1#

sub74310-28732

main74310-28732-B0iTCR10..ARL199708-199801

W(*80),LIGHT GRAY,TRIM1#

main74310-28732-B1iTCR10..ARL199801-199912

LT. GRAY,TRIM1#

main74310-28820-B0iTCR10..V199608-199708

LIGHT GRAY,TRIM1#

sub74310-95D15

main74310-2J040-B0iTCR11,21..LHD199801-199912

LT. GRAY,TRIM1#

main74310-2J050-B0iTCR11..RHD199801-199912

LT. GRAY,TRIM1#

main74310-95D14-03iTCR10,20..W;TCR11..RHD..W199005-199308

LIGHT GRAY,TRIM1#

sub74310-95D14

main74310-95D14-05iTCR11..RHD..W199005-199108

LIGHT GREIGE,TRIM4#

sub74310-95D14

main74310-95D14-B0iTCR10..ARL199308-199710

GRAY,TRIM1#

sub74310-95D14

main74310-95D15-03iTCR11,21..LHD199005-199308

LIGHT GRAY,TRIM1#

sub74310-95D15

main74310-95D15-05iTCR11,21..LHD199005-199108

LIGHT GREIGE,TRIM4#

sub74310-95D15

main74310-95D15-B0iTCR10,20..LHD199308-199801

LEADED GASOLINE SPEC,GRAY,TRIM1#

sub74310-95D15

main74310-95D15-B1iTCR10..GEN199801-199912

LEADED GASOLINE SPEC,LT. GRAY,TRIM1#

sub74310-95D15

main74310-95D15-B1iTCR10,20..V,W199801-199912

LT. GRAY,TRIM1#

sub74310-95D15

main74310-95D15-E0iTCR10..GEN199308-199801

LEADED GASOLINE SPEC,GREIGE,TRIM4#

sub74310-95D15

main74310-95D16-03iTCR2#..ATM199005-199208

LIGHT GRAY,TRIM1#

main74310-95D16-05iTCR21..ATM199005-199208

LIGHT GREIGE,TRIM4#

main74310-95D17-03iTCR2#..MTM..ARL199005-199108

LIGHT GRAY,TRIM1#

main74310-95D17-05iTCR21..MTM..ARL199005-199108

LIGHT GREIGE,TRIM4#

74320VISOR ASSY, LH

main74320-28060-03iTCR10,20..ARL199005-199208

LIGHT GRAY,TRIM1#

main74320-28070-03iTCR11,21..ARL199005-199208

LIGHT GRAY,TRIM1#

main74320-28070-05iTCR11,21..ARL199005-199208

LIGHT GREIGE,TRIM4#

main74320-28102-B1iTCR10..GEN199508-199608

GRAY,TRIM1#

sub74320-28102

main74320-28102-E1iTCR10..GEN199508-199608

GREIGE,TRIM4#

sub74320-28102

main74320-28103-B1iTCR10..GEN199608-199708

LIGHT GRAY,TRIM1#

sub74320-28104

main74320-28103-E1iTCR10..GEN199608-199708

LIGHT GREIGE,TRIM4#

sub74320-28104

main74320-28104-B1iTCR10..GEN199708-199801

LIGHT GRAY,TRIM1#

sub74320-28104

main74320-28104-B2iTCR10..GEN199801-199912

LT. GRAY,TRIM1#

sub74320-28104

main74320-28104-E1iTCR10..GEN199708-199801

MD.GREIGE,TRIM4#

sub74320-28104

main74320-28220-B0iTCR11..LHD199108-199308

LIGHT GRAY,TRIM1#

sub74320-28223

main74320-28220-E0iTCR11..LHD199108-199308

LIGHT GREIGE,TRIM4#

sub74320-28223

main74320-28221-B1iTCR11..LHD199308-199608

GRAY,TRIM1#

main74320-28221-E1iTCR11..LHD199308-199608

GREIGE,TRIM4#

main74320-28222-B1iTCR11..LHD199608-199708

LIGHT GRAY,TRIM1#

sub74320-28223

main74320-28223-B1iTCR11..LHD199708-199801

LIGHT GRAY,TRIM1#

main74320-28230-B0iTCR11,21..RHD199108-199308

LIGHT GRAY,TRIM1#

sub74320-28231

main74320-28230-E0iTCR11..RHD..W199108-199308

LIGHT GREIGE,TRIM4#

sub74320-28231

main74320-28231-B1iTCR11..RHD199308-199801

GRAY,TRIM1#

main74320-28231-E1iTCR11..ARL199308-199801

GREIGE,TRIM4#

main74320-28240-B0iTCR21..W199108-199308

LIGHT GRAY,TRIM1#

sub74320-28243

main74320-28240-E0iTCR21..W199108-199308

LIGHT GREIGE,TRIM4#

sub74320-28243

main74320-28241-B1iTCR21199308-199608

GRAY,TRIM1#

main74320-28241-E1iTCR21199308-199608

GREIGE,TRIM4#

main74320-28242-B1iTCR21199608-199708

LIGHT GRAY,TRIM1#

sub74320-28243

main74320-28243-B1iTCR21199708-199801

LIGHT GRAY,TRIM1#

main74320-28320-B1iTCR10..W199408-199608

W(*80),GRAY,TRIM1#

main74320-28321-B1iTCR10..W199608-199708

LIGHT GRAY,TRIM1#

sub74320-28322

main74320-28322-B1iTCR10..W199708-199801

LIGHT GRAY,TRIM1#

main74320-28322-B2iTCR10..W199801-199912

LT. GRAY,TRIM1#

main74320-28330-B1iTCR20199308-199608

GRAY,TRIM1#

sub74320-28333

main74320-28331-B1iTCR20199408-199608

W(*80),GRAY,TRIM1#

main74320-28332-B1iTCR20199608-199708

LIGHT GRAY,TRIM1#

sub74320-28333

main74320-28333-B1iTCR20199708-199801

LIGHT GRAY,TRIM1#

main74320-28333-B2iTCR20199801-199912

LT. GRAY,TRIM1#

main74320-28410-B0iTCR10..V199608-199708

LIGHT GRAY,TRIM1#

sub74320-28411

main74320-28411-B0iTCR10..V199708-199801

W(*80),LIGHT GRAY,TRIM1#

main74320-28411-B1iTCR10..V199801-199912

W(*80),LT. GRAY,TRIM1#

main74320-28450-B0iTCR11..LHD199801-199912

LT. GRAY,TRIM1#

main74320-28460-B0iTCR11..RHD199801-199912

LT. GRAY,TRIM1#

main74320-28470-B0iTCR21199801-199912

LT. GRAY,TRIM1#

main74320-95D06-03iTCR10..W199005-199308

LIGHT GRAY,TRIM1#

sub74320-95D06

main74320-95D06-05iTCR11..LHD199005-199108

LIGHT GREIGE,TRIM4#

sub74320-95D06

main74320-95D06-B0iTCR10..W199308-199608

GRAY,TRIM1#

sub74320-95D06

main74320-95D07-03iTCR11..RHD..W199005-199308

LIGHT GRAY,TRIM1#

sub74320-95D07

main74320-95D07-05iTCR11..RHD..W199005-199108

LIGHT GREIGE,TRIM4#

sub74320-95D07

main74320-95D07-B0iTCR10..ARL,GEN,V199308-199801

LEADED GASOLINE SPEC,GRAY,TRIM1#

sub74320-95D07

main74320-95D07-B1iTCR10..ARL,GEN,V199801-199912

LEADED GASOLINE SPEC,LT. GRAY,TRIM1#

sub74320-95D07

main74320-95D07-E0iTCR10..GEN199308-199801

LEADED GASOLINE SPEC,GREIGE,TRIM4#

sub74320-95D07

main74320-95D10-03iTCR20199005-199308

LIGHT GRAY,TRIM1#

main74320-95D10-05iTCR21..W199005-199108

LIGHT GREIGE,TRIM4#

74348HOLDER, VISOR

main74348-12020-43iTCR1#,2#199005-199308

LIGHT GRAY,TRIM1#

sub74348-12020

sub74348-60010

sub74348-26020

main74348-12020-45iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub74348-12020

sub74348-60010

sub74348-26020

main74348-12020-B8iTCR1#,2#199308-199509

GRAY,TRIM1#

sub74348-12020

sub74348-60010

sub74348-26020

main74348-12020-L1iTCR1#,21..GL199308-199509

GREIGE,TRIM4#

sub74348-12020

sub74348-60010

sub74348-26020

main74348-26020-B1iTCR1#,2#199509-199704

LT.GRAY,TRIM1#

sub74348-26020

main74348-26020-B4iTCR10,20..ARL,GEN,W199704-199912

LT.GRAY,TRIM1#

sub74348-26020

main74348-26020-E1iTCR1#,21..GL199509-199801

LT.GREIGE,TRIM4#

sub74348-26020

74603GRIP SUB-ASSY, ASSIST, FRONT

main74603-28030-B0iTCR1#,2#199108-199801

LIGHT GRAY,TRIM1#

sub74603-44010

sub74603-28030

main74603-28030-B2iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub74603-44010

sub74603-28030

main74603-28030-E0iTCR1#,21..GL199108-199801

LIGHT GREIGE,TRIM4#

sub74603-44010

sub74603-28030

74603CGRIP SUB-ASSY, ASSIST

main74603-28010-03iTCR1#,2#..W199005-199308

LIGHT GRAY,TRIM1#,LH

sub74603-28010

main74603-28010-05iTCR11,21..W199005-199308

LIGHT GREIGE,TRIM4#,LH

sub74603-28010

main74603-28010-B0iTCR1#,2#..W199801-199912

LT.GRAY,TRIM1#,LH

sub74603-28010

main74603-28010-B8iTCR1#,2#..W199308-199801

GRAY,TRIM1#,LH

sub74603-28010

main74603-28010-L1iTCR11,21..W199308-199608

GREIGE,TRIM4#,LH

sub74603-28010

main74603-28020-03iTCR1#,2#..W199005-199308

LIGHT GRAY,TRIM1#,RH

sub74603-28020

main74603-28020-05iTCR11,21..W199005-199308

LIGHT GREIGE,TRIM4#,RH

sub74603-28020

main74603-28020-B0iTCR1#,2#..W199801-199912

LT.GRAY,TRIM1#,RH

sub74603-28020

main74603-28020-B8iTCR1#,2#..W199308-199801

GRAY,TRIM1#,RH

sub74603-28020

main74603-28020-L1iTCR11,21..W199308-199608

GREIGE,TRIM4#,RH

sub74603-28020

main74603-95D00-03iTCR1#,2#..ARL199005-199308

LIGHT GRAY,TRIM1#

sub74603-95D00

main74603-95D00-05iTCR11,21..ARL199005-199308

LIGHT GREIGE,TRIM4#

sub74603-95D00

main74603-95D00-B0iTCR1#..ARL,GEN,V199801-199912

LT.GRAY,TRIM1#

sub74603-95D00

main74603-95D00-B8iTCR1#..ARL,GEN,V199308-199801

GRAY,TRIM1#

sub74603-95D00

main74603-95D00-L1iTCR1#..GL..(ARL,GEN)199308-199801

GREIGE,TRIM4#

sub74603-95D00

main74603-95D01-03iTCR1#,2#..ARL199005-199308

LIGHT GRAY,TRIM1#,SLIDE DOOR SIDE

sub74603-95D01

main74603-95D01-05iTCR11,21..ARL199005-199308

LIGHT GREIGE,TRIM4#,SLIDE DOOR SIDE

sub74603-95D01

main74603-95D01-B0iTCR1#..ARL,GEN,V199801-199912

LT.GRAY,TRIM1#,SLIDE DOOR SIDE

sub74603-95D01

main74603-95D01-B8iTCR1#..ARL,GEN,V199308-199801

GRAY,TRIM1#,SLIDE DOOR SIDE

sub74603-95D01

main74603-95D01-L1iTCR1#..GL..(ARL,GEN)199308-199801

GREIGE,TRIM4#,SLIDE DOOR SIDE

sub74603-95D01

74610AGRIP SUB-ASSY, ASSIST

main74610-28020-B0iTCR1#,2#199308-199801

GRAY,TRIM1#

sub74610-28020

main74610-28020-B1iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub74610-28020

main74610-28020-E0iTCR1#,21..GL199308-199801

GREIGE,TRIM4#

sub74610-28020

74613PLUG, ASSIST GRIP

main74617-28040-B0iTCR1#,2#199308-199801

GRAY,TRIM1#,LOWER

sub74617-28040

main74617-28040-B1iTCR1#,2#199801-199912

LT.GRAY,TRIM1#,LOWER

sub74617-28040

main74617-28040-E0iTCR1#,21..GL199308-199801

GREIGE,TRIM4#,LOWER

sub74617-28040

main74617-28050-B0iTCR1#,2#199308-199801

GRAY,TRIM1#,UPPER

sub74617-28050

main74617-28050-B1iTCR1#,2#199801-199912

LT.GRAY,TRIM1#,UPPER

sub74617-28050

main74617-28050-E0iTCR1#,21..GL199308-199801

GREIGE,TRIM4#,UPPER

sub74617-28050

74617APLUG, ASSIST GRIP

main74617-28010-03iTCR1#,2#..W199005-199308

LIGHT GRAY,TRIM1#

sub74617-28010

main74617-28010-05iTCR11,21..W199005-199308

LIGHT GREIGE,TRIM4#

sub74617-28010

main74617-28010-B0iTCR1#,2#..W199801-199912

LT.GRAY,TRIM1#

sub74617-28010

main74617-28010-B8iTCR1#,2#..W199308-199801

GRAY,TRIM1#

sub74617-28010

main74617-28010-L1iTCR11,21..W199308-199608

GREIGE,TRIM4#

sub74617-28010

main74617-95D00-03iTCR1#,2#..ARL199005-199308

LIGHT GRAY,TRIM1#

sub74617-95D00

main74617-95D00-05iTCR11,21..ARL199005-199308

LIGHT GREIGE,TRIM4#

sub74617-95D00

main74617-95D00-B1iTCR1#..ARL,GEN,V199801-199912

LT.GRAY,TRIM1#

sub74617-95D00

main74617-95D00-B8iTCR1#..ARL,GEN,V199308-199801

GRAY,TRIM1#

sub74617-95D00

main74617-95D00-L1iTCR1#..GL..(ARL,GEN)199308-199801

GREIGE,TRIM4#

sub74617-95D00

74617CPLUG, ASSIST GRIP

main74617-28030-B0iTCR1#,2#199108-199801

LIGHT GRAY,TRIM1#

sub74617-28030

main74617-28030-B2iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub74617-28030

main74617-28030-E0iTCR1#,21..GL199108-199801

LIGHT GREIGE,TRIM4#

sub74617-28030

74620BGRIP ASSY, ASSIST, REAR

main74603-28010-03iTCR1#,2#..W199005-199308

LIGHT GRAY,TRIM1#

sub74603-28010

main74603-28010-05iTCR11,21..W199005-199308

LIGHT GREIGE,TRIM4#

sub74603-28010

main74603-28010-B0iTCR1#,2#..W199801-199912

LT.GRAY,TRIM1#

sub74603-28010

main74603-28010-B8iTCR1#,2#..W199308-199801

GRAY,TRIM1#

sub74603-28010

main74603-28010-L1iTCR11,21..W199308-199608

GREIGE,TRIM4#

sub74603-28010

main74603-95D00-03iTCR1#,2#..ARL199005-199308

LIGHT GRAY,TRIM1#

sub74603-95D00

main74603-95D00-05iTCR11,21..ARL199005-199308

LIGHT GREIGE,TRIM4#

sub74603-95D00

main74603-95D00-B0iTCR1#..ARL,GEN,V199801-199912

LT.GRAY,TRIM1#

sub74603-95D00

main74603-95D00-B8iTCR1#..ARL,GEN,V199308-199801

GRAY,TRIM1#

sub74603-95D00

main74603-95D00-L1iTCR1#..GL..(ARL,GEN)199308-199801

GREIGE,TRIM4#

sub74603-95D00

74631CHOOK, COAT

main74631-14010-50iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub74631-14010

sub74631-20040

main74631-14010-53iTCR1#,2#199005-199308

GRAY,TRIM1#

sub74631-14010

sub74631-20040

main74631-14010-B8iTCR1#,2#199308-199508

GRAY,TRIM1#

sub74631-14010

sub74631-20040

main74631-14010-L1iTCR1#,21..GL199308-199508

GREIGE,TRIM4#

sub74631-14010

sub74631-20040

main74631-28010-B0iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub74631-28010

8121

9015260005

main90152-60005

9015960005

main90159-60005

9015960085

main90159-60085

9017906070

main90179-06070

9323046016

main93230-46016

20 parts on this diagram · 1 diagram in section
