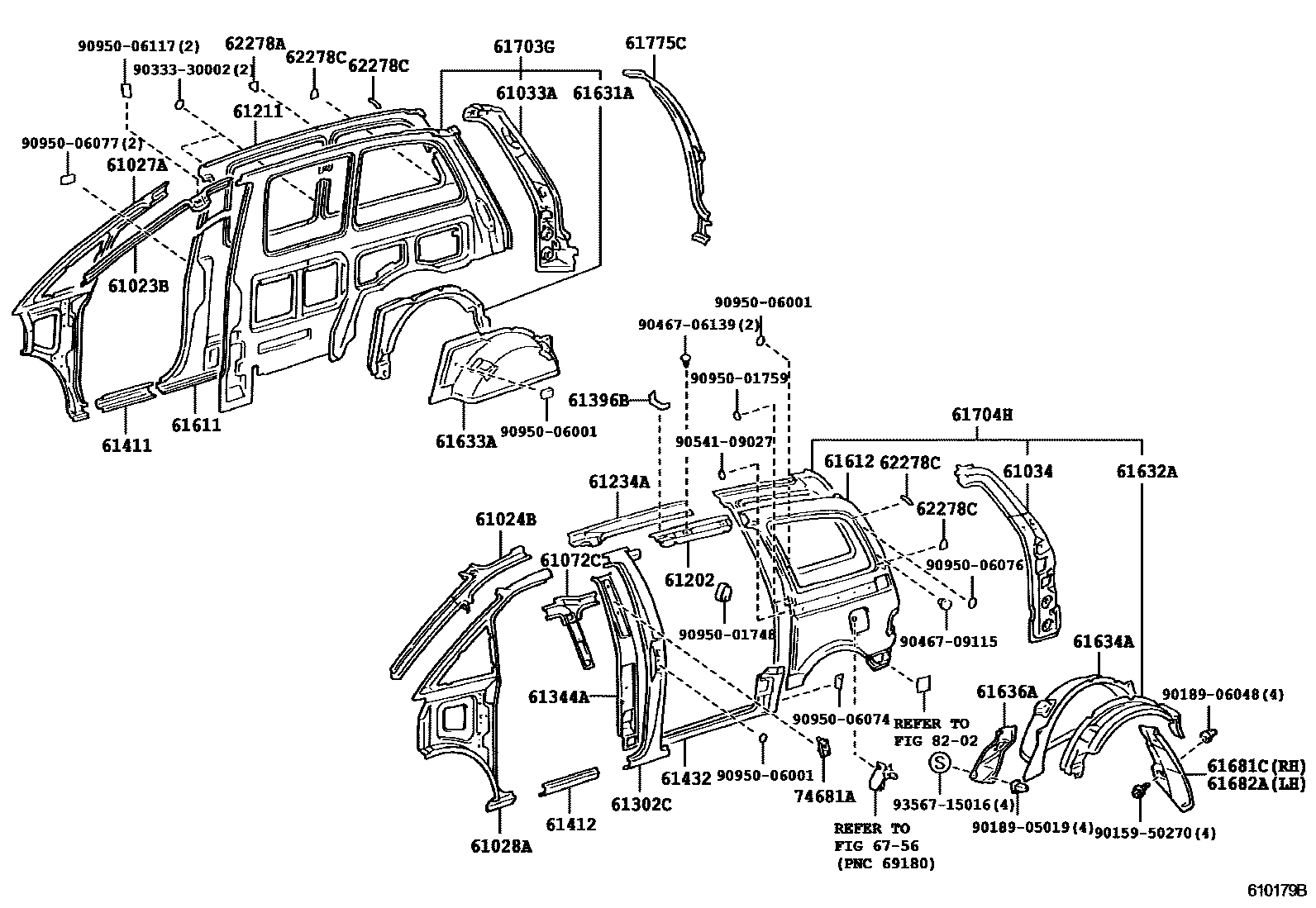

SIDE MEMBER

0001 1 0002 1

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-28050iTCR1#,2#199108-199912

main61023-95D03iTCR1#,2#199005-199108

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-28050iTCR1#,2#199108-199912

main61024-95D03iTCR1#,2#199005-199108

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-28040iTCR1#,2#..LHD199005-199912

main61027-28050iTCR1#,2#..RHD199005-199912

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-28080iTCR1#,2#..LHD199005-199912

main61028-28090iTCR1#,2#..RHD199005-199912

61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE

main61033-28020iTCR11..LHD..MTM199005-199912

EUROPE N1 VEHICLES CATEGORY

main61033-95D00iTCR1#,2#199005-199912

61034REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH

main61034-28020iTCR11..LHD..MTM199412-199608

EUROPE N1 VEHICLES CATEGORY & W/O(REAR NO.1 SEAT)

main61034-95D00iTCR1#,2#199005-199912

61072CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER LH

main61072-95D00iTCR1#,2#..RHD199005-199912

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61202-28010iTCR1#,2#..RHD199005-199912

61211RAIL, ROOF SIDE, OUTER RH

main61201-28110iTCR1#,2#..RHD199005-199912

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-28050iTCR11..RHD199412-199912

W(MOON ROOF)

main61234-95D00iTCR1#,2#..RHD199005-199912

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-28010iTCR1#,2#..RHD199005-199108

main61302-28020iTCR11..RHD..W199005-199108

W(SECURITY SYSTEM)

61344APILLAR, CENTER BODY, INNER LH

main61344-95D00iTCR1#,2#..RHD199005-199912

61396BSEAL, CENTER BODY PILLAR, LH

main61395-95D00iTCR1#,2#..RHD199005-199912

61411PANEL, ROCKER, OUTER RH

main61411-28010iTCR1#,2#199005-199912

61412PANEL, ROCKER, OUTER LH

main61412-28010iTCR1#,2#199005-199912

61432PANEL, ROCKER, OUTER REAR LH

main61432-95D00iTCR1#,2#..RHD199005-199912

61611PANEL, QUARTER, RH

main61601-28280iTCR11..LHD199005-199308

W(TWIN SUNROOF)

main61601-28A00iTCR1#,21..RHD199108-199912

main61601-28A10iTCR1#,2#..RHD199005-199108

main61601-2J100iTCR10..GEN199308-199912

main61601-95D32iTCR1#,2#..LHD..(V,W)199005-199912

61612PANEL, QUARTER, LH

main61602-28100iTCR11..RHD199005-199108

W(TWIN SUNROOF)

sub90950-06068

main61602-28110iTCR1#,21..RHD199108-199306

main61602-28111iTCR1#,21..RHD199306-199912

main61602-28120iTCR11..RHD199108-199306

W(TWIN SUNROOF)

main61602-28810iTCR1#,2#..LHD199306-199912

main61602-28820iTCR1#,2#..LHD199005-199306

main61602-95D16iTCR1#,2#..RHD199005-199108

sub90950-06068

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-95D00iTCR1#,2#..LHD199005-199912

main61631-95D01iTCR1#..RHD199005-199912

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-95D00iTCR1#,2#..LHD199005-199912

main61632-95D01iTCR1#..RHD199005-199912

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-95D00iTCR1#,2#199005-199912

main61633-95D00iTCR11..LHD..MTM199005-199912

DENMARK SPEC

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-95D00iTCR11..LHD..MTM199005-199912

DENMARK SPEC

main61608-95D01iTCR1#,2#199005-199912

61636ABRACE, QUARTER WHEEL HOUSE, LH

main61636-95D00iTCR1#,2#..RHD199005-199912

61681CEXTENSION, REAR WHEEL OPENING, RH

main61681-95D00iTCR1#,2#199005-199912

61682AEXTENSION, REAR WHEEL OPENING, LH

main61682-95D00iTCR1#,2#199005-199912

61703GPANEL SUB-ASSY, QUARTER, INNER RH

main61703-28150iTCR11..LHD199005-199912

W(REAR CAPTAIN SEAT)

main61703-28160iTCR11..LHD..MTM199005-199912

DENMARK SPEC & W/O(RR NO.1 SEAT)

main61703-28180iTCR10..GEN199705-199912

CHINA SPEC

main61703-95D11iTCR2#..W199005-199108

W(RR NO.1 SEAT = 2+1(SEAT BACK DIVISION))

main61703-95D12iTCR1#,2#..RHD199005-199912

61704HPANEL SUB-ASSY, QUARTER, INNER LH

main61704-28120iTCR11..RHD..W199308-199912

W(RR NO.1 SEAT=1+1 CAPTAIN(RETRCT), W(ARM REST))

main61704-28130iTCR11..LHD..MTM199005-199108

DENMARK SPEC & W/O(RR NO.1 SEAT)

main61704-28150iTCR2#..ARL199005-199108

main61704-28160iTCR1#..ARL199005-199912

main61704-28170iTCR21..ARL199108-199308

main61704-28270iTCR1#,2#..LHD..W199108-199408

W(TONNEAU COVER)

main61704-28280iTCR11..LHD..MTM199108-199412

DENMARK SPEC & W/O(RR NO.1 SEAT)

main61704-28290iTCR1#,2#..LHD199108-199408

main61704-2J610iTCR10..GEN199705-199912

CHINA SPEC

main61704-95D02iTCR11..RHD..W199005-199912

main61704-95D03iTCR1#,2#..LHD199005-199108

61775CFRAME, BACK DOOR OPENING SIDE, RH

main61705-95D00iTCR1#,2#..RHD199005-199912

62278APROTECTOR, SIDE WINDOW

main62278-28010iTCR1#,2#199005-199708

UPPER

main62278-28020iTCR1#,2#199904-199912

LOWER

62278CPROTECTOR, SIDE WINDOW

main62278-28020×2iTCR1#,2#199005-199708

RH & LH, LOWER

main62278-28030iTCR1#,2#199005-199708

RH,UPPER

main62278-28040iTCR11..RHD..W;TCR10,20..ARL,GEN,W199801-199904

LH,UPPER

6756

74681ARETAINER, ASSIST GRIP

main74681-28040×2iTCR1#,2#199308-199912

8202

9015950270

main90159-50270

9018905019

main90189-05019

9018906048

main90189-06048

9033330002

main90333-30002

9046706139

main90467-06139

9046709115

main90467-09115

9054109027

main90541-09027

9095001748

main90950-01748

9095001759

main90950-01759

9095006001

main90950-06001

9095006074

main90950-06074

9095006076

main90950-06076

9095006077

main90950-06077

9095006117

main90950-06117

9356715016

main93567-15016

48 parts on this diagram · 2 diagrams in section
