EPC Data

FLOOR MAT & SILENCER PAD

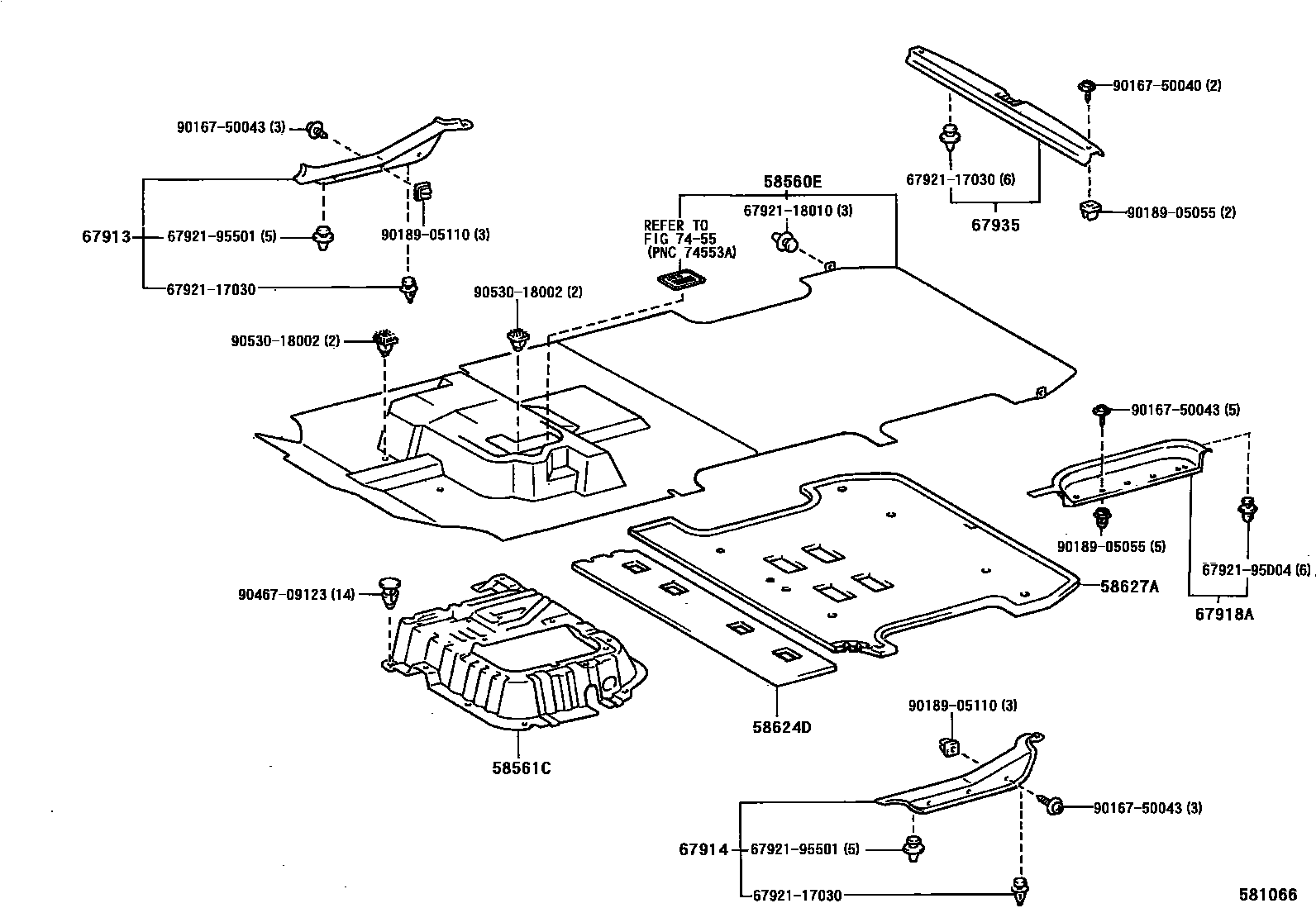

Parts diagram
58560ECARPET ASSY, SEAT FLOOR
main58560-28030-03i199005-199308
LIGHT GRAY,TRIM1#
sub58560-28030
sub58560-28040
main58560-28030-05i199005-199308
LIGHT GREIGE,TRIM4#
sub58560-28030
sub58560-28040
main58560-28030-B0i199308-199608
GRAY,TRIM1#
sub58560-28030
sub58560-28040
main58560-28030-E0i199308-199608
GREIGE,TRIM4#
sub58560-28030
sub58560-28040
main58560-28040-03i199005-199308
LIGHT GRAY,TRIM1#
sub58560-28040
main58560-28040-05i199005-199308
LIGHT GREIGE,TRIM4#
sub58560-28040
main58560-28040-B0i199308-199608
GRAY,TRIM1#
sub58560-28040
main58560-28040-E0i199308-199608
GREIGE,TRIM4#
sub58560-28040
main58560-28050-03i199005-199108
LIGHT GRAY,TRIM1#
main58560-28050-05i199005-199108
LIGHT GREIGE,TRIM4#
main58560-28490-B0i199108-199308
W(COOL BOX),LIGHT GRAY,TRIM1#
main58560-28490-E0i199108-199308
W(COOL BOX),LIGHT GREIGE,TRIM4#
main58560-28560-B1i199308-199608
GRAY,TRIM1#
sub58560-28560
sub58560-2J211
main58560-28560-E1i199308-199608
GREIGE,TRIM4#
sub58560-28560
sub58560-2J211
main58560-28562-B1i199608-199912
BLUISH GRAY,TRIM1#
main58560-28562-E1i199608-199801
MD. GREIGE,TRIM4#
main58560-28570-B1i199308-199608
W(COOL BOX),GRAY,TRIM1#
sub58560-28570
sub58560-2J221
main58560-28570-E1i199308-199608
W(COOL BOX),GREIGE,TRIM4#
sub58560-28570
sub58560-2J221
main58560-28572-B1i199608-199912
W(COOL BOX),BLUISH GRAY,TRIM1#
main58560-28572-E1i199608-199801
W(COOL BOX),MD. GREIGE,TRIM4#
main58560-28600-B0i199108-199308
W(CAPTAIN SEAT & AIR CONDITIONER & COOL BOX),LIGHT GRAY,TRIM1#
sub58560-28600
main58560-28600-B1i199308-199608
W(CAPTAIN SEAT & AIR CONDITIONER & COOL BOX),GRAY,TRIM1#
sub58560-28600
main58560-28600-E0i199108-199308
W(CAPTAIN SEAT & AIR CONDITIONER & COOL BOX),LIGHT GREIGE,TRIM4#
sub58560-28600
main58560-28600-E1i199308-199608
W(CAPTAIN SEAT & AIR CONDITIONER & COOL BOX),GREIGE,TRIM4#
sub58560-28600
main58560-28601-B1i199608-199912
W(CAPTAIN SEAT & *AIC & COOL BOX),BLUISH GRAY,TRIM1#
sub58560-28601
main58560-28610-B0i199108-199308
W(FRONT CONSOLE BOX & CAPTAIN SEAT),LIGHT GRAY,TRIM1#
sub58560-28610
main58560-28610-B1i199308-199608
W(CAPTAIN SEAT),GRAY,TRIM1#
sub58560-28610
main58560-28610-E0i199108-199308
W(FRONT CONSOLE BOX & CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
sub58560-28610
main58560-28610-E1i199308-199608
W(CAPTAIN SEAT),GREIGE,TRIM4#
sub58560-28610
main58560-28611-B1i199608-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
sub58560-28611
main58560-28620-B0i199108-199308
W(AIR CONDITIONER & COOL BOX),LIGHT GRAY,TRIM1#
sub58560-28620
main58560-28620-B1i199308-199912
W(AIR CONDITIONER & COOL BOX),GRAY,TRIM1#
sub58560-28620
main58560-28620-E0i199108-199308
W(AIR CONDITIONER & COOL BOX),LIGHT GREIGE,TRIM4#
sub58560-28620
main58560-28620-E1i199308-199608
W(AIR CONDITIONER & COOL BOX),GREIGE,TRIM4#
sub58560-28620
main58560-28630-B0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GRAY,TRIM1#
sub58560-28630
main58560-28630-B1i199308-199912
GRAY,TRIM1#
sub58560-28630
main58560-28630-E0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GREIGE,TRIM4#
sub58560-28630
main58560-28630-E1i199308-199608
GREIGE,TRIM4#
sub58560-28630
main58560-28640-B0i199108-199308
W(AIR CONDITIONER & COOL BOX),LIGHT GRAY,TRIM1#
sub58560-28640
main58560-28640-B1i199308-199408
W(AIR CONDITIONER & COOL BOX),GRAY,TRIM1#
sub58560-28640
main58560-28640-B1i199411-199912
W(COOL & HOT BOX),GRAY,TRIM1#
sub58560-28640
main58560-28650-B0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GRAY,TRIM1#
sub58560-28650
main58560-28650-B1i199308-199912
LIGHT GRAY,TRIM1#
sub58560-28650
main58560-28670-B0i199108-199308
W(CAPTAIN SEAT & AIR CONDITONER & COOL BOX),LIGHT GRAY,TRIM1#
sub58560-28670
main58560-28670-B1i199308-199608
W(CAPTAIN SEAT & AIR CONDITIONER & COOL BOX),GRAY,TRIM1#
sub58560-28670
main58560-28670-E0i199108-199308
W(CAPTAIN SEAT & AIR CONDITONER & COOL BOX),LIGHT GREIGE,TRIM4#
sub58560-28670
main58560-28670-E1i199308-199608
W(CAPTAIN SEAT & AIR CONDITIONER & COOL BOX),GREIGE,TRIM4#
sub58560-28670
main58560-28671-B1i199608-199912
W(CAPTAIN SEAT & *AIC & COOL BOX),BLUISH GRAY,TRIM1#
sub58560-28671
main58560-28680-B0i199108-199308
W(FRONT CONSOLE BOX & CAPTAIN SEAT),LIGHT GRAY,TRIM1#
sub58560-28680
main58560-28680-B1i199308-199608
W(CAPTAIN SEAT),GRAY,TRIM1#
sub58560-28680
main58560-28680-E0i199108-199308
W(FRONT CONSOLE BOX & CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
sub58560-28680
main58560-28680-E1i199308-199608
W(CAPTAIN SEAT),GREIGE,TRIM4#
sub58560-28680
main58560-28681-B1i199608-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
sub58560-28681
main58560-28690-B0i199108-199308
W(AIR CONDITIONER & COOL BOX),LIGHT GRAY,TRIM1#
sub58560-28690
main58560-28690-B1i199308-199912
W(AIR CONDITIONER & COOL BOX),GRAY,TRIM1#
sub58560-28690
main58560-28690-E0i199108-199308
W(AIR CONDITIONER & COOL BOX),LIGHT GREIGE,TRIM4#
sub58560-28690
main58560-28690-E1i199308-199608
W(AIR CONDITIONER & COOL BOX),GREIGE,TRIM4#
sub58560-28690
main58560-28700-B0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GRAY,TRIM1#
sub58560-28700
main58560-28700-B1i199308-199912
GRAY,TRIM1#
sub58560-28700
main58560-28700-E0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GREIGE,TRIM4#
sub58560-28700
main58560-28700-E1i199308-199608
GREIGE,TRIM4#
sub58560-28700
main58560-28710-B0i199108-199308
DENMARK SPEC & W/O(REAR SEAT) & W(AIR CONDITIONER & COOL BOX),LIGHT GRAY,TRIM1#
sub58560-28710
main58560-28710-B1i199308-199912
DENMARK SPEC & W/O(REAR SEAT) & W(AIR CONDITIONER & COOL BOX),GRAY,TRIM1#
sub58560-28710
main58560-28710-E0i199108-199308
DENMARK SPEC & W/O(REAR SEAT) & W(AIR CONDITIONER & COOL BOX),LIGHT GREIGE,TRIM4#
sub58560-28710
main58560-28710-E1i199308-199608
DENMARK SPEC & W/O(REAR SEAT) & W(AIR CONDITIONER & COOL BOX),GREIGE,TRIM4#
sub58560-28710
main58560-28720-B0i199108-199308
DENMARK SPEC & W/O(REAR SEAT) & W(FRONT CONSOLE BOX),LIGHT GRAY,TRIM1#
sub58560-28720
main58560-28720-B1i199308-199912
DENMARK SPEC & W/O(REAR SEAT),GRAY,TRIM1#
sub58560-28720
main58560-28720-E0i199108-199308
DENMARK SPEC & W/O(REAR SEAT) & W(FRONT CONSOLE BOX),LIGHT GREIGE,TRIM4#
sub58560-28720
main58560-28720-E1i199308-199608
DENMARK SPEC & W/O(REAR SEAT),GREIGE,TRIM4#
sub58560-28720
main58560-28750-B0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GRAY,TRIM1#
sub58560-28750
main58560-28750-B1i199308-199912
W(FRONT CONSOLE BOX),GRAY,TRIM1#
sub58560-28750
main58560-28750-E0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GREIGE,TRIM4#
sub58560-28750
main58560-28750-E1i199308-199608
W(FRONT CONSOLE BOX),GREIGE,TRIM4#
sub58560-28750
main58560-28770-B0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GRAY,TRIM1#
sub58560-28770
sub58560-28750
main58560-28770-B1i199308-199912
W(FRONT CONSOLE BOX),GRAY,TRIM1#
sub58560-28770
sub58560-28750
main58560-28770-E0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GREIGE,TRIM4#
sub58560-28770
sub58560-28750
main58560-28770-E1i199308-199608
W(FRONT CONSOLE BOX),GREIGE,TRIM4#
sub58560-28770
sub58560-28750
main58560-28780-B0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GRAY,TRIM1#
sub58560-28780
main58560-28780-B1i199404-199410
W(CAPTAIN SEAT & CRUISE CONTROL),GRAY,TRIM1#
sub58560-28780
main58560-28780-B1i199308-199311
GRAY,TRIM1#
sub58560-28780
main58560-28790-B0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GRAY,TRIM1#
sub58560-28790
main58560-28790-B0i199108-199308
W(FRONT CONSOLE BOX & CAPTAIN SEAT),LIGHT GRAY,TRIM1#
sub58560-28790
main58560-28790-B1i199308-199410
W(CAPTAIN SEAT),GRAY,TRIM1#
sub58560-28790
main58560-28790-E0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GREIGE,TRIM4#
sub58560-28790
main58560-28790-E0i199108-199308
W(FRONT CONSOLE BOX & CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
sub58560-28790
main58560-28790-E1i199404-199410
W(CAPTAIN SEAT),GREIGE,TRIM4#
sub58560-28790
main58560-28790-E1i199308-199311
W(FRONT CONSOLE BOX & CAPTAIN SEAT),GREIGE,TRIM4#
sub58560-28790
main58560-28800-B0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GRAY,TRIM1#
sub58560-28800
main58560-28800-B1i199308-199410
GRAY,TRIM1#
sub58560-28800
main58560-28800-E0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GREIGE,TRIM4#
sub58560-28800
main58560-28800-E1i199404-199410
GREIGE,TRIM4#
sub58560-28800
main58560-28800-E1i199308-199311
W(FRONT CONSOLE BOX),GREIGE,TRIM4#
sub58560-28800
main58560-28820-B0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GRAY,TRIM1#
sub58560-28820
sub58560-28780
main58560-28820-B1i199308-199410
GRAY,TRIM1#
sub58560-28820
sub58560-28780
main58560-28830-B0i199108-199308
W(FRONT CONSOLE BOX & CAPTAIN SEAT),LIGHT GRAY,TRIM1#
sub58560-28790
main58560-28830-E0i199108-199308
W(FRONT CONSOLE BOX & CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
sub58560-28790
main58560-28840-B0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GRAY,TRIM1#
sub58560-28800
main58560-28840-E0i199108-199308
W(FRONT CONSOLE BOX),LIGHT GREIGE,TRIM4#
sub58560-28800
main58560-2J430-B0i199308-199608
W(CRUISE CONTROL),GRAY,TRIM1#
main58560-2J430-E0i199308-199608
W(CRUISE CONTROL),GREIGE,TRIM4#
main58560-2J440-B0i199308-199410
W(CRUISE CONTROL),GRAY,TRIM1#
main58560-2J440-E0i199308-199410
W(CRUISE CONTROL),GREIGE,TRIM4#
main58560-2J450-B0i199308-199912
W(FRONT CONSOLE BOX & CRUISE CONTROL),GRAY,TRIM1#
sub58560-2J450
main58560-2J450-E0i199308-199608
W(FRONT CONSOLE BOX & CRUISE CONTROL),GREIGE,TRIM4#
sub58560-2J450
main58560-2J460-B0i199308-199410
W(CAPTAIN SEAT & CRUISE CONTROL),GRAY,TRIM1#
main58560-2J460-E0i199308-199410
W(CAPTAIN SEAT & CRUISE CONTROL),GREIGE,TRIM4#
main58560-2J470-B0i199308-199912
W(CRUISE CONTROL & AIR CONDITIONER & COOL BOX),GRAY,TRIM1#
sub58560-2J470
main58560-2J470-E0i199308-199608
W(CRUISE CONTROL & AIR CONDITIONER & COOL BOX),GREIGE,TRIM4#
sub58560-2J470
main58560-2J480-B0i199308-199608
W(CAPTAIN SEAT),GRAY,TRIM1#
main58560-2J480-E0i199308-199608
W(CAPTAIN SEAT),GREIGE,TRIM4#
main58560-2J490-B0i199308-199608
W(CAPTAIN SEAT & CRUISE CONTROL),GRAY,TRIM1#
main58560-2J490-E0i199308-199608
W(CAPTAIN SEAT & CRUISE CONTROL),GREIGE,TRIM4#
main58560-2J500-B0i199308-199608
W(CAPTAIN SEAT & FRONT CONSOLE BOX & CRUISE CONTROL),GRAY,TRIM1#
main58560-2J500-E0i199308-199608
W(CAPTAIN SEAT & FRONT CONSOLE BOX & CRUISE CONTROL),GREIGE,TRIM4#
main58560-2J501-B0i199608-199912
W(CAPTAIN SEAT & *CRC),BLUISH GRAY,TRIM1#
sub58560-2J501
main58560-2J510-B0i199308-199608
W(FRONT CONSOLE BOX & CAPTAIN SEAT),GRAY,TRIM1#
main58560-2J510-E0i199308-199608
W(FRONT CONSOLE BOX & CAPTAIN SEAT),GREIGE,TRIM4#
main58560-2J511-B1i199608-199912
GRAY,TRIM1#
sub58560-2J511
main58560-2J620-B1i199308-199608
LEADED SPEC,GRAY,TRIM1#
sub58560-2J620
main58560-2J620-E0i199508-199608
LEADED SPEC,MD. GREIGE,TRIM4#
sub58560-2J620
main58560-2J710-B0i199308-199608
LEADED SPEC & W(FRONT CONSOLE BOX),GRAY,TRIM1#
main58560-2J710-E0i199508-199608
W(FRONT CONSOLE BOX & CAPTAIN SEAT),ANTELOPE,TRIM4#
main58560-2J710-E0i199308-199408
LEADED SPEC & W(FRONT CONSOLE BOX),ANTELOPE,TRIM4#
main58560-2J711-B0i199608-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
sub58560-2J711
main58560-2J720-B0i199308-199608
LEADED SPEC & W(AIR CONDITIONER & COOL BOX),GRAY,TRIM1#
main58560-2J720-E0i199308-199408
LEADED SPEC & W(AIR CONDITIONER & COOL BOX),ANTELOPE,TRIM4#
main58560-2J720-E0i199508-199608
W(CAPTAIN SEAT & AIR CONDITI0NER & COOL BOX),ANTELOPE,TRIM4#
main58560-2J721-B0i199608-199912
W(CAPTAIN SEAT & *AIC & COOL BOX),BLUISH GRAY,TRIM1#
sub58560-2J721
main58560-2J730-B0i199311-199912
GRAY,TRIM1#
sub58560-2J730
main58560-2J740-B0i199311-199608
W(CAPTAIN SEAT),GRAY,TRIM1#
sub58560-2J740
main58560-2J740-B1i199608-199912
W(CAPTAIN SEAT),GRAY,TRIM1#
sub58560-2J740
main58560-2J740-E0i199311-199608
W(CAPTAIN SEAT),GREIGE,TRIM4#
sub58560-2J740
main58560-2J740-E1i199608-199801
W(CAPTAIN SEAT),GREIGE,TRIM4#
sub58560-2J740
main58560-2J750-B0i199311-199912
GRAY,TRIM1#
sub58560-2J750
main58560-2J750-E0i199311-199801
GREIGE,TRIM4#
sub58560-2J750
main58560-2J760-B0i199311-199912
GRAY,TRIM1#
sub58560-2J760
main58560-2J770-B0i199311-199912
W(CRUISE CONTROL),GRAY,TRIM1#
sub58560-2J770
main58560-2J770-E0i199311-199801
W(CRUISE CONTROL),GREIGE,TRIM4#
sub58560-2J770
main58560-2J780-B0i199311-199608
W(CAPTAIN SEAT & CRUISE CONTROL),GRAY,TRIM1#
sub58560-2J780
main58560-2J780-B1i199608-199912
W(CAPTAIN SEAT & CRUISE CONTROL),GRAY,TRIM1#
sub58560-2J780
main58560-2J780-E0i199311-199608
W(CAPTAIN SEAT & CRUISE CONTROL),GREIGE,TRIM4#
sub58560-2J780
main58560-2J780-E1i199608-199801
W(CAPTAIN SEAT & CRUISE CONTROL),GREIGE,TRIM4#
sub58560-2J780
main58560-2J870i199801-199912
main58560-2J870-B2i199408-199801
BLUISH GRAY,TRIM1#
main58560-2J880i199801-199912
W(COOL BOX)
main58560-2J880-B2i199408-199801
W(COOL BOX),BLUISH GRAY,TRIM1#
main58560-2R040-B0i199408-199410
W(*80),BLUISH GRAY,TRIM1#
main58560-2R041-B0i199410-199912
W(*80),GRAY,TRIM1#
sub58560-2R041
main58560-2R120-B0i199608-199912
W(CAPTAIN SEAT & CRUISE CONTROL & *AIC & COOL BOX),BLUISH GRAY,TRIM1#
sub58560-2R120
main58560-2R130-B0i199608-199912
W(REAR NO.1 SEAT 2+1(SEAT BACK SEPARATE)),BLUISH GRAY,TRIM1#
main58560-2R140-B0i199608-199912
W(REAR NO.1 SEAT 2+1(SEAT BACK SEPARATE) & COOL BOX),BLUISH GRAY,TRIM1#
main58560-2R170-B0i199608-199912
W(CAPTAIN SEAT & *AIC & COOL BOX),BLUISH GRAY,TRIM1#
sub58560-2R170
main58560-2R180-B0i199705-199912
CHINA SPEC,BLUISH GRAY,TRIM1#
main58560-2R180-E0i199705-199801
CHINA SPEC,MD. GREIGE,TRIM4#
main58560-95D20-03i199005-199108
W(CAPTAIN SEAT & COOL BOX),LIGHT GRAY,TRIM1#
main58560-95D20-05i199005-199108
W(CAPTAIN SEAT & COOL BOX),LIGHT GREIGE,TRIM4#
main58560-95D21-03i199005-199108
W(COOL BOX),LIGHT GRAY,TRIM1#
main58560-95D21-05i199005-199108
W(COOL BOX),LIGHT GREIGE,TRIM4#
main58560-95D26-03i199005-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main58560-95D26-05i199005-199308
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main58560-95D27-03i199005-199308
LIGHT GRAY,TRIM1#
main58560-95D27-05i199005-199308
LIGHT GREIGE,TRIM4#
main58560-95D32-03i199005-199108
W(COOL BOX),LIGHT GRAY,TRIM1#
main58560-95D34-03i199005-199308
SWITZERLAND SPEC,LIGHT GRAY,TRIM1#
sub58560-95D34
main58560-95D35-03i199005-199108
LIGHT GRAY,TRIM1#
main58560-95D37-03i199005-199108
W(CAPTAIN SEAT & COOL BOX),LIGHT GRAY,TRIM1#
main58560-95D37-05i199005-199108
W(CAPTAIN SEAT & COOL BOX),LIGHT GREIGE,TRIM4#
main58560-95D38-03i199005-199108
W(COOL BOX),LIGHT GRAY,TRIM1#
main58560-95D38-05i199005-199108
W(COOL BOX),LIGHT GREIGE,TRIM4#
main58560-95D39-03i199005-199108
DENMARK SPEC & W/O(REAR SEAT) & W(COOL BOX),LIGHT GRAY,TRIM1#
main58560-95D39-05i199005-199108
DENMARK SPEC & W/O(REAR SEAT) & W(COOL BOX),LIGHT GREIGE,TRIM4#
main58560-95D40-03i199005-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main58560-95D40-05i199005-199308
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main58560-95D41-03i199005-199308
ICELAND SPEC;SWEDEN SPEC;SWITZERLAND SPEC;GERMANY SPEC,LIGHT GRAY,TRIM1#
main58560-95D41-05i199005-199308
ICELAND SPEC;SWEDEN SPEC;SWITZERLAND SPEC;GERMANY SPEC,LIGHT GREIGE,TRIM4#
main58560-95D43-03i199005-199308
DENMARK SPEC & W/O(REAR SEAT),LIGHT GRAY,TRIM1#
main58560-95D43-05i199005-199308
DENMARK SPEC & W/O(REAR SEAT),LIGHT GREIGE,TRIM4#
main58560-95D47-03i199005-199308
LIGHT GRAY,TRIM1#
main58560-95D50-03i199005-199308
W(AIR CONDITIONER & COOL BOX),LIGHT GRAY,TRIM1#
sub58560-95D50
main58560-95D50-05i199005-199308
W(AIR CONDITIONER & COOL BOX),LIGHT GREIGE,TRIM4#
sub58560-95D50
main58560-95D50-B0i199308-199912
W(AIR CONDITIONER & COOL BOX),GRAY,TRIM1#
sub58560-95D50
main58560-95D50-E0i199308-199608
W(AIR CONDITIONER & COOL BOX),GREIGE,TRIM4#
sub58560-95D50
main58560-95D58-03i199005-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main58560-95D58-05i199005-199308
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main58560-95D60-03i199005-199308
LIGHT GRAY,TRIM1#
main58560-95D60-05i199005-199308
LIGHT GREIGE,TRIM4#
main58560-95D62-03i199005-199108
LIGHT GRAY,TRIM1#
main58560-95D62-05i199005-199108
LIGHT GREIGE,TRIM4#
main58560-95D71-03i199005-199308
LIGHT GRAY,TRIM1#
sub58560-95D47
main58560-95D74-03i199005-199308
W(AIR CONDITIONER & COOL BOX),LIGHT GRAY,TRIM1#
sub58560-95D74
main58560-95D74-05i199005-199308
W(AIR CONDITIONER & COOL BOX),LIGHT GREIGE,TRIM4#
sub58560-95D74
main58560-95D74-B0i199308-199912
W(AIR CONDITIONER & COOL BOX),GRAY,TRIM1#
sub58560-95D74
main58560-95D74-E0i199308-199608
W(AIR CONDITIONER & COOL BOX),GREIGE,TRIM4#
sub58560-95D74
main58560-95D75-03i199005-199108
LIGHT GRAY,TRIM1#
main58560-95D78-03i199005-199108
LIGHT GRAY,TRIM1#
main58560-95D82-03i199005-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
sub58560-95D58
main58560-95D82-05i199005-199308
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
sub58560-95D58
main58560-95D84-03i199005-199308
LIGHT GRAY,TRIM1#
sub58560-95D60
main58560-95D84-05i199005-199308
LIGHT GREIGE,TRIM4#
sub58560-95D60
main58560-95D86-03i199005-199108
LIGHT GRAY,TRIM1#
sub58560-95D62
main58560-95D86-05i199005-199108
LIGHT GREIGE,TRIM4#
sub58560-95D62
58561CSILENCER, FRONT FLOOR, NO.1
main58561-95D00i199005-199912
main58561-95D01i199005-199912
58624DPAD, CENTER FLOOR SILENCER
main58624-28140i199608-199912
W(CAPTAIN SEAT & CRUISE CONTROL)
main58624-28140i199608-199912
W(CAPTAIN SEAT)
main58624-95D00i199005-199108
main58624-95D00i199705-199912
CHINA SPEC
main58624-95D01i199608-199912
ISRAEL SPEC & W(COOL BOX)
main58624-95D01i199005-199108
SWITZERLAND SPEC
main58624-95D01i199005-199108
*FRG OR SWITZERLAND SPEC OR SWEDEN SPEC
main58624-95D01i199108-199406
W(COOL BOX)
main58624-95D01i199108-199608
main58624-95D01i199308-199608
W(*80 & CRUISE CONTROL)
main58624-95D01i199308-199608
W(AIR CONDITIONER & COOL BOX) OR W(FRONT CONS0LE BOX)
main58624-95D01i199308-199608
W(AIR CONDITIONER & COOL BOX) OR W(FRONT CONSOLE BOX)
main58624-95D01i199406-199608
W(AIR CONDITIONER & COOL BOX)
main58624-95D01i199608-199912
W(AUTO DRIVE)
main58624-95D01i199608-199912
W(*AIC & COOL BOX)
main58624-95D01i199608-199912
W(REAR N0.1 SEAT 2+1(SEAT BACK SEPARATE))
main58624-95D02i199005-199912
W(CAPTAIN SEAT)
main58624-95D07i199005-199308
DENMARK SPEC & W/O(REAR SEAT)
main58624-95D07i199608-199912
W/O(REAR SEAT)
main58624-95D07i199308-199608
DENMARK SPEC & W/0(REAR SEAT)
main58624-95D08i199308-199411
LEADED SPEC
main58624-95D08i199308-199608
main58624-95D08i199005-199608
W(CAPTAIN SEAT)
58627APAD, CENTER FLOOR SILENCER, REAR
main58627-95D00i199005-199912
main58627-95D00i199005-199103
AUSTRIA SPEC & W(CAPTAIN SEAT)
main58627-95D00i199108-199608
W(AIR CONDITIONER & COOL BOX)
main58627-95D00i199608-199912
W(*AIC & COOL BOX);W(CAPTAIN SEAT & *AIC & COOL BOX)
main58627-95D01i199608-199912
W/O(REAR SEAT)
main58627-95D01i199308-199608
DENMARK SPEC & W/0(REAR SEAT)
main58627-95D01i199005-199308
DENMARK SPEC & W/O(REAR SEAT)
main58627-95D02i199005-199912
67913PLATE, FRONT DOOR SCUFF, RH
main67913-95D00-03i199005-199308
GRAY,TRIM1#
sub67913-95D00
main67913-95D00-05i199005-199308
GREIGE,TRIM4#
sub67913-95D00
main67913-95D00-B0i199308-199912
GRAY,TRIM1#
sub67913-95D00
main67913-95D00-E2i199308-199801
GREIGE,TRIM4#
sub67913-95D00
main67913-95D01-03i199005-199308
GRAY,TRIM1#
sub67913-95D01
main67913-95D01-05i199005-199308
GREIGE,TRIM4#
sub67913-95D01
main67913-95D01-B0i199308-199912
GRAY,TRIM1#
sub67913-95D01
main67913-95D01-E2i199308-199801
GREIGE,TRIM4#
sub67913-95D01
67914PLATE, FRONT DOOR SCUFF, LH
main67914-95D00-03i199005-199308
GRAY,TRIM1#
sub67914-95D00
main67914-95D00-05i199005-199308
GREIGE,TRIM4#
sub67914-95D00
main67914-95D00-B0i199308-199912
GRAY,TRIM1#
sub67914-95D00
main67914-95D00-E2i199308-199801
GREIGE,TRIM4#
sub67914-95D00
main67914-95D01-03i199005-199308
GRAY,TRIM1#
sub67914-95D01
main67914-95D01-05i199005-199308
GREIGE,TRIM4#
sub67914-95D01
main67914-95D01-B0i199308-199912
GRAY,TRIM1#
sub67914-95D01
main67914-95D01-E2i199308-199801
GREIGE,TRIM4#
sub67914-95D01
67918APLATE, REAR DOOR SCUFF, LH
main67918-95D00-03i199005-199108
GRAY,TRIM1#
sub67918-95D01
main67918-95D00-05i199005-199108
GREIGE,TRIM4#
sub67918-95D01
main67918-95D01-03i199005-199308
W(CAPTAIN SEAT),GRAY,TRIM1#
sub67918-95D01
main67918-95D01-03i199005-199308
GRAY,TRIM1#
sub67918-95D01
main67918-95D01-05i199005-199308
W(CAPTAIN SEAT),GREIGE,TRIM4#
sub67918-95D01
main67918-95D01-05i199005-199308
GREIGE,TRIM4#
sub67918-95D01
main67918-95D01-B0i199308-199912
GRAY,TRIM1#
sub67918-95D01
main67918-95D01-E2i199308-199801
GREIGE,TRIM4#
sub67918-95D01
67935PLATE, BACK DOOR SCUFF
main67935-95D00-03i199005-199308
GRAY,TRIM1#
sub67935-95D00
main67935-95D00-05i199005-199308
GREIGE,TRIM4#
sub67935-95D00
main67935-95D00-B0i199308-199912
GRAY,TRIM1#
sub67935-95D00
main67935-95D00-E2i199308-199801
GREIGE,TRIM4#
sub67935-95D00
7455
6792117030RETAINER, FRONT DOOR SCUFF PLATE
main67921-17030
6792118010RETAINER, FRONT DOOR SCUFF PLATE
main67921-18010
6792195501RETAINER, FRONT DOOR SCUFF PLATE
main67921-95501
6792195D04RETAINER, FRONT DOOR SCUFF PLATE
main67921-95D04
9016750040
main90167-50040
9016750043
main90167-50043
9018905055
main90189-05055
9018905110
main90189-05110
9046709123
main90467-09123
9053018002
main90530-18002

19 parts on this diagram · 2 diagrams in section

FLOOR MAT & SILENCER PAD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
