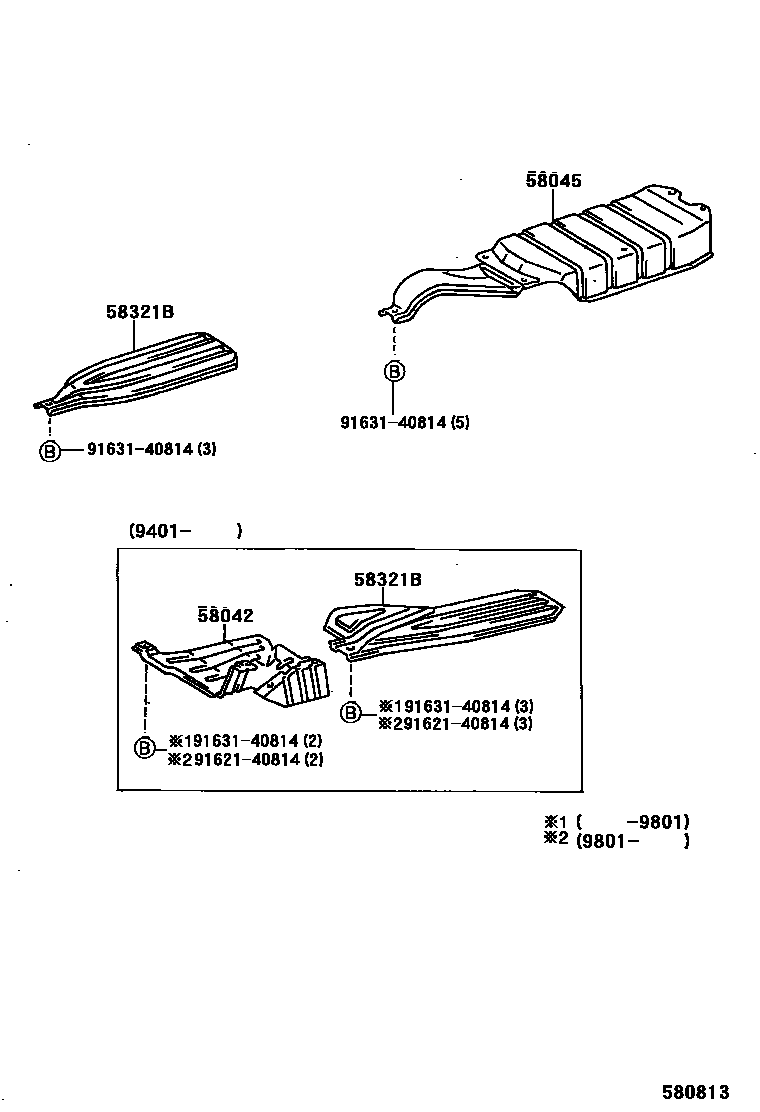

FLOOR INSULATOR

0001 1 0004 1

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-28010iTCR1#..ATM199401-199912

main58042-28020iTCR1#,2#..MTM199401-199912

58045INSULATOR SUB-ASSY, REAR FLOOR HEAT

main58045-95D00iTCR11..RHD..MTM;TCR1#..ARL,GEN,V199005-199912

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58041-28020iTCR1#,2#199401-199912

main58321-95D02iTCR1#,2#199005-199401

9162140814

main91621-40814

9163140814

main91631-40814

5 parts on this diagram · 2 diagrams in section
