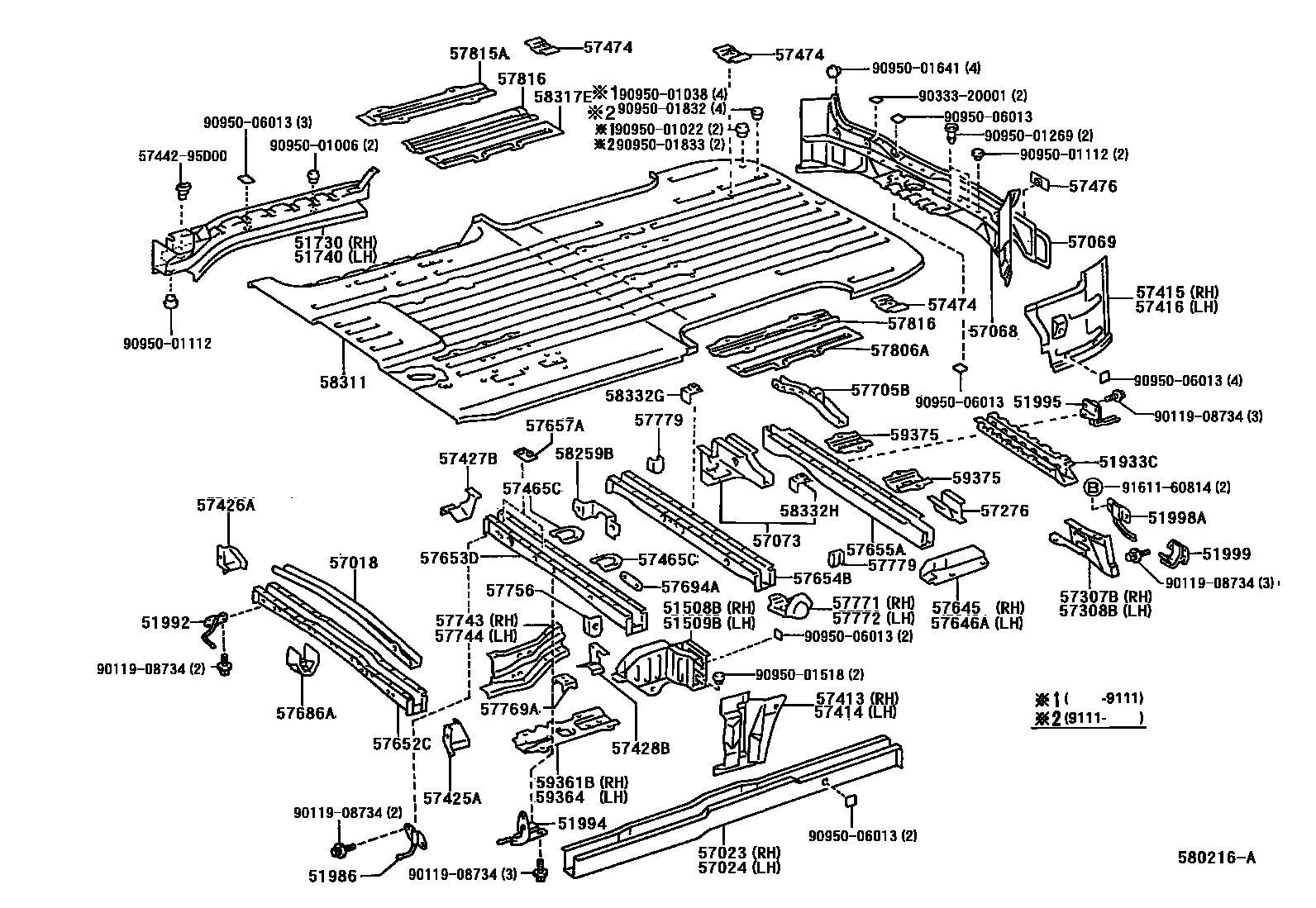

REAR FLOOR PANEL & REAR FLOOR MEMBER
51508BBRACKET SUB-ASSY, LOWER CONTROL LINK, RH
51509BBRACKET SUB-ASSY, LOWER CONTROL LINK, LH
51730STEP ASSY, REAR FLOOR, RH
51740STEP ASSY, REAR FLOOR, LH
51933CSTOPPER, SPARE WHEEL
51986HANGER, EXHAUST PIPE SUPPORT, NO.3
UNLEADED FUEL
51992HANGER, EXHAUST PIPE SUPPORT, NO.2
51994HANGER, EXHAUST PIPE, NO.4
UNLEADED FUEL
51995HANGER, EXHAUST PIPE, NO.5
51998AHANGER, EXHAUST PIPE SUPPORT, NO.6
51999HANGER, EXHAUST PIPE SUPPORT, NO.7
57018BRACKET SUB-ASSY, CROSSMEMBER FLOOR, NO.1
57023MEMBER SUB-ASSY, REAR SIDE, RH
57024MEMBER SUB-ASSY, REAR SIDE, LH
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
HONG KONG SPEC
LEADED GASOLINE SPEC
57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57073BRACKET SUB-ASSY, LATERAL ROD
57276GUSSET, REAR FLOOR CROSSMEMBER, NO.4
57307BOUTRIGGER SUB-ASSY, NO.4 RH
57308BOUTRIGGER SUB-ASSY, NO.4 LH
57413RAIL, FLOOR SIDE, CENTER RH
57414RAIL, FLOOR SIDE, CENTER LH
57415RAIL, FLOOR SIDE, REAR RH
57416RAIL, FLOOR SIDE, REAR LH
57425APLATE, REAR STEP, FRONT RH
57426APLATE, REAR STEP, FRONT LH
57427BPLATE, REAR STEP, REAR RH
57428BPLATE, REAR STEP, REAR LH
57465CRETAINER, BELT ANCHOR, NO.2
GERMANY OR SWITZERLAND OR SWEDEN
SWITZERLAND SPEC
GERMANY OR SWITZERLAND OR SWEDEN OR AUSTRIA
AUSTRIA SPEC
57474PLATE, BELT ANCHOR, NO.1
W(RR NO.1 SEAT = 1+1 CAPTAIN,W(ARM REST)),LH
LH
FRONT
RH
W(RR NO.1 SEAT = 1+1 CAPTAIN,W(ARM REST)),RH
REAR
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57645REINFORCEMENT, REAR SIDE MEMBER, RH
57646AREINFORCEMENT, REAR SIDE MEMBER, LH
57652CMEMBER, REAR FLOOR CROSS, NO.1
57653DMEMBER, REAR FLOOR CROSS, NO.2
57654BMEMBER, REAR FLOOR CROSS, NO.3
57655AMEMBER, REAR FLOOR CROSS, NO.4
57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57694AREINFORCEMENT, FUEL TANK SUPPORT, NO.2
57705BREINFORCEMENT SUB-ASSY, REAR ABSORBER MOUNTING, RH
57743BRACKET, UPPER CONTROL LINK, INNER RH
57744BRACKET, UPPER CONTROL LINK, INNER LH
57756PLATE, REAR FLOOR NO.2 CROSSMEMBER
57769AREINFORCEMENT, UPPER CONTROL LINK BRACKET
57771PLATE, REAR SPRING, RH
57772PLATE, REAR SPRING, LH
57779RETAINER, UPPER CONTROL LINK, UPPER
57806AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2
57815AREINFORCEMENT, BELT ANCHOR, RH
W(RR N0.1 SEAT = 1+1 CAPTAIN(RETRCT),W(ARM REST))
CHINA SPEC
57816REINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
W(RR N0.1 SEAT = 1+1 CAPTAIN(RETRCT),W(ARM REST))
W(RR NO.1 SEAT = 1+1 CAPTAIN,W(ARM REST))
58259BREINFORCEMENT, PARKING BRAKE CABLE, NO.1
58311PAN, REAR FLOOR
W(RR N0.1 SEAT = 1+1 CAPTAIN(RETRCT),W(ARM REST))
W(REAR NO.1 SEAT = 1+1 CAPTAIN(RETRCT),W(ARM REST))
W(RR N0.1 SEAT = 1+1 CAPTAIN(RETRCT),W(ARM REST))
W(REAR NO.1 SEAT = 1+1 CAPTAIN(RETRCT),W(ARM REST))
*FRG OR SWITZERLAND SPEC OR SWEDEN SPEC
W(REAR NO.1 SEAT = 2+1(SEAT BACK SEPARATE))
*FRG OR SWITZERLAND SPEC OR SWEDEN SPEC OR ICELAND SPEC OR AUSTRIA SPEC
*FRG OR SWITZERLAND SPEC OR SWEDEN SPEC OR ICELAND SPEC
DENMARK SPEC
W(RR NO.1 SEAT = 1+1 CAPTAIN,W(ARM REST))
58317ERETAINER, REAR SEAT, NO.2
58332GBRACKET, REAR FLOOR HEAT INSULATOR, NO.4
58332HBRACKET, REAR FLOOR HEAT INSULATOR, NO.4
59361BRETAINER, REAR SEAT, NO.1 A
59364RETAINER, REAR SEAT, NO.1 D
59375RETAINER, REAR SEAT, NO.4
5744295D00PLUG, STEP PANEL HOLE
9011908734
9033320001
9095001006
9095001022
9095001038
9095001112
9095001269
9095001518
9095001641
9095001832
9095001833
9095006013
9161160814
73 parts on this diagram · 2 diagrams in section
