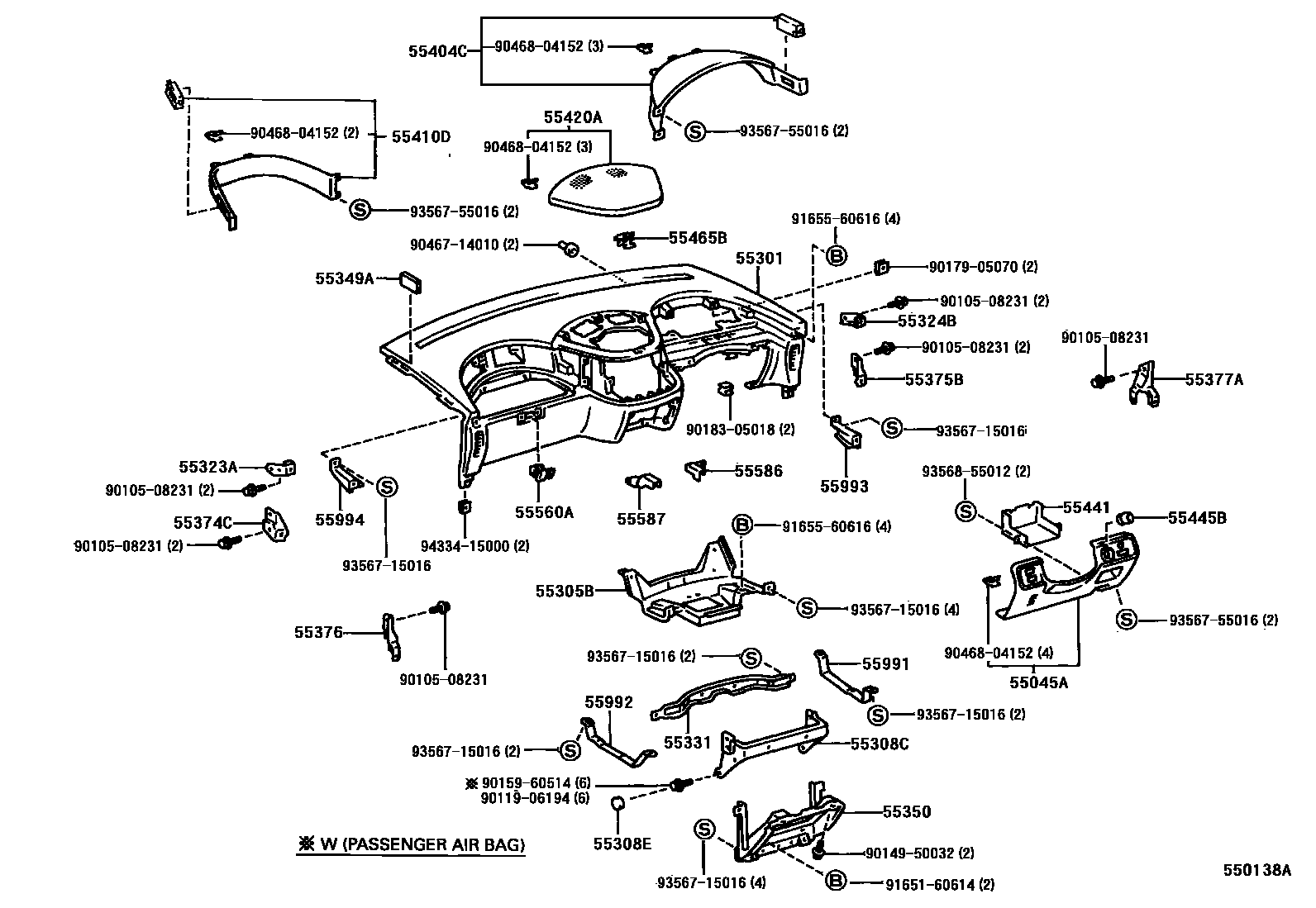

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

55045APANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH

main55045-95D00-03iTCR1#,2#..RHD199005-199308

GRAY,TRIM1#

sub55045-95D00

main55045-95D00-05iTCR11,21..RHD199005-199308

GREIGE,TRIM4#

sub55045-95D00

main55045-95D00-B0iTCR1#..RHD199308-199912

GRAY,TRIM1#

sub55045-95D00

main55045-95D00-E1iTCR11..RHD199308-199801

GREIGE,TRIM4#

sub55045-95D00

55301PANEL SUB-ASSY, INSTRUMENT

main55301-28030-03iTCR1#,2#..LHD199005-199308

GRAY,TRIM1#

sub55301-28030

main55301-28030-05iTCR11,21..LHD199005-199308

GREIGE,TRIM4#

sub55301-28030

main55301-28030-B0iTCR10..LHD..ATM199308-199912

GRAY,TRIM1#

sub55301-28030

main55301-28030-E0iTCR10..GEN199308-199801

GREIGE,TRIM4#

sub55301-28030

main55301-28040-03iTCR1#,2#..RHD199005-199308

GRAY,TRIM1#

sub55301-28040

main55301-28040-05iTCR11..RHD..W199005-199308

GREIGE,TRIM4#

sub55301-28040

main55301-28040-B0iTCR10..ARL;TCR11..RHD..W199308-199801

GRAY,TRIM1#

sub55301-28040

main55301-28040-E0iTCR11..RHD..W199308-199608

GREIGE,TRIM4#

sub55301-28040

main55301-28050-03iTCR11,21..ARL199108-199308

GRAY,TRIM1#

sub55301-28050

main55301-28050-05iTCR11,21..ARL199108-199308

GREIGE,TRIM4#

sub55301-28050

main55301-28050-B0iTCR11..ARL199308-199710

GRAY,TRIM1#

sub55301-28050

main55301-28050-E0iTCR11..ARL199308-199710

GREIGE,TRIM4#

sub55301-28050

main55301-28150-B0iTCR10..GEN199508-199912

W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#

main55301-28150-E0iTCR10..GEN199508-199801

W(*80,DRIVER SIDE & PASSENGER SIDE),MI. GREIGE,TRIM4#

main55301-28210-B0iTCR11..RHD..W199608-199708

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),GRAY,TRIM1#

sub55301-28250

main55301-28210-B0iTCR11..RHD..W199608-199708

W(*80,DRIVER SIDE & PASSENGER SIDE),GRAY,TRIM1#

sub55301-28250

main55301-28220-B0iTCR11..ARL199608-199708

UNLEADED GASOLINE SPEC;W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),GRAY,TRIM1#

sub55301-28260

main55301-28220-E0iTCR11..ARL199608-199708

UNLEADED GASOLINE SPEC;W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),GREIGE,TRIM4#

sub55301-28260

main55301-28250-B0iTCR10..ARL;TCR11..RHD..W199708-199912

W(*80,DRIVER SIDE & PASSENGER SIDE),GRAY,TRIM1#

main55301-28260-B0iTCR11..ARL199708-199912

W(*80,DRIVER SIDE & PASSENGER SIDE),GRAY,TRIM1#

55305BREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1

main55305-95D00iTCR1#,2#..LHD199005-199912

main55305-95D01iTCR1#,2#..RHD199005-199912

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-28021iTCR10..GEN199508-199608

main55308-28040iTCR11..ARL199608-199912

UNLEADED GASOLINE SPEC

main55308-28040iTCR11..ARL199608-199912

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

main55308-28050iTCR1#,2#..LHD..(GEN,W)199608-199912

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

main55308-28060iTCR11..RHD..W199608-199912

main55308-95D00iTCR10..V199005-199912

main55308-95D00iTCR10..GEN199508-199912

LEADED GASOLINE SPEC

main55308-95D01iTCR11..RHD..MTM199608-199801

LEADED GASOLINE SPEC

main55308-95D01iTCR1#..ARL199005-199710

55308ECAP, INSTRUMENT PANEL BRACKET

main90339-12007-01iTCR10,20..W199005-199308

BLACK,TRIM1#,4#

sub90339-12007

main90339-12007-01iTCR10,20..W199005-199308

BLACK,TRIM1#

sub90339-12007

main90339-12007-03iTCR10,20..W199005-199308

LIGHT GRAY,TRIM11

sub90339-12007

main90339-12007-03iTCR11,21..W199005-199308

LIGHT GRAY,TRIM1#

sub90339-12007

main90339-12007-05iTCR11,21..W199005-199308

LIGHT GREIGE,TRIM41

sub90339-12007

main90339-12007-20iTCR11,21..W199408-199608

BLACK,TRIM1#,4#

sub90339-12007

main90339-12007-20iTCR11,21..W199608-199801

BLACK,TRIM11

sub90339-12007

main90339-12007-20iTCR1#,2#..W199308-199912

BLACK,TRIM1#

sub90339-12007

main90339-12007-20iTCR11,21..W199308-199408

BLACK,TRIM11,41

sub90339-12007

main90339-12007-B1iTCR1#,2#..W199308-199801

GRAY,TRIM1#

sub90339-12007

main90339-12007-E2iTCR11,21..W199308-199408

GREIGE,TRIM4#

sub90339-12007

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55323-95D00iTCR1#,2#199005-199912

main55323-95D00iTCR1#,2#..ARL,V,W199508-199608

LEADED GASOLINE SPEC

55324BBRACKET, INSTRUMENT PANEL, NO.4

main55324-95D00iTCR10,2#;TCR11..ATM;TCR11..LHD..MTM199005-199912

55331REINFORCEMENT, INSTRUMENT PANEL

main55331-95D00iTCR1#,2#..LHD199005-199912

main55331-95D01iTCR1#,2#..RHD199005-199912

55349ACUSHION, INSTRUMENT PANEL

main55349-28010iTCR1#,2#199005-199912

55350BRACE ASSY, INSTRUMENT PANEL

main55350-95D00iTCR1#,2#..LHD199005-199912

main55350-95D01iTCR1#,2#..RHD199005-199912

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55306-28030iTCR10..GEN199508-199608

main55374-95D00iTCR11..RHD..MTM199508-199801

LEADED GASOLINE SPEC

main55374-95D00iTCR1#,2#199005-199912

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-95D00iTCR11..RHD;TCR10..ARL,V199005-199912

main55375-95D00iTCR10..GEN199608-199912

LEADED GASOLINE SPEC

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-95D00iTCR1#,2#199005-199912

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-95D00iTCR10,2#;TCR11..ATM;TCR11..LHD..MTM199005-199912

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-28140iTCR11..ARL199810-199912

HONG KONG SPEC

main55404-95D01iTCR1#,2#..LHD199005-199912

main55404-95D02iTCR1#,2#..RHD199005-199912

55410DPANEL ASSY, INSTRUMENT CLUSTER FINISH, END

main55410-28040iTCR11..ARL199810-199912

HONG KONG SPEC

main55410-95D00iTCR1#,2#..LHD199005-199912

main55410-95D01iTCR1#,2#..RHD199005-199912

55420APANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55420-28010-B0iTCR1#,2#..LHD..(V,W)199108-199912

GRAY,TRIM1#

sub55420-28010

main55420-28010-E1iTCR11,21..LHD199108-199608

GREIGE,TRIM4#

sub55420-28010

main55420-28020-B0iTCR1#,21..ARL199108-199912

GRAY,TRIM1#

sub55420-28020

main55420-28020-E1iTCR11..ARL199108-199801

GREIGE,TRIM4#

sub55420-28020

main55420-28030-B0iTCR10..GEN199308-199912

GRAY,TRIM1#

main55420-28030-B0iTCR11,21..LHD199108-199608

W(SECURITY SYSTEM),GRAY,TRIM1#

main55420-28030-E1iTCR11,21..LHD199108-199608

W(SECURITY SYSTEM),GREIGE,TRIM4#

main55420-28030-E1iTCR10..GEN199308-199801

GREIGE,TRIM4#

main55420-28040-B0iTCR11..RHD..W199108-199912

W(SECURITY SYSTEM),GRAY,TRIM1#

main55420-28040-B0iTCR1#..ARL199408-199912

NEW ZEALAND SPEC,GRAY,TRIM1#

main55420-28040-E1iTCR11..RHD..W199108-199608

GREIGE,TRIM4#

main55420-28040-E1iTCR11..ARL199408-199801

W(SECURITY SYSTEM),GREIGE,TRIM4#

main55420-95D00-03iTCR1#,2#..LHD199005-199108

GRAY,TRIM1#

sub55420-95D00

main55420-95D00-05iTCR11,21..LHD199005-199108

GREIGE,TRIM4#

sub55420-95D00

main55420-95D01-03iTCR1#,2#..RHD199005-199108

GRAY,TRIM1#

sub55420-95D01

main55420-95D01-05iTCR11,21..RHD199005-199108

GREIGE,TRIM4#

sub55420-95D01

main55420-95D02-03iTCR11,21..LHD199005-199108

W(SECURITY SYSTEM),GRAY,TRIM1#

sub55420-95D02

main55420-95D02-05iTCR11,21..LHD199005-199108

W(SECURITY SYSTEM),GREIGE,TRIM4#

sub55420-95D02

main55420-95D03-03iTCR11..RHD..W199005-199108

W(SECURITY SYSTEM),GRAY,TRIM1#

sub55420-95D03

main55420-95D03-05iTCR11..RHD..W199005-199108

W(SECURITY SYSTEM),GREIGE,TRIM4#

sub55420-95D03

55441BOX, INSTRUMENT PANEL

main55441-95D00iTCR10..V199005-199912

main55441-95D00iTCR10..GEN199508-199912

LEADED GASOLINE SPEC

main55441-95D01iTCR1#,2#..RHD199005-199912

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-20150iTCR11..RHD..MTM199608-199912

LEADED GASOLINE SPEC

main55445-20150iTCR1#,2#199005-199608

main55445-28010iTCR1#,2#..ARL,W199608-199912

main55445-95D00iTCR11,21..ARL199108-199608

55465BKNOB, INSTRUMENT PANEL BOX LOCK

main55465-28030iTCR1#,2#199005-199912

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-95D00-03iTCR10,20199005-199308

GRAY,TRIM1#

sub55560-95D00

55586SUPPORT, SHELL BOX, NO.1

main55586-28010iTCR10,2#;TCR11..ATM;TCR11..LHD..MTM199005-199912

55587SUPPORT, SHELL BOX, NO.2

main55587-28010iTCR10,2#;TCR11..ATM;TCR11..LHD..MTM199005-199912

55991BRACKET, DEFROSTER DUCT, NO.1

main55991-95D00iTCR1#,2#199005-199912

55992BRACKET, DEFROSTER DUCT, NO.2

main55992-95D00iTCR1#,2#199005-199912

55993BRACKET, DEFROSTER DUCT, NO.3

main55993-28010iTCR1#,2#..ARL,V,W199508-199912

LEADED GASOLINE SPEC

main55993-28010iTCR1#..ARL,V199105-199912

55994BRACKET, DEFROSTER DUCT, NO.4

main55994-28010iTCR10..V199105-199912

main55994-28010iTCR1#,2#..ARL,V,W199508-199912

LEADED GASOLINE SPEC

9010508231

main90105-08231

9011906194

main90119-06194

9014950032

main90149-50032

9015960514

main90159-60514

9017905070

main90179-05070

9018305018

main90183-05018

9046714010

main90467-14010

9046804152

main90468-04152

9165160614

main91651-60614

9165560616

main91655-60616

9356715016

main93567-15016

9356755016

main93567-55016

9356855012

main93568-55012

9433415000

main94334-15000

41 parts on this diagram · 7 diagrams in section
