HOOD LOCK & HINGE

53337ABRACKET, HOOD STAY, LH

main53337-28010iTCR1#,2#199510-199912

sub53337-47010

main53337-95D01iTCR1#,2#199005-199510

53410HINGE ASSY, HOOD, RH

main53410-95D00iTCR1#,2#199005-199912

53420HINGE ASSY, HOOD, LH

main53420-95D00iTCR1#,2#199005-199912

53421AARM, HOOD HINGE, RH

main53421-95D00iTCR1#,2#199005-199912

53422AARM, HOOD HINGE, LH

main53421-95D00iTCR1#,2#199005-199912

53451ROD, HOOD SUPPORT

main53450-28030iTCR1#,2#199510-199912

main53450-95D00iTCR1#,2#199005-199510

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-01585iTCR1#,2#199005-199912

53455CLAMP, HOOD SUPPORT ROD

main53455-95D00iTCR1#,2#199005-199912

53510LOCK ASSY, HOOD

main53510-95D00iTCR11,21..LHD199005-199608

W(SECURITY SYSTEM)

main53510-95D00iTCR10..GEN199308-199912

main53510-95D01iTCR1#,2#..LHD..(V,W)199005-199912

main53510-95D02iTCR1#,2#..RHD199005-199408

main53510-95D03iTCR11..RHD..W199108-199912

main53510-95D03iTCR11..RHD..W199005-199108

W(SECURITY SYSTEM)

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020-01iTCR1#..GL..(ARL,GEN)199408-199409

NEW BLACK,TRIM1#,4#

sub53601-10020

sub53601-20060

main53601-10020-01iTCR10..ARL,V199408-199409

NEW BLACK,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-15iTCR11,21..ARL199005-199308

LIGHT GREIGE,TRIM4#

sub53601-10020

sub53601-20060

main53601-10020-33iTCR1#,2#..ARL199005-199308

LIGHT GRAY,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-B2iTCR1#..ARL,GEN199308-199408

LIGHT GRAY,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-C0iTCR1#..GL..(ARL,GEN)199409-199608

BLACK,TRIM11,41

sub53601-10020

sub53601-20060

main53601-10020-C0iTCR10..ARL,V199409-199608

BLACK,TRIM11

sub53601-10020

sub53601-20060

main53601-10020-C0iTCR1#..ARL,GEN,V199801-199912

BLACK,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-E5iTCR1#..GL..(ARL,GEN)199308-199408

LIGHT GREIGE,TRIM4#

sub53601-10020

sub53601-20060

main53601-20060-45iTCR11,21..W199005-199308

LIGHT GREIGE,TRIM4#

sub53601-20060

main53601-20060-53iTCR1#,2#..W199005-199308

LIGHT GRAY,TRIM1#

sub53601-20060

main53601-20060-B0iTCR1#,2#..W199308-199408

LIGHT GRAY,TRIM1#

sub53601-20060

main53601-20060-C0iTCR11,21..W199408-199912

BLACK,TRIM1#

sub53601-20060

main53601-20060-C0iTCR10,20..W199408-199608

BLACK,TRIM1#,4#

sub53601-20060

main53601-20060-E2iTCR11,21..W199308-199408

LIGHT GREIGE,TRIM4#

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-95D00iTCR1#,2#199005-199912

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main90480-13020iTCR1#,2#199005-199912

64571ACOVER, HOOD HINGE

main64571-30020iTCR1#,2#199005-199912

8401

6455932010PIN, LUGGAGE DOOR HINGE

main64559-32010

9011906543

main90119-06543

9018305094

main90183-05094

9038906007

main90389-06007

9046709043

main90467-09043

9046905011

main90469-05011

9095901420

main90959-01420

9165140816

main91651-40816

9165160840

main91651-60840

9356755016

main93567-55016

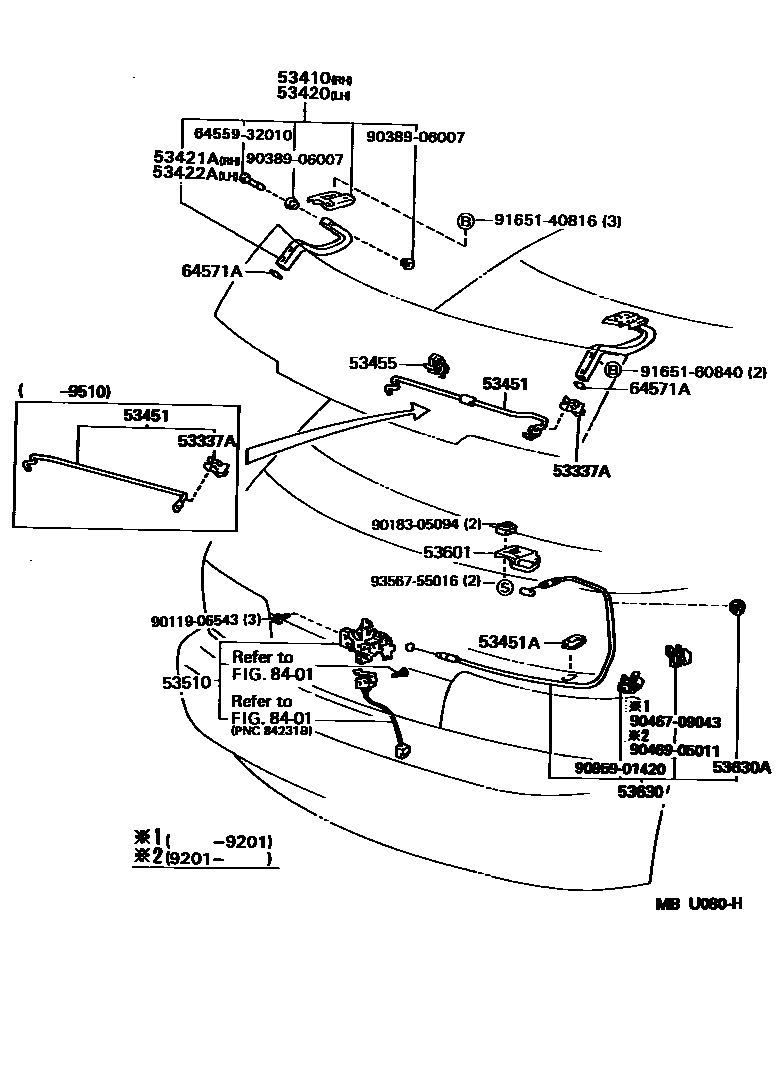

24 parts on this diagram · 1 diagram in section
