HOOD & FRONT FENDER

53231APANEL, LOWER SHROUD

main53901-95D00iTCR1#,2#199005-199912

53301HOOD SUB-ASSY

main53301-28030iTCR1#,2#199106-199510

sub53301-28040

sub53337-28010

sub53450-28030

sub91651-40816

main53301-28040iTCR1#,2#199510-199912

main53301-95D00iTCR1#,2#199005-199106

sub53301-28030

sub53183-28020

53301BCUSHION, HOOD BUMPER

main90541-15004iTCR1#,2#199005-199912

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-95D00iTCR1#,2#199005-199912

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iTCR1#,2#199005-199912

53383CSEAL, HOOD TO COWL TOP

main53383-95D00iTCR1#,2#199005-199912

53395CSEAL, HOOD TO RADIATOR GRILLE

main53395-28030iTCR1#,2#199308-199912

53801FENDER SUB-ASSY, FRONT RH

main53801-28050iTCR1#,2#199308-199608

sub53801-28070

main53801-28070iTCR1#,2#199608-199912

main53801-95D03iTCR1#,2#199005-199308

sub53801-28090

53802FENDER SUB-ASSY, FRONT LH

main53802-28050iTCR1#,2#199308-199608

sub53802-28070

main53802-28070iTCR1#,2#199608-199912

main53802-95D03iTCR1#,2#199005-199308

sub53802-28090

53867CRETAINER, FRONT SIDE PANEL, RH

main53867-28010iTCR1#,2#199005-199912

53868DRETAINER, FRONT SIDE PANEL, LH

main53867-28010iTCR1#,2#199005-199912

53875ALINER, FRONT FENDER, RH

main53875-95D00iTCR1#,2#199005-199912

53876ALINER, FRONT FENDER, LH

main53876-95D00iTCR1#,2#199005-199912

53879ARETAINER, FRONT FENDER LINER

main53879-14010iTCR1#,2#199005-199912

53882ESEAL, FRONT FENDER, RH

main53882-28010iTCR1#,2#199005-199912

53883DSEAL, FRONT FENDER, LH

main53882-28010iTCR1#,2#199005-199912

53891FPROTECTOR, FRONT FENDER LINER, RH

main53891-28010iTCR1#,2#199005-199912

53892FPROTECTOR, FRONT FENDER LINER, LH

main53891-28010iTCR1#,2#199005-199912

53895BSHIELD, FRONT FENDER SPLASH, FRONT RH

main53895-28010iTCR1#,2#199005-199012

sub53895-28020

main53895-28020iTCR1#,2#199012-199912

53896BSHIELD, FRONT FENDER SPLASH, FRONT LH

main53895-28010iTCR1#,2#199005-199012

sub53895-28020

main53895-28020iTCR1#,2#199012-199912

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main53881-28010iTCR11,2#..LHD199005-199912

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main53881-28010iTCR11,2#..LHD199005-199912

9011906400

main90119-06400

9011906709

main90119-06709

9011906779

main90119-06779

9015960496

main90159-60496

9016850064

main90168-50064

9017906236

main90179-06236

9018305038

main90183-05038

9018905019

main90189-05019

9018906027

main90189-06027

9018906065

main90189-06065

9020106537

main90201-06537

904670501801

main90467-0501801

9046711028

main90467-11028

9046804017

main90468-04017

9095001543

main90950-01543

9166140614

main91661-40614

9354085020

main93540-85020

9356055016

main93560-55016

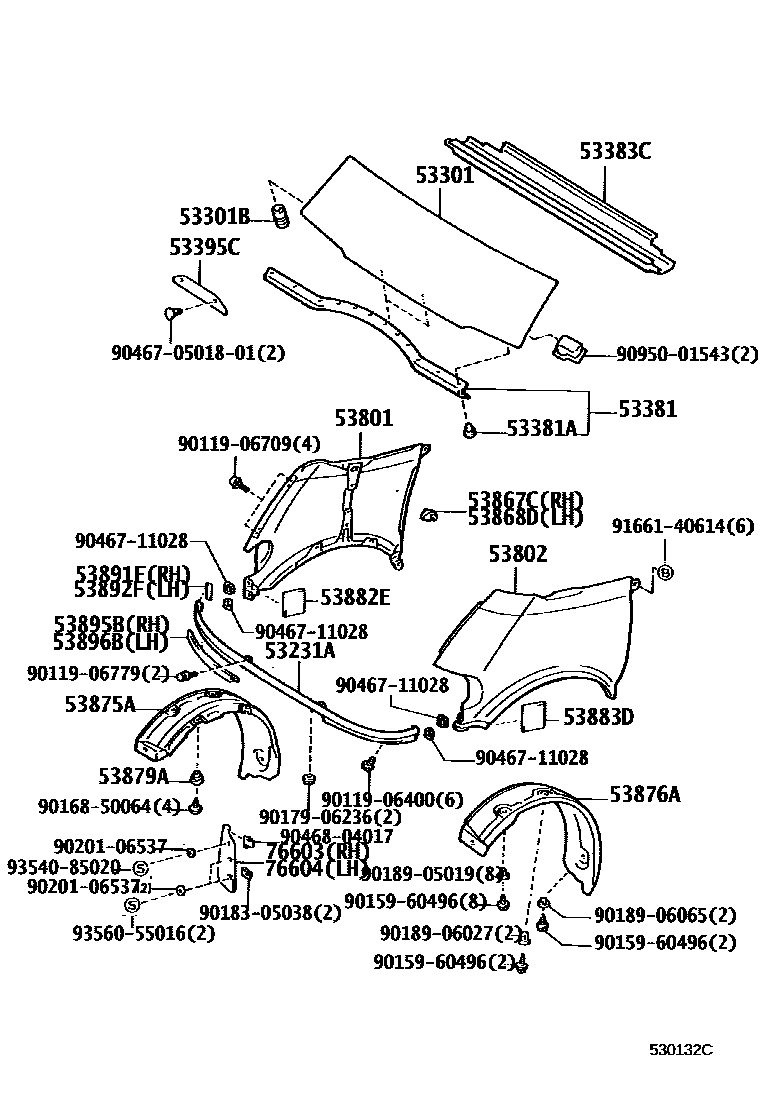

40 parts on this diagram · 1 diagram in section
