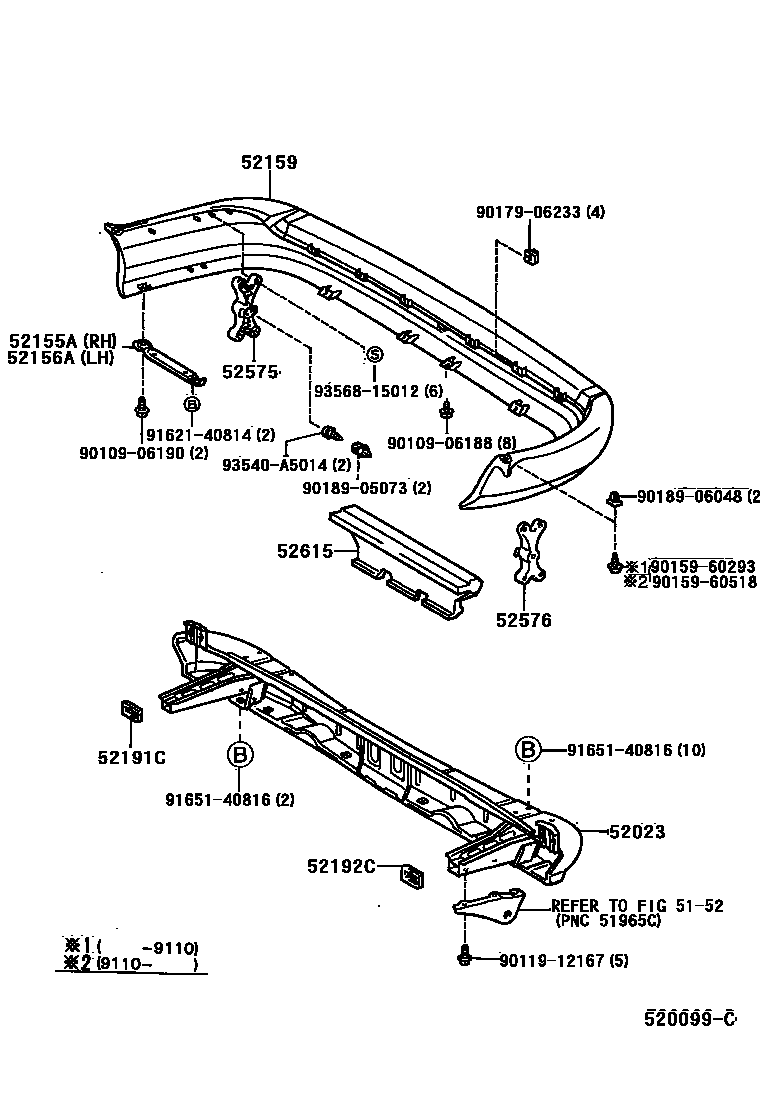

REAR BUMPER & BUMPER STAY

5152

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-95D01iTCR1#,2#199005-199912

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-95D00iTCR1#,2#199005-199912

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-95D00iTCR1#,2#199005-199912

52159COVER, REAR BUMPER

main52159-95D02-03iTCR1#,2#199108-199308

COOL GRAY,041 ,6L3 ,8G2 ,8H4 ,8H5

sub52159-95D02

main52159-95D02-03iTCR1#,2#199005-199108

COOL GRAY,041 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5

sub52159-95D02

main52159-95D02-06iTCR11,21199005-199108

BROWN GRAY,4K9 ,4L6

sub52159-95D02

main52159-95D02-13iTCR11,21199005-199108

WARM GRAY,3H8 ,3J7

sub52159-95D02

main52159-95D02-13iTCR11,21199108-199308

WARM GRAY,3H8 ,3J7 ,4K9

sub52159-95D02

main52159-95D02-13iTCR10,20199005-199308

WARM GRAY,3H8

sub52159-95D02

main52159-95D02-B0iTCR10,20..W199605-199607

SPECIAL EDITION(SWITZERLAND),COOL GRAY,8B2

sub52159-95D02

main52159-95D02-B0iTCR1#,2#199508-199608

COOL GRAY,041 ,191 ,750 ,751 ,8K0

sub52159-95D02

main52159-95D02-B0iTCR1#,2#199801-199912

COOL GRAY,041 ,191 ,199 ,6P9 ,751 ,936

sub52159-95D02

main52159-95D02-B0iTCR1#,2#199308-199408

COOL GRAY,041 ,6L3 ,751 ,8H4 ,8H5 ,8K2

sub52159-95D02

main52159-95D02-B0iTCR10,20..W199408-199602

SPECIAL EDITION(SWITZERLAND),COOL GRAY,8K0

sub52159-95D02

main52159-95D02-B0iTCR1#,2#199608-199801

COOL GRAY,041 ,191 ,6P9 ,751 ,936

sub52159-95D02

main52159-95D02-B0iTCR10,20..W199603-199604

SPECIAL EDITION(SWITZERLAND),COOL GRAY,574

sub52159-95D02

main52159-95D02-B0iTCR1#,2#199408-199508

COOL GRAY,041 ,191 ,750 ,751 ,8K2

sub52159-95D02

main52159-95D02-B1iTCR11,21..W199408-199608

WARM GRAY,193 ,3H8 ,3J7

sub52159-95D02

main52159-95D02-B1iTCR11,21..W199308-199608

WARM GRAY,3H8 ,3J7 ,4K9

sub52159-95D02

main52159-95D02-B1iTCR11,21..W199308-199608

WARM GRAY,193 ,3H8 ,3J7 ,4K9

sub52159-95D02

main52159-95D02-B1iTCR10..V199608-199801

WARM GRAY,193 ,3J7

sub52159-95D02

main52159-95D02-B1iTCR10..V199608-199610

WARM GRAY,193

sub52159-95D02

main52159-95D02-B1iTCR10..V199608-199610

WARM GRAY,3J7 ,4K9

sub52159-95D02

main52159-95D02-B1iTCR10..V199608-199801

WARM GRAY,193 ,3J7 ,4K9

sub52159-95D02

main52159-95D02-B1iTCR1#,2#199801-199912

WARM GRAY,042 ,3J7

sub52159-95D02

main52159-95D02-B1iTCR10,20..W199408-199602

SPECIAL EDITION(SWITZERLAND),WARM GRAY,193 ,3J7

sub52159-95D02

main52159-95D02-B1iTCR10,20..W199603-199604

SPECIAL EDITION(SWITZERLAND),WARM GRAY,3J7

sub52159-95D02

main52159-95D02-B1iTCR11..RHD..ATM..W199604-199605

SPECIAL EDITION(U.K.),WARM GRAY,193

sub52159-95D02

main52159-95D02-B1iTCR10,20..W199605-199607

SPECIAL EDITION(SWITZERLAND),WARM GRAY,3H7

sub52159-95D02

main52159-95D02-B1iTCR10,20..ARL,W199308-199608

WARM GRAY,3H8

sub52159-95D02

52191CSEAL, REAR BUMPER ARM, RH

main52191-95D00iTCR1#,2#199005-199912

52192CSEAL, REAR BUMPER ARM, LH

main52191-95D00iTCR1#,2#199005-199912

52575RETAINER, REAR BUMPER SIDE, RH

main52575-95D00iTCR1#,2#199005-199912

52576RETAINER, REAR BUMPER SIDE, LH

main52575-95D00iTCR1#,2#199005-199912

52615ABSORBER, REAR BUMPER ENERGY

main52615-28030iTCR1#,2#199810-199912

main52615-95D00iTCR1#,2#199005-199810

sub52615-28030

9010906188

main90109-06188

9010906190

main90109-06190

9011912167

main90119-12167

9015960293

main90159-60293

9015960518

main90159-60518

9017906233

main90179-06233

9018905073

main90189-05073

9018906048

main90189-06048

9162140814

main91621-40814

9165140816

main91651-40816

93540A5014

main93540-A5014

9356815012

main93568-15012

22 parts on this diagram · 1 diagram in section
