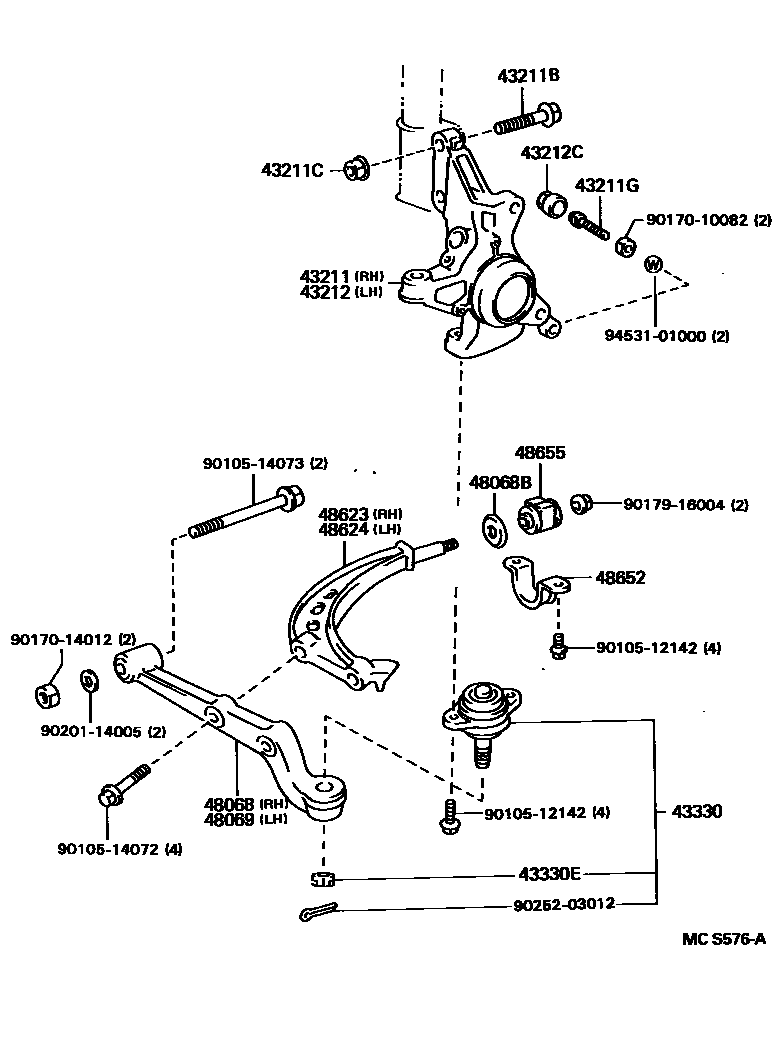

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-28040iTCR1#,2#199005-199912

main43211-28040iTCR21..ARL199108-199308

W(RR DISC BRAKE)

main43211-28050iTCR11..LHD199103-199308

AUSTRIA SPEC & W(RR DISC BRAKE)

main43211-28050iTCR21..ARL199108-199308

main43211-28050iTCR11..ARL199302-199912

W(ABS)

main43211-28050iTCR11..ARL199005-199608

W(ABS & DISC BRAKE)

43211BBOLT (FOR ABSORBER SETTING)

main90105-17002iTCR1#,2#199005-199308

main90105-17002iTCR1#,2#199308-199912

TYPE A:REFER TO ILLUSTRATION

main90105-17006iTCR10..LHD..ATM199410-199912

TYPE B

main90105-17007iTCR10..LHD..ATM199410-199912

TYPE C:REFER TO ILLUSTRATION

43211CNUT (FOR ABSORBER SETTING)

main90179-17001iTCR1#,2#199005-199308

main90179-17001iTCR1#,2#199308-199912

TYPE A:REFER TO ILLUSTRATION

main90179-17002iTCR10..LHD..ATM199410-199912

sub90179-17001

43211GBOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER)

main90106-10032iTCR1#,2#199005-199912

43212KNUCKLE, STEERING, LH

main43212-28020iTCR1#,2#199005-199912

main43212-28020iTCR21..ARL199108-199308

W(RR DISC BRAKE)

main43212-28030iTCR21;TCR11..RHD199005-199608

W(ABS & DISC BRAKE)

main43212-28030iTCR11..LHD199103-199308

AUSTRIA SPEC & W(RR DISC BRAKE)

main43212-28030iTCR10,20..W199302-199912

W(ABS)

main43212-28030iTCR21..ARL199108-199308

43212CCOVER, FRONT KNUCKLE STOPPER

main45619-14020iTCR1#,2#199005-199912

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29235iTCR1#,2#199005-199912

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main94146-71600iTCR1#,2#199005-199912

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28050iTCR1#,2#199005-199912

48068BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM)

main90948-02090iTCR1#,2#199005-199912

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28050iTCR1#,2#199005-199912

48623ARM, FRONT SUSPENSION, LOWER NO.2 RH

main48623-28040iTCR1#,2#199005-199912

48624ARM, FRONT SUSPENSION, LOWER NO.2 LH

main48624-28030iTCR1#,2#199005-199912

48652BRACKET, FRONT LOWER ARM

main48652-20040iTCR1#,2#199005-199912

48655BUSH, LOWER ARM, NO.2

main48655-28010iTCR1#,2#199005-199912

9010512142

main90105-12142

9010514072

main90105-14072

9010514073

main90105-14073

9017010082

main90170-10082

9017014012

main90170-14012

9017916004

main90179-16004

9020114005

main90201-14005

9025203012

main90252-03012

9453101000

main94531-01000

24 parts on this diagram · 2 diagrams in section
