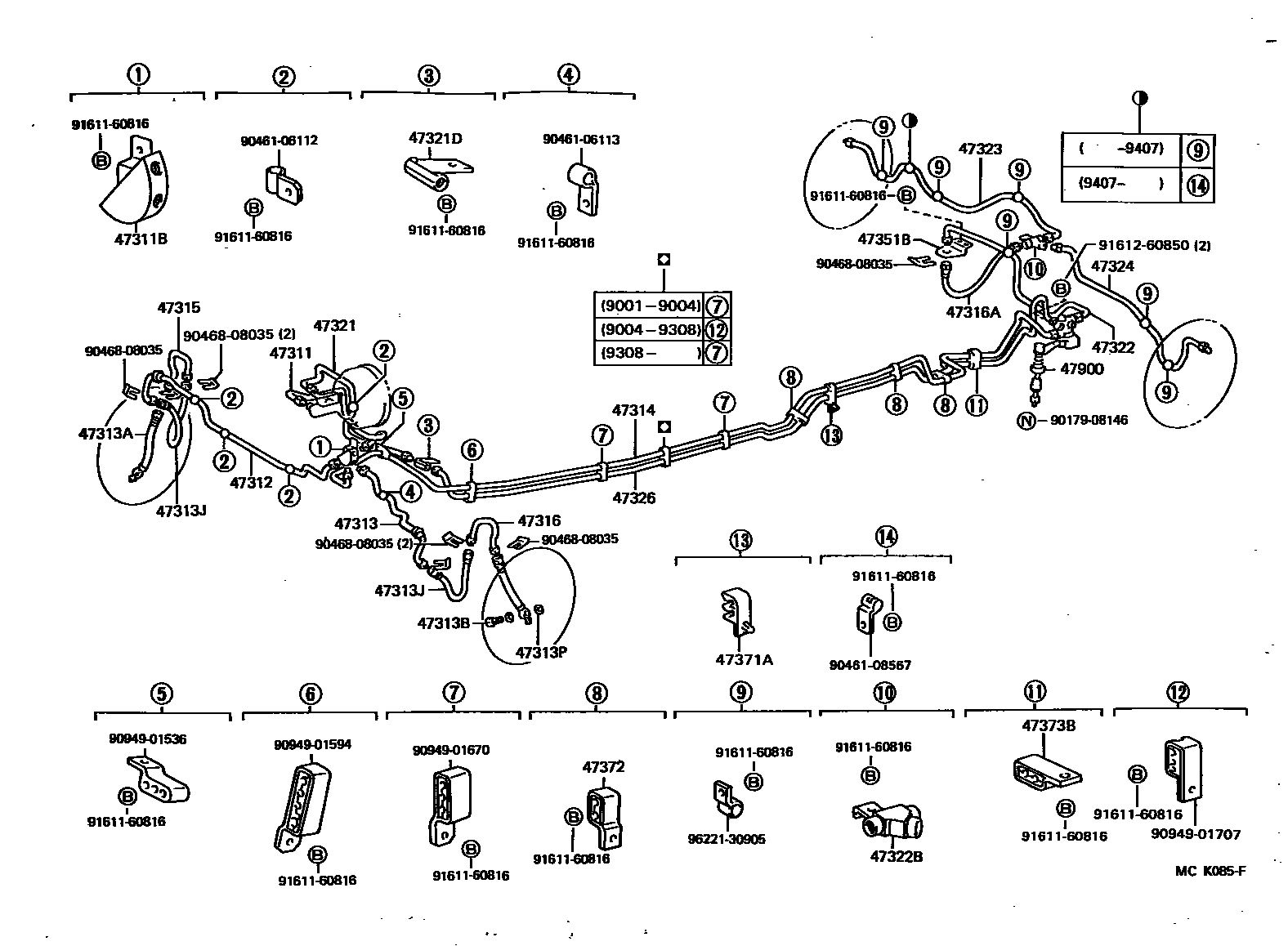

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1W(ABS) 0008 1W(ABS) 0009 1W(ABS) 0010 1W(ABS) 0011 1W(ABS) 0012 1W(ABS) 0013 1W(ABS) 0014 1W(ABS) 0015 1W(ABS) 0016 1W(ABS) 0017 1W(ABS)

47311TUBE, FRONT BRAKE, NO.1

main47311-28230iTCR1#,2#..LHD199005-199912

main47311-28240iTCR1#,2#..LHD..W199005-199608

W(ABS)

main47311-28241iTCR1#,2#..LHD199608-199912

W(ABS)

main47311-28250iTCR1#,2#..RHD199005-199912

main47311-28260iTCR11..RHD199005-199408

W(ABS)

main47311-28260iTCR21..ARL199108-199308

main47311-28410iTCR11..RHD199408-199608

W(ABS)

main47311-28411iTCR1#..RHD199608-199912

W(ABS)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10006iTCR1#,2#..RHD199005-199912

main90412-10178iTCR11,21..RHD199005-199912

W(ABS)

main90412-10178iTCR21..ARL199108-199308

main90413-10247iTCR11,21..LHD199005-199608

W(ABS)

main90414-10039iTCR1#,2#..LHD199005-199912

47312TUBE, FRONT BRAKE, NO.2

main47312-28130iTCR1#,2#..LHD199005-199912

main47312-28140iTCR21..ARL199005-199408

W(ABS)

main47312-28150iTCR1#,2#..RHD199005-199108

sub47312-28151

main47312-28151iTCR1#..RHD199108-199912

main47312-28240iTCR1#,2#..LHD..W199308-199608

W(ABS)

main47312-28250iTCR11..RHD199408-199608

W(ABS)

main47312-28251iTCR1#,2#199608-199912

W(ABS)

47313TUBE, FRONT BRAKE, NO.3

main47313-28120iTCR1#,2#..LHD199005-199912

main47313-28130iTCR11,21..LHD199005-199308

W(ABS)

main47313-28131iTCR1#,2#..LHD..W199308-199608

W(ABS)

main47313-28132iTCR1#,2#..LHD199608-199912

W(ABS)

main47313-28140iTCR1#..RHD199005-199912

main47313-28150iTCR11..RHD199005-199408

W(ABS)

main47313-28150iTCR21..ARL199108-199308

main47313-28240iTCR11..RHD199408-199608

W(ABS)

main47313-28241iTCR1#..RHD199608-199912

W(ABS)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02604iTCR1#,2#199005-199608

main90947-02882iTCR1#,2#199608-199912

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iTCR1#,2#199005-199912

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02618iTCR1#,2#199005-199201

sub90947-02720

main90947-02720iTCR1#,2#199201-199912

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iTCR1#,2#199005-199912

47314TUBE, FRONT BRAKE, NO.4

main47314-28141iTCR10,20..LHD199005-199912

main47314-28150iTCR11,21..LHD199005-199108

main47314-28151iTCR11,21..LHD199108-199912

main47314-28160iTCR10,20..ARL199005-199912

main47314-28170iTCR11,21..RHD199005-199108

main47314-28171iTCR11,21..RHD199108-199912

47315TUBE, FRONT BRAKE, NO.5

main47315-28110iTCR1#,2#199005-199912

47316TUBE, FRONT BRAKE, NO.6

main47316-28030iTCR1#,2#199005-199912

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02617iTCR10,20199005-199608

main90947-02883iTCR10,20199608-199912

47321TUBE, REAR BRAKE, NO.1

main47321-28230iTCR1#,2#..LHD199005-199912

main47321-28240iTCR11,21..LHD199005-199308

W(ABS)

main47321-28241iTCR1#,2#..LHD..W199308-199608

W(ABS)

main47321-28242iTCR1#,2#..LHD199608-199912

W(ABS)

main47321-28250iTCR1#..RHD199005-199912

main47321-28260iTCR11..RHD199005-199408

W(ABS)

main47321-28260iTCR21..ARL199108-199308

main47321-28410iTCR11..RHD199408-199608

W(ABS)

main47321-28411iTCR1#..RHD199608-199912

W(ABS)

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10006iTCR1#,2#..LHD199005-199912

main90412-10178iTCR1#,2#..LHD199005-199912

W(ABS)

47322TUBE, REAR BRAKE, NO.2

main47322-28150iTCR10,20199005-199410

main47322-28151iTCR10,20199410-199912

main47322-28160iTCR11,21199005-199912

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10245iTCR10,20199005-199912

main90413-10246iTCR11,21199005-199912

47323TUBE, REAR BRAKE, NO.3

main47323-28190iTCR10,20..W199005-199912

main47323-28200iTCR10..ARL,GEN,V199302-199912

main47323-28200iTCR10,20..W199308-199912

W(REAR DISC BRAKE)

main47323-28210iTCR11,21199005-199410

sub47323-28330

main47323-28330iTCR11,21199410-199912

47324TUBE, REAR BRAKE, NO.4

main47324-28120iTCR10,20..W199005-199912

main47324-28130iTCR10,20..W199308-199912

W(REAR DISC BRAKE)

main47324-28130iTCR10..ARL,GEN,V199302-199912

main47324-28140iTCR11,21199005-199912

47326TUBE, REAR BRAKE, NO.6

main47326-28091iTCR10,20199005-199912

main47326-28100iTCR11,21199005-199108

main47326-28101iTCR11,21199108-199912

main47326-28190iTCR11,21199608-199912

W(ABS)

main47326-28200iTCR10,20199608-199912

W(ABS)

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-28060iTCR10,20199005-199912

47371ACLAMP, BRAKE TUBE, NO.1

main47371-28010iTCR1#,2#199005-199912

47372CLAMP, BRAKE TUBE, NO.2

main47372-25010iTCR1#,2#199005-199912

47373BCLAMP, BRAKE TUBE, NO.3

main47373-25010iTCR1#,2#199005-199912

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-28280iTCR10,20199005-199912

sub47900-28281

main47900-28290iTCR11,21199005-199308

sub47900-28291

main47900-28311iTCR10..ARL,GEN199302-199912

sub47900-28313

main47900-28320iTCR21..ARL199005-199302

W(REAR DISC BRAKE)

sub47900-28321

main47900-28320iTCR11,21..ARL199302-199912

sub47900-28321

main47900-28330iTCR11,21..W199005-199308

W(REAR DISC BRAKE)

sub47900-28331

main47900-28330iTCR11,21..W199308-199912

sub47900-28331

main47900-28460iTCR10,20..W199308-199608

W(REAR DISC BRAKE)

sub47900-28461

main47900-28460iTCR10..V199408-199912

sub47900-28461

9017908146

main90179-08146

9046106112

main90461-06112

9046106113

main90461-06113

9046108567

main90461-08567

9046808035

main90468-08035

9094901536

main90949-01536

9094901594

main90949-01594

9094901670

main90949-01670

9094901707

main90949-01707

9161160816

main91611-60816

9161260850

main91612-60850

9622130905

main96221-30905
