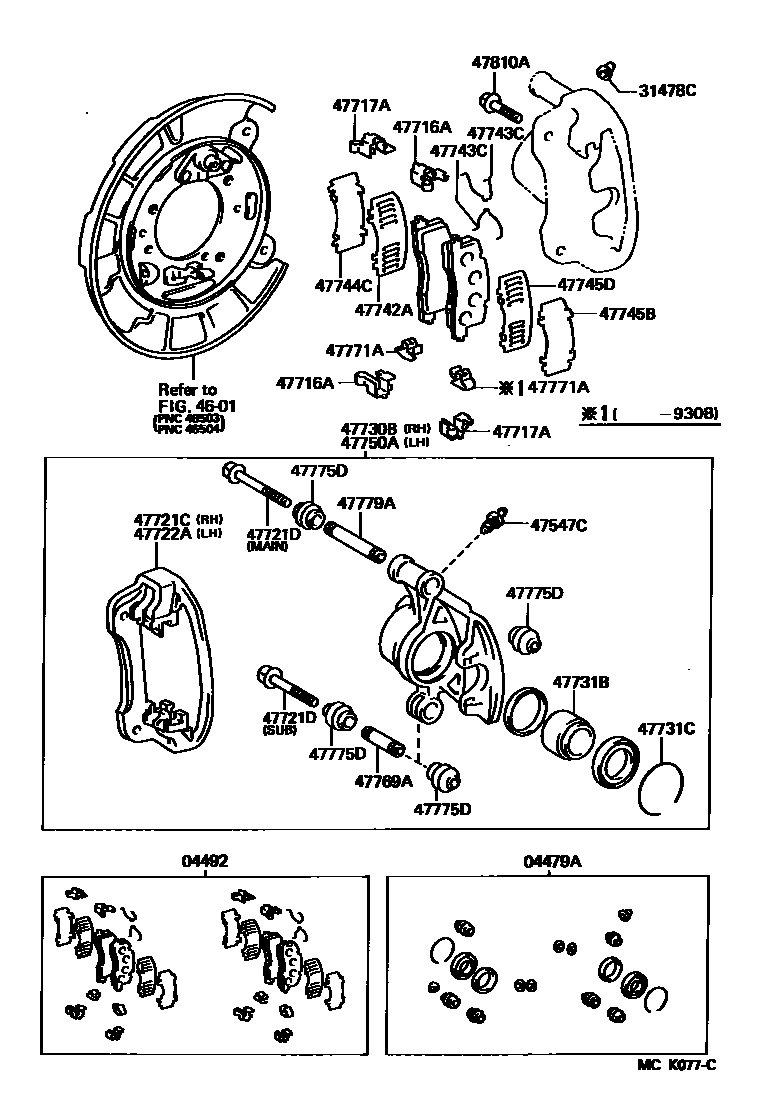

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-28070iTCR1#,2#¥2,940199005-199912

04492PAD KIT, DISC BRAKE, REAR

main04492-28010iTCR1#,21..ARL¥11,800199005-199505

sub04466-28010¥9,400

main04492-28020iTCR11,21..W¥11,800199005-199505

sub04466-28020¥9,400

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iTCR1#,2#¥160199005-199912

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12030iTCR1#,2#¥400199005-199912

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-32031iTCR1#,2#¥390199005-199912

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-32031iTCR1#,2#¥390199005-199912

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-28010iTCR1#,2#¥5,200199005-199912

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90119-09003iTCR1#,2#¥550199005-199912

*9-1.25PX71-25

main90119-09004iTCR2#..W;TCR1#..ARL,W¥550199005-199912

*9-1.25PX91-25

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-28010iTCR1#,2#¥5,200199005-199912

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-28190iTCR1#,2#¥41,800199005-199912

47731BPISTON, REAR DISC BRAKE

main47731-28061iTCR1#,2#¥1,700199005-199912

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-53001iTCR1#,2#¥230199005-199912

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47744-28110iTCR1#,2#¥270199005-199912

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-32010iTCR1#,2#¥300199005-199506

sub47743-12070¥310

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47745-28050iTCR1#,2#¥270199005-199912

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-28050iTCR1#,2#¥270199005-199912

47745DSHIM, ANTI-SQUEAL, NO.4(FOR REAR DISC BRAKE)

main47744-28110iTCR1#,2#¥270199005-199912

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-28190iTCR1#,2#¥41,800199005-199912

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-12030iTCR1#,2#¥590199005-199912

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-12050iTCR1#,2#¥250199005-199912

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32010iTCR1#,2#¥510199005-199912

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-16010iTCR1#,2#¥590199005-199912

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-12040iTCR11,21¥230199005-199912

main90119-12185iTCR10,20¥160199005-199912

24 parts on this diagram · 2 diagrams in section
