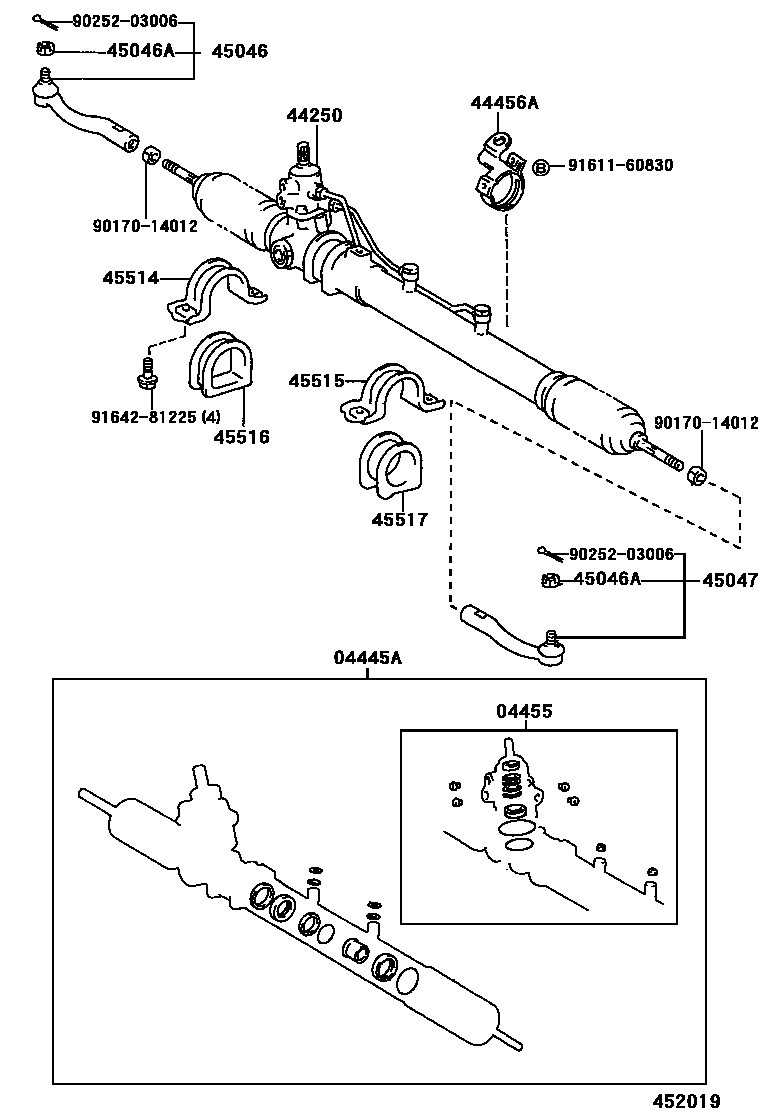

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-28030iTCR1#,2#199005-199912

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-28020iTCR1#,2#199005-199912

sub04455-20120

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-28152iTCR10..GEN199308-199408

main44250-28160iTCR1#,2#..RHD199005-199108

main44250-28161iTCR1#,21..RHD199108-199608

main44250-28162iTCR1#..RHD199608-199610

sub44250-28163

main44250-28163iTCR1#..RHD199610-199912

main44250-28170iTCR1#,2#..LHD199005-199108

main44250-28171iTCR1#,2#..LHD199108-199608

main44250-28172iTCR1#,2#..LHD199608-199610

sub44250-28173

main44250-28173iTCR1#,2#..LHD199610-199912

44456ARETAINER, POWER STEERING TUBE SUPPORT, NO.1

main44456-26020iTCR1#,2#..RHD199005-199608

main44456-28021iTCR1#..RHD199608-199912

45046END SUB-ASSY, TIE ROD, RH

main45046-29235iTCR1#,2#199005-199912

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iTCR1#,2#199005-199912

45047END SUB-ASSY, TIE ROD, LH

main45047-29065iTCR1#,2#199005-199912

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-28030iTCR1#,2#199005-199912

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-28040iTCR1#,2#199005-199912

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-28030iTCR1#,2#199005-199912

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-28020iTCR1#,2#199005-199912

9017014012

main90170-14012

9025203006

main90252-03006

9161160830

main91611-60830

9164281225

main91642-81225

15 parts on this diagram · 4 diagrams in section
