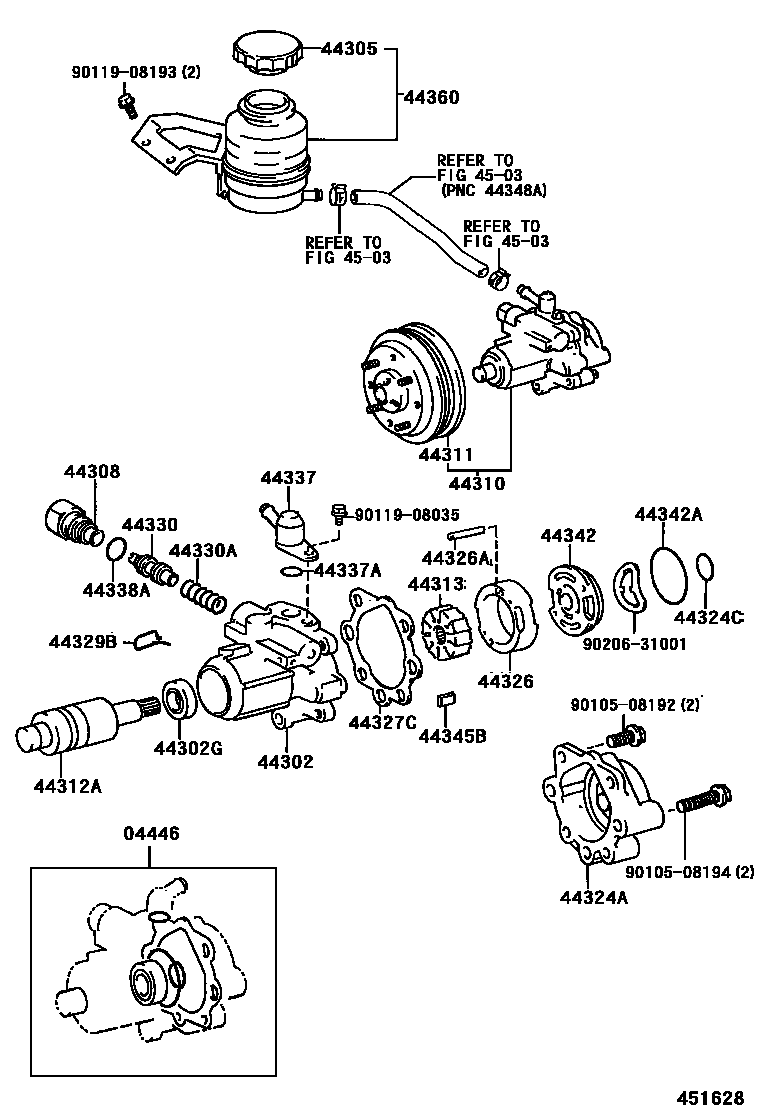

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-28010iTCR1#,2#¥1,880199005-199912

sub04446-43020¥1,860

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-28010iTCR1#,2#¥13,200199005-199105

sub44302-28011¥19,700

main44302-28011iTCR1#,2#¥19,700199105-199201

main44302-28012iTCR1#,2#¥19,800199201-199912

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17007iTCR1#,2#¥190199005-199912

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iTCR1#,2#¥1,840199005-199912

sub44305-22050¥1,260

main44305-28020iTCR1#,2#..LHD¥1,470199312-199912

sub44305-28050¥1,460

main44305-32030iTCR1#,2#..LHD¥1,830199109-199312

sub44305-28050¥1,460

44308UNION SUB-ASSY, PRESSURE PORT

main44308-28020iTCR1#,2#¥2,000199005-199105

main44308-28021iTCR1#,2#¥1,980199105-199912

44310PUMP ASSY, VANE

main44310-28051iTCR1#,2#..LHD¥94,200199005-199608

main44310-28052iTCR1#,2#..LHD¥94,400199608-199912

main44310-28060iTCR1#,2#..RHD¥94,500199005-199912

44311PULLEY, VANE PUMP

main44311-28011iTCR1#,2#¥7,800199005-199912

44312ABEARING(FOR VANE PUMP SHAFT)

main44317-28030iTCR1#,2#¥6,300199005-199912

44313ROTOR, VANE PUMP

main44313-26060iTCR1#,2#¥7,700199005-199912

NO MARK

main44313-26070iTCR1#,2#¥7,700199005-199912

MARK 1

main44313-26080iTCR1#,2#¥7,700199005-199912

MARK 2

main44313-26090iTCR1#,2#¥7,700199005-199912

MARK 3

main44313-26100iTCR1#,2#¥7,700199005-199912

MARK 4

44324AHOUSING, PUMP, REAR

main44324-26040iTCR1#,2#¥3,990199005-199201

main44324-28030iTCR1#,2#¥2,510199201-199912

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-18007iTCR1#,2#¥110199005-199912

44326RING, CAM(FOR VANE PUMP)

main44325-26010iTCR1#,2#¥6,700199005-199008

NO MARK

main44325-26020iTCR1#,2#¥6,700199005-199008

MARK 1

main44325-26030iTCR1#,2#¥6,700199005-199008

MARK 2

main44325-26040iTCR1#,2#¥6,700199005-199008

MARK 3

main44325-26050iTCR1#,2#¥6,700199005-199008

MARK 4

main44325-32110iTCR1#,2#¥8,500199008-199201

NO MARK

main44325-32120iTCR1#,2#¥8,500199008-199201

MARK 1

main44325-32130iTCR1#,2#¥8,500199008-199201

MARK 2

main44325-32140iTCR1#,2#¥8,500199008-199201

MARK 3

main44325-32150iTCR1#,2#¥8,200199008-199201

MARK 4

main44325-32270iTCR1#,2#¥6,700199201-199912

NO MARK

main44325-32280iTCR1#,2#¥6,700199201-199912

MARK 1

main44325-32290iTCR1#,2#¥6,700199201-199912

MARK 2

main44325-32300iTCR1#,2#¥6,700199201-199912

MARK 3

main44325-32310iTCR1#,2#¥6,700199201-199912

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04071iTCR1#,2#¥110199005-199912

L=23.3,OD=4.0

44327CGASKET, VANE PUMP HOUSING

main44327-26010iTCR1#,2#¥460199005-199912

44329BWIRE, VANE PUMP BEARING

main44329-28010iTCR1#,2#¥370199005-199912

44330VALVE ASSY, FLOW CONTROL

main44330-28010iTCR1#,2#¥8,600199005-199105

MARK A

sub44330-28011¥8,700

sub44308-14081¥4,240

sub44308-22102¥4,240

sub44308-28021¥1,980

sub90501-13034¥160

main44330-28011iTCR1#,2#¥8,700199105-199912

MARK A

main44330-28020iTCR1#,2#¥8,600199005-199105

MARK B

sub44330-28021¥8,700

sub44308-14081¥4,240

sub44308-22102¥4,240

sub44308-28021¥1,980

sub90501-13034¥160

main44330-28021iTCR1#,2#¥8,700199105-199912

MARK B

main44330-28030iTCR1#,2#¥8,600199005-199105

MARK C

sub44330-28031¥8,700

sub44308-14081¥4,240

sub44308-22102¥4,240

sub44308-28021¥1,980

sub90501-13034¥160

main44330-28031iTCR1#,2#¥8,700199105-199912

MARK C

main44330-28040iTCR1#,2#¥8,600199005-199105

MARK D

sub44330-28041¥8,700

sub44308-14081¥4,240

sub44308-22102¥4,240

sub44308-28021¥1,980

sub90501-13034¥160

main44330-28041iTCR1#,2#¥8,700199105-199912

MARK D

main44330-28050iTCR1#,2#¥8,600199005-199105

MARK E

sub44330-28051¥8,700

sub44308-14081¥4,240

sub44308-22102¥4,240

sub44308-28021¥1,980

sub90501-13034¥160

main44330-28051iTCR1#,2#¥8,700199105-199912

MARK E

main44330-28060iTCR1#,2#¥8,600199005-199105

MARK F

sub44330-28061¥8,700

sub44308-14081¥4,240

sub44308-22102¥4,240

sub44308-28021¥1,980

sub90501-13034¥160

main44330-28061iTCR1#,2#¥8,700199105-199912

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-11047iTCR1#,2#¥110199005-199105

main90501-13034iTCR1#,2#¥160199105-199912

44337UNION, POWER STEERING SUCTION PORT

main44337-22060iTCR1#,2#..LHD¥1,900199005-199608

main44337-28030iTCR1#,2#..RHD¥940199005-199112

main44337-28050iTCR1#,21..RHD¥1,890199112-199608

main44337-28051iTCR1#..RHD¥1,880199608-199912

main44337-28070iTCR1#,2#..LHD¥1,880199608-199912

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11010iTCR1#,2#¥270199005-199609

sub90301-11016¥140

main90301-11016iTCR1#,2#¥140199609-199912

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iTCR1#,2#¥300199005-199609

ID=19.5,OD=22.5

sub90301-19013¥260

main90301-19013iTCR1#,2#¥260199609-199912

ID=19.2,OD=22.3

sub90301-19018¥240

44342PLATE, VANE PUMP SIDE, REAR

main44342-26010iTCR1#,2#¥1,550199005-199008

main44342-26020iTCR1#,2#¥1,530199204-199912

main44342-32050iTCR1#,2#¥1,530199008-199201

main44342-32060iTCR1#,2#¥1,530199201-199204

sub44342-26020¥1,530

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-47001iTCR1#,2#¥170199005-199912

44345BPLATE, VANE PUMP

main44345-26010iTCR1#,2#¥700199005-199912

L=15.000

main44345-26020iTCR1#,2#¥700199005-199912

L=14.998

main44345-26030iTCR1#,2#¥700199005-199912

L=14.996

main44345-26040iTCR1#,2#¥700199005-199912

L=14.994

main44345-26050iTCR1#,2#¥700199005-199912

L=14.992

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-28070iTCR1#,2#..LHD¥10,300199005-199112

sub44360-28071¥10,500

main44360-28071iTCR1#,2#..LHD¥10,500199112-199912

main44360-28080iTCR1#,2#..RHD¥10,500199005-199912

4503

9010508192

main90105-08192¥130

9010508194

main90105-08194¥130

9011908035

main90119-08035¥110

9011908193

main90119-08193¥190

9020631001

main90206-31001¥160

30 parts on this diagram · 2 diagrams in section
