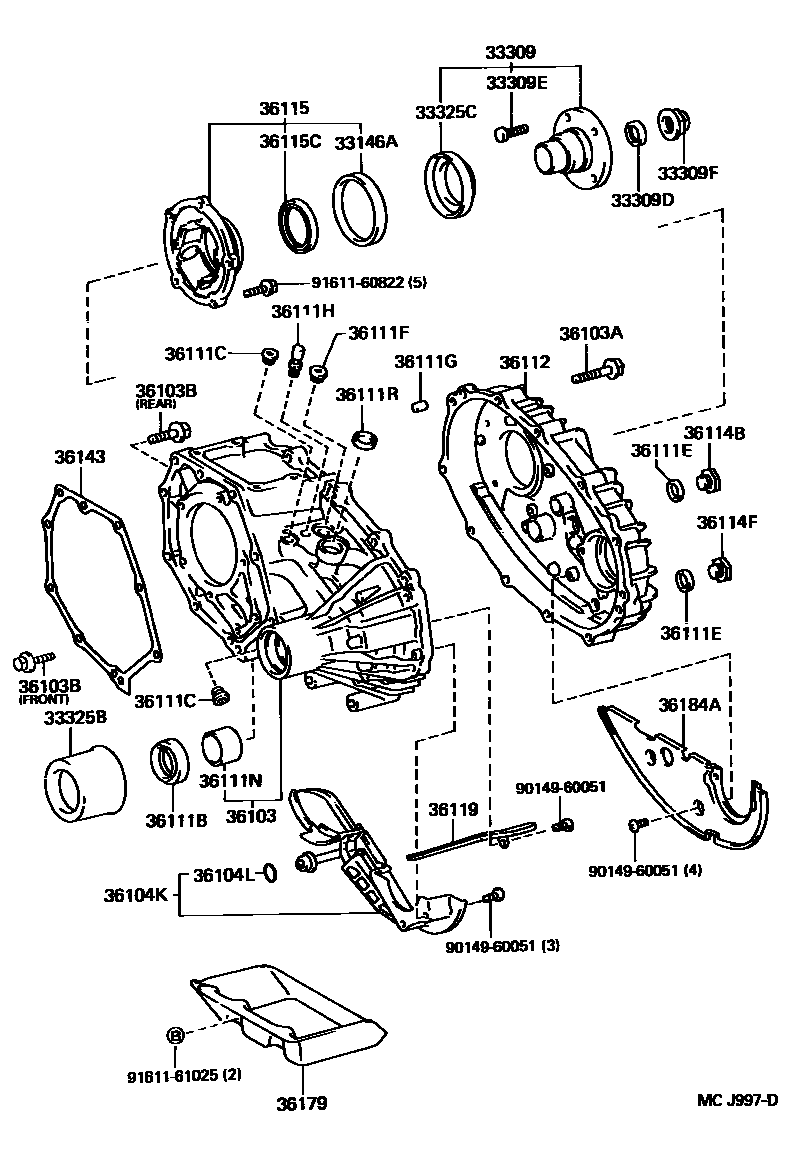

TRANSFER CASE & EXTENSION HOUSING
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309EBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309FNUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33325BDEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)
36103CASE SUB-ASSY, TRANSFER
sub36103-26020
sub36184-28030
sub36187-25010
sub90149-60051
sub90341-12014
sub90341-14008
sub96411-12800
sub96721-24017
36103ABOLT (FOR TRANSFER CASE)
36103BBOLT (FOR TRANSFER CASE & ADAPTER SETTING)
*10-1.25PX47-30,FRONT
*10-1.25PX47-30,REAR
36104KSEPARATOR SUB-ASSY, TRANSFER OIL
36104LRING, O (FOR TRANSFER OIL SEPARATOR)
36111CPLUG (FOR TRANSFER CASE)
36111EGASKET (FOR TRANSFER CASE)
36111FPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111RPLUG, TIGHT (FOR TRANSFER CASE)
sub96411-42800
36112CASE, TRANSFER, REAR
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36115HOUSING, TRANSFER EXTENSION
36119RECEIVER, TRANSFER OIL, NO.1
36143GASKET, TRANSFER CASE, FRONT
36179PROTECTOR, TRANSFER CASE LOWER
36184ASEPARATOR, TRANSFER OIL
NO.2
NO.2
NO.1
9014960051
main90149-60051
9161160822
main91611-60822
9161161025
main91611-61025
32 parts on this diagram · 2 diagrams in section
