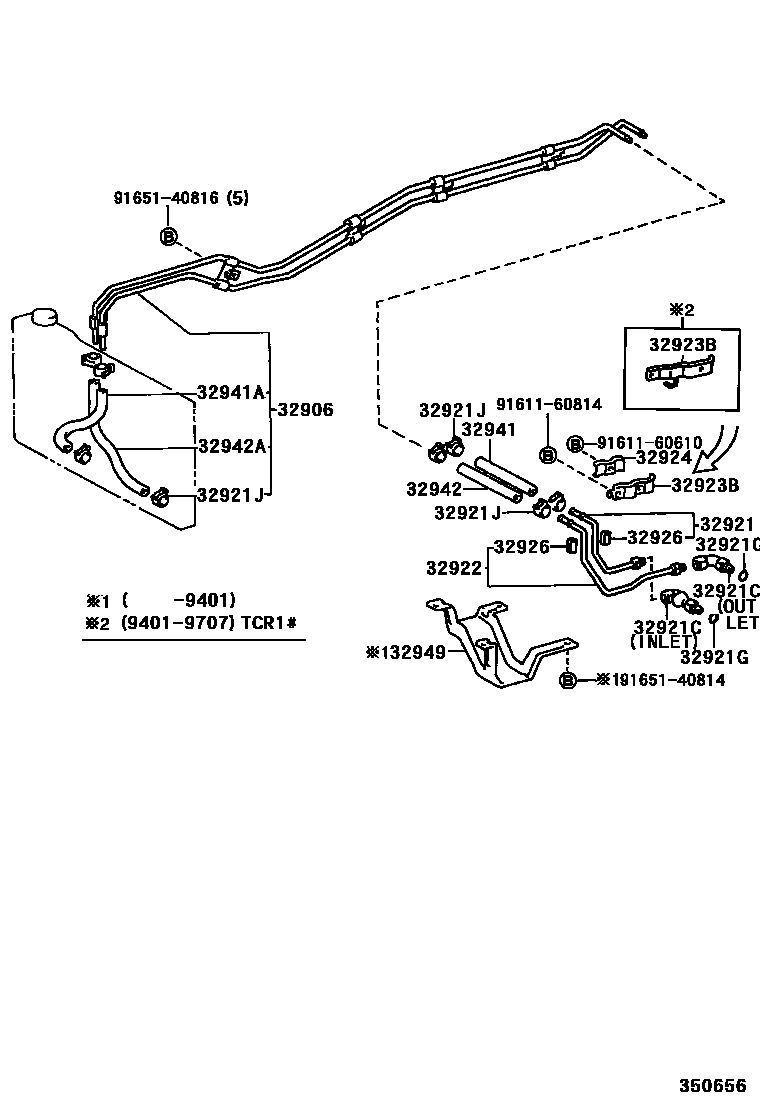

OIL COOLER & TUBE (ATM)

32906TUBE SUB-ASSY, OIL COOLER

main32906-28010iTCR1#,2#..ATM199005-199912

32921TUBE, OIL COOLER INLET, NO.1

main32921-28100iTCR1#..ATM199005-199912

main32921-28110iTCR2#..ATM199005-199308

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iTCR1#..ATM199311-199912

INLET

main90404-16027iTCR1#..ATM199005-199311

INLET

sub90404-16021

main90407-16010iTCR1#..ATM199311-199912

OUTLET

main90407-16021iTCR1#,2#..ATM199005-199311

OUTLET

sub90407-16010

main90407-16022iTCR2#..ATM199005-199308

INLET

sub90407-16019

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iTCR1#,2#..ATM199005-199912

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013iTCR1#,2#..ATM199005-199912

sub90467-16022

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-28100iTCR1#,2#..ATM199005-199912

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-28070iTCR1#,2#..ATM199005-199912

main32923-28100iTCR1#..ATM199401-199707

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-12074iTCR1#,2#..ATM199005-199912

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iTCR1#,2#..ATM199005-199912

L=35,ID=10

32941HOSE, OIL COOLER INLET, NO.1

main32941-28170iTCR1#,2#..ATM199005-199912

32941AHOSE, OIL COOLER INLET, NO.2

main32941-28190iTCR1#,2#..ATM199005-199912

32942HOSE, OIL COOLER OUTLET, NO.1

main32941-28170iTCR1#,2#..ATM199005-199912

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-28170iTCR1#,2#..ATM199005-199912

32949INSULATOR, OIL COOLER HOSE HEAT

main32949-28010iTCR1#,2#..ATM199005-199401

9161160610

main91611-60610

9161160814

main91611-60814

9165140814

main91651-40814

9165140816

main91651-40816

18 parts on this diagram · 1 diagram in section
