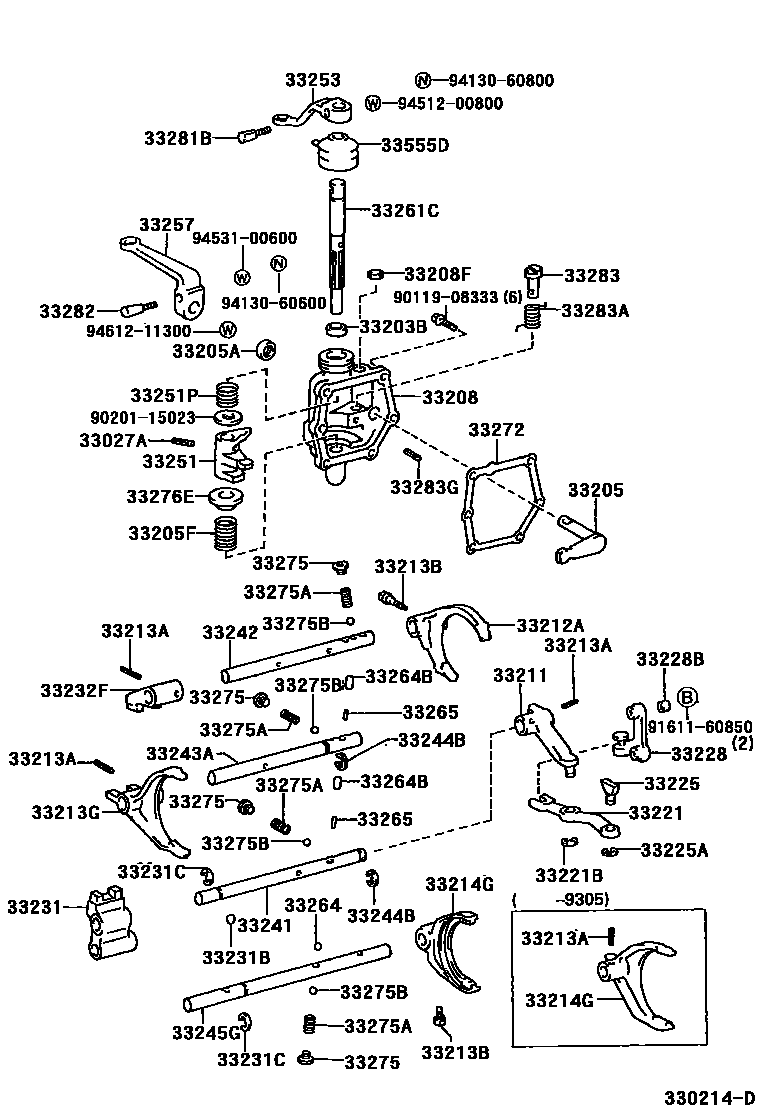

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33208FPLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING)
33211FORK, REVERSE SHIFT
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33225SHOE, SHIFT ARM
33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)
33228BRACKET, REVERSE SHIFT ARM
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33231HEAD, REVERSE SHIFT
33231BBALL, REVERSE SHIFT RESTRICT
33231CRING(FOR REVERSE SHIFT HEAD)
33232FHEAD, GEAR SHIFT, NO.1
33241SHAFT, REVERSE SHIFT FORK
33242SHAFT, GEAR SHIFT FORK, NO.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33251PSPRING (FOR SHIFT & SELECT LEVER)
33253LEVER, SHIFT OUTER, NO.1
33257LEVER, SELECT OUTER
33261CSHAFT, SHIFT & SELECT LEVER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
OD=9.52,STEEL
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=21.6,PIN
L=13.6,OD=9.5
33265PIN, SHIFT INTERLOCK, NO.2
L=11.1,OD=4.8
33272GASKET, SHIFT LEVER SHAFT HOUSING
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18
OD=17
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=20.2
L=31
33275BBALL, SHAFT DETENT
33276ESEAT, SELECT SPRING, NO.1
33281BPIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33282PIN, LEVER LOCK, NO.2
33283PIN, REVERSE RESTRICT, NO.1
33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33555DBOOT, SHIFT LEVER
9011908333
main90119-08333
9020115023
main90201-15023
9161160850
main91611-60850
9413060600
main94130-60600
9413060800
main94130-60800
9451200800
main94512-00800
9453100600
main94531-00600
9461211300
main94612-11300
55 parts on this diagram · 1 diagram in section
