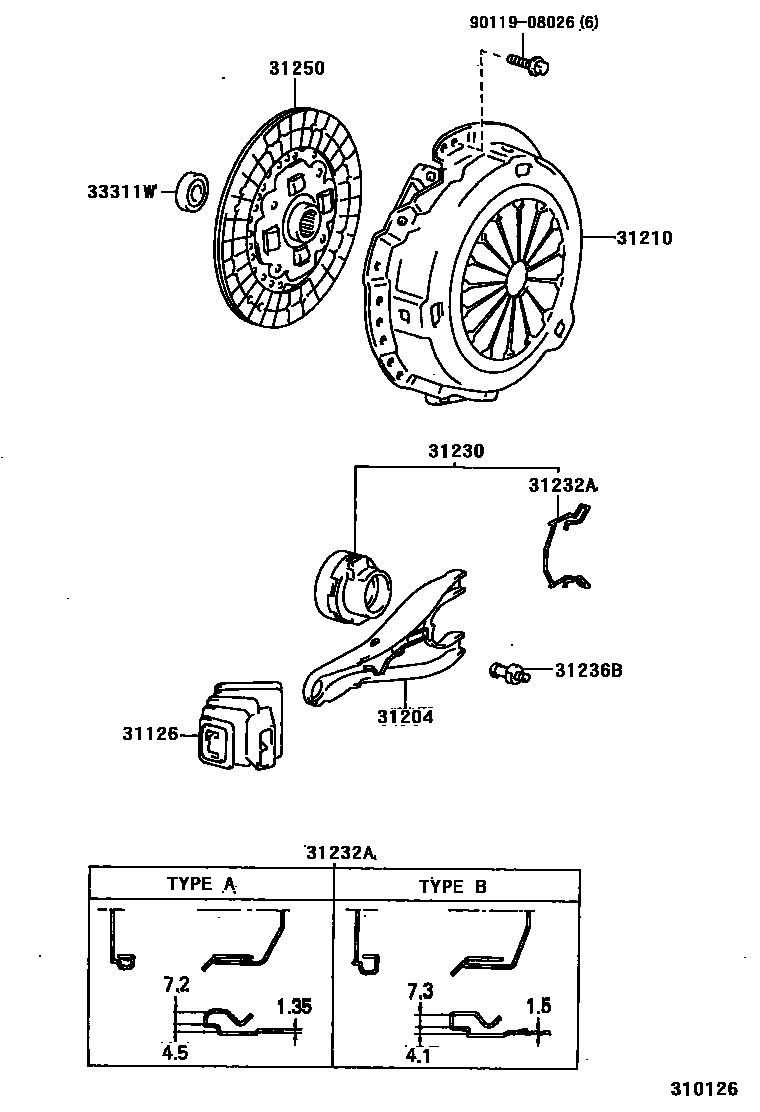

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-26020iTCR1#,2#..MTM199005-199912

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iTCR1#,2#..MTM199005-199912

31210COVER ASSY, CLUTCH

main31210-28030iTCR1#,2#..MTM199005-199912

sub31210-35280

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iTCR1#,2#..MTM199005-199912

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35020iTCR1#,2#..MTM199005-199912

TYPE A:REFER TO ILLUSTRATION

main31232-35040iTCR1#,2#..MTM199005-199912

TYPE B:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-30060iTCR1#,2#..MTM199005-199912

31250DISC ASSY, CLUTCH

main31250-28081iTCR1#,2#..MTM199005-199301

sub31250-28082

main31250-28082iTCR1#,2#..MTM199301-199608

sub31250-28083

main31250-28083iTCR1#,2#..MTM199608-199703

sub31250-28084

main31250-28084iTCR1#,2#..MTM199703-199912

sub31250-28085

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iTCR1#,2#..MTM199005-199912

sub90363-12024

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
