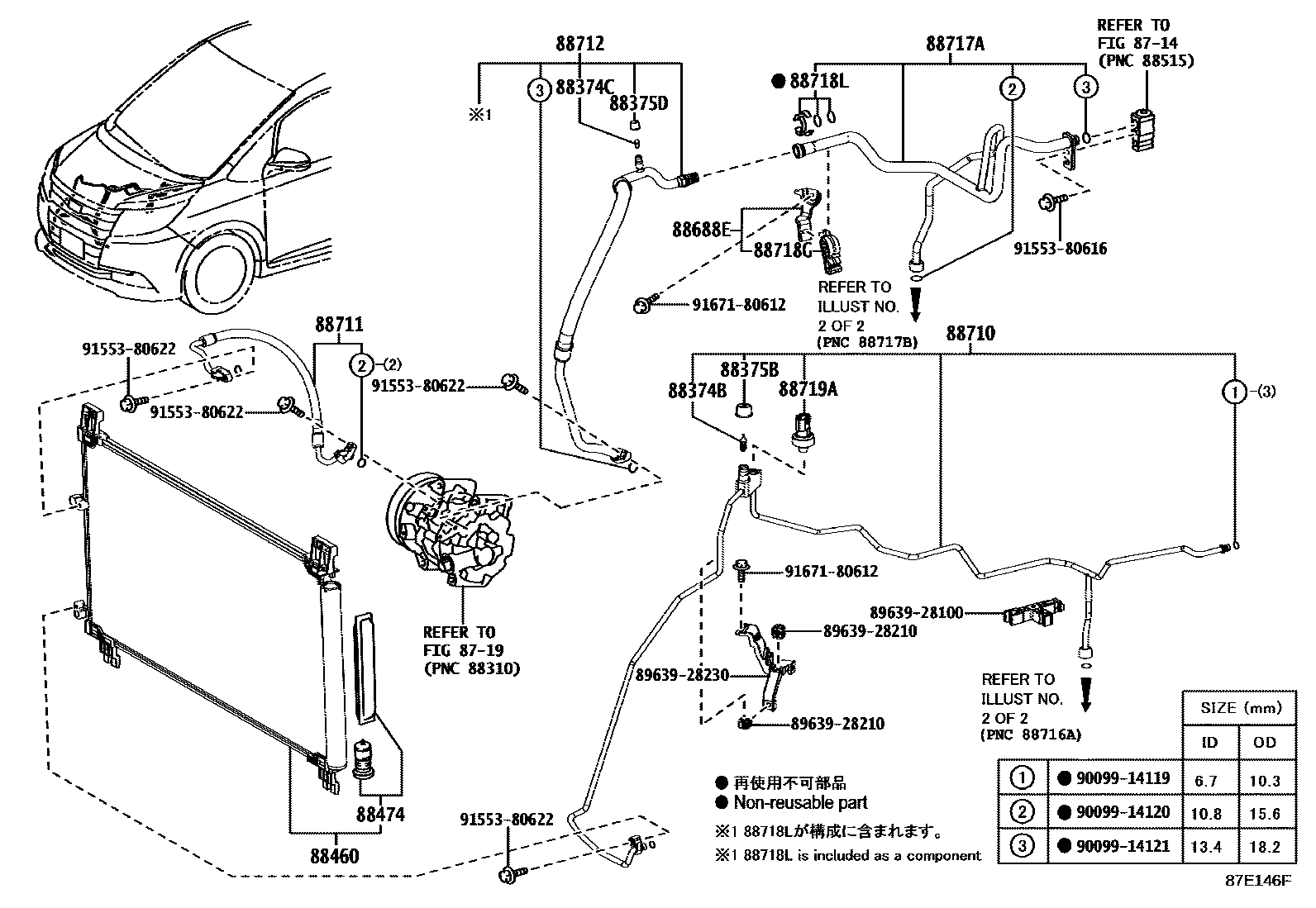

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1REAR,W/O(REAR HEATER) 0003 1REAR,W(REAR HEATER)

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iZRR80201401-201706

88374CVALVE, SERVICE, NO.2

main88374-30010iZRR80201401-202102

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iZRR80201401-201706

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iZRR80201401-202102

88460CONDENSER ASSY, COOLER

main88460-28650iZRR80201401-201706

88474DRYER, COOLER

main88474-12010iZRR80201401-201706

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-28890iZRR80201401-201706

88710TUBE ASSY, AIR CONDITIONER

main88710-28A00iZRR80201401-201706

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-28A00iZRR80201401-202102

main88711-28A40iZRR80202102

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-28A00iZRR80201401-202102

main88712-28A30iZRR80202102

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-28A00iZRR80201401-201706

88718GCLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)

main88718-58101iZRR80201401-201706

88718LCLAMP, PIPING

main88718-52280iZRR80201401-201706

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZRR80201401-201706

8963928100WIRE, BRAKE CONTROL

main89639-28100

8963928210WIRE, BRAKE CONTROL

main89639-28210

8963928230WIRE, BRAKE CONTROL

main89639-28230

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155380616

main91553-80616

9155380622

main91553-80622

9167180612

main91671-80612

25 parts on this diagram · 3 diagrams in section
