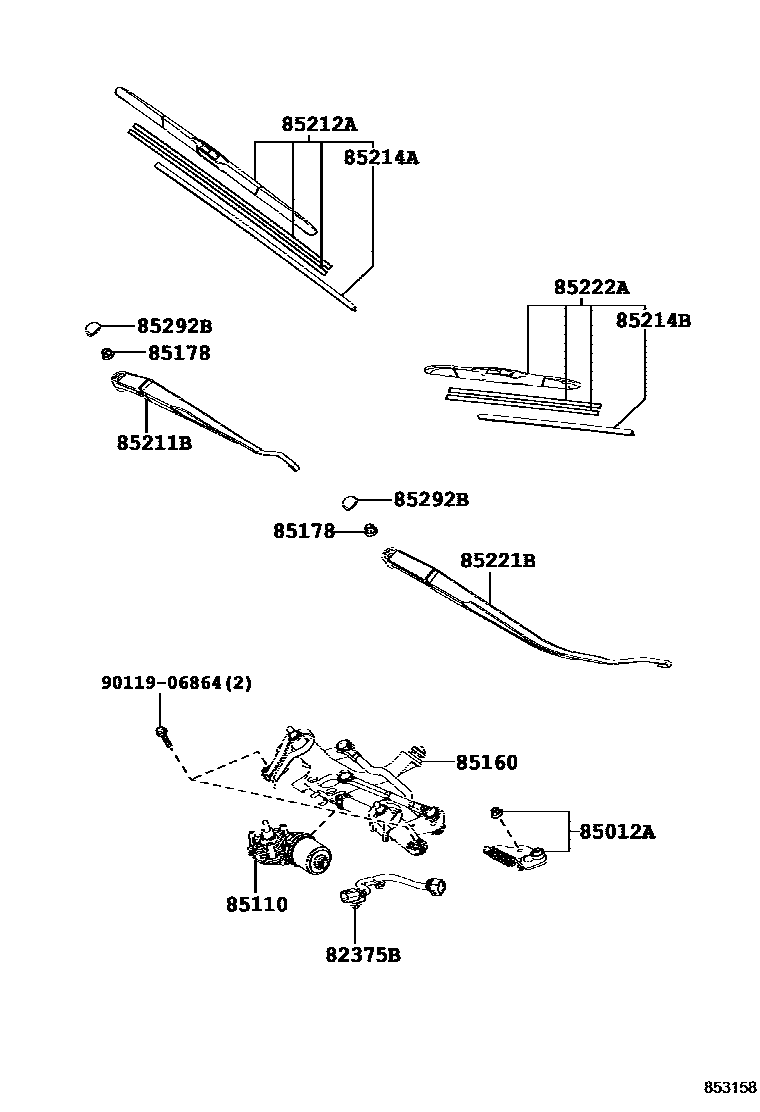

WINDSHIELD WIPER

82375BWIRE, WIPER MOTOR

main82375-28020iZRR80201401-202006

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iZRR80201401-201706

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28240iZRR80201401-201406

sub85110-28241

main85110-28241iZRR80201407-201706

85160LINK ASSY, WINDSHIELD WIPER

main85150-28220iZRR80201401-201409

sub85150-28221

main85150-28221iZRR80201410-201706

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iZRR80201401-201706

85211BARM, FRONT WIPER, RH

main85211-28210iZRR80201401-201411

sub85211-28211

main85211-28211iZRR80201412-201506

sub85211-28212

main85211-28212iZRR80201507-201704

sub85211-28213

main85211-28213iZRR80201705-201706

85212ABLADE, FR WIPER, RH

main85212-28200iZRR80201507-201704

sub85212-28201

main85212-28201iZRR80201705-201706

main85212-52240iZRR80201401-201506

85214ARUBBER, WIPER, RH

main85214-28080iZRR80201401-201704

main85214-28100iZRR80201705-201706

sub85214-28080

85214BRUBBER, WIPER, LH

main85214-28110iZRR80201706

sub85214-68030

main85214-68030iZRR80201401-201706

85221BARM, FRONT WIPER, LH

main85221-28170iZRR80201401-201704

sub85221-28171

main85221-28171iZRR80201705-201706

85222ABLADE, FR WIPER, LH

main85222-28200iZRR80201401-201704

sub85222-28201

main85222-28201iZRR80201705-201706

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iZRR80201401-201706

9011906864

main90119-06864

13 parts on this diagram · 1 diagram in section
