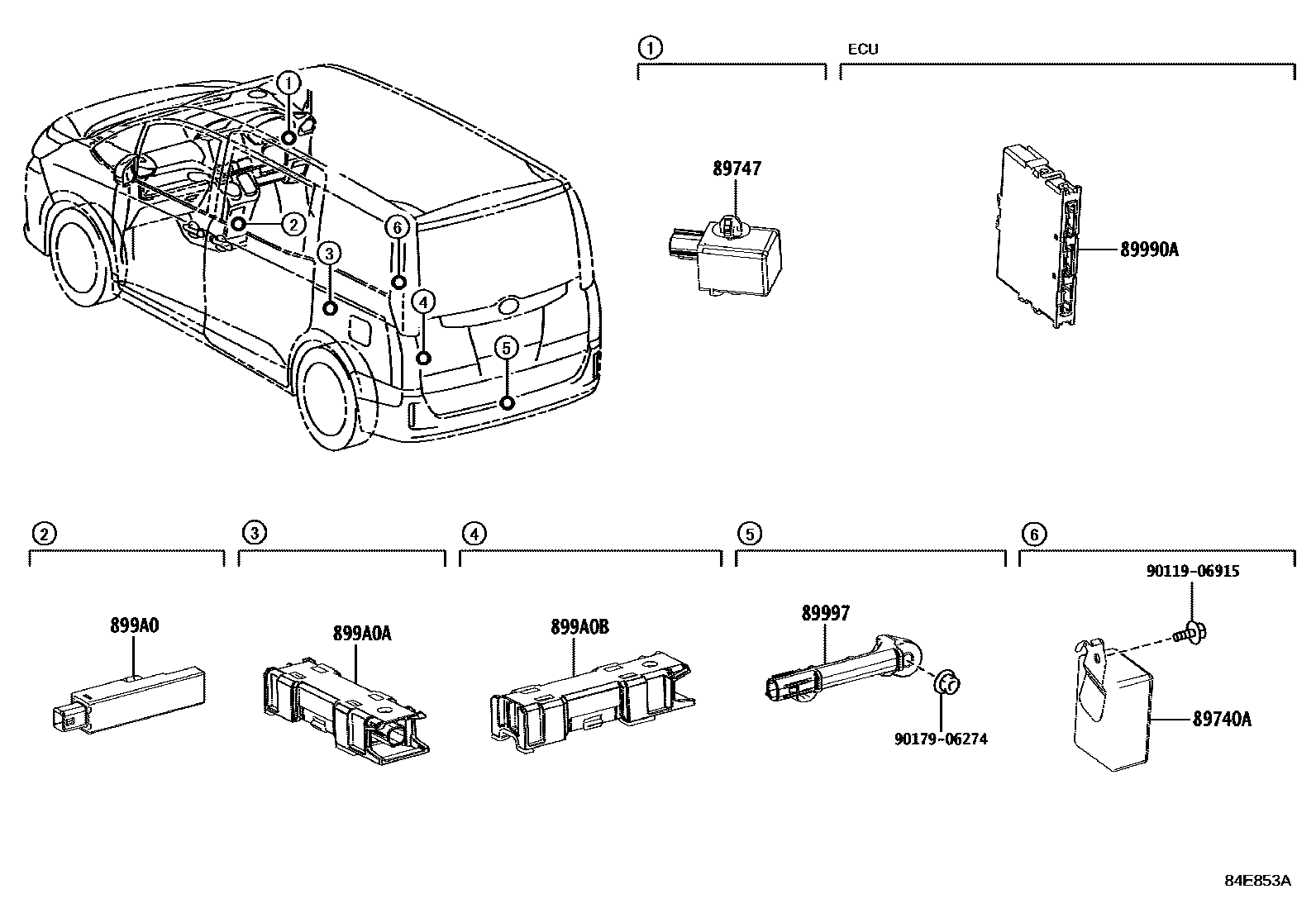

WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-28120iZRR80201401-201706

main89740-28190iZRR80..ZS201706

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iZRR80201401-201706

89990ACOMPUTER ASSY, SMART KEY

main89990-28210iZRR80..ZS201706-201806

sub89990-28211

main89990-28211iZRR80..ZS201807-202006

sub89990-28212

main89990-28212iZRR80..ZS202007

main89990-28220iZRR80..NOAH201706

main89990-28310iZRR80201401-201511

main89990-28311iZRR80201511-201706

89997ANTENNA, ELECTRICAL KEY

main89997-30100iZRR80201401-201706

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iZRR80201401-201706

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-60020iZRR80201401-201706

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-60020iZRR80201401-201706

9011906915

main90119-06915

9017906274

main90179-06274

9 parts on this diagram · 1 diagram in section
