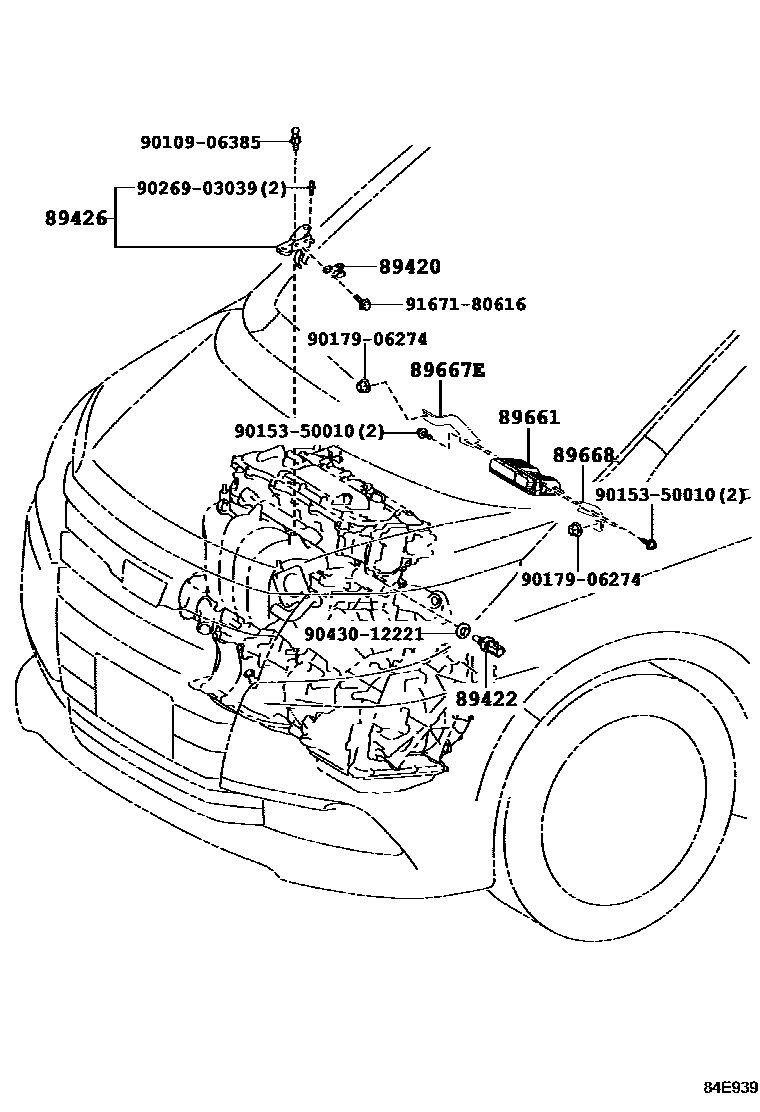

ELECTRONIC FUEL INJECTION SYSTEM

89420SENSOR ASSY, VACUUM

main89421-26030iZRR80201401-201706

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZRR80201401-201706

89426BRACKET, VACUUM SENSOR

main89426-13020iZRR80201401-201706

89661COMPUTER, ENGINE CONTROL

main89661-28F40iZRR80201401-201403

sub89661-28F41

main89661-28F50iZRR80201403-201601

sub89661-28F51

main89661-28J20iZRR80201601-201604

sub89661-28J21

main89661-28J21iZRR80201605-201706

main89661-28J50iZRR80..NOAH201706-201901

DENSO

main89661-28J70iZRR80..ZS201706

DENSO

main89661-28J90iZRR80..NOAH201901-202005

DENSO

main89661-28K10iZRR80..NOAH202005

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-28160iZRR80201401-201706

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28160iZRR80201401-201706

9010906385

main90109-06385

9015350010

main90153-50010

9017906274

main90179-06274

9026903039

main90269-03039

9043012221

main90430-12221

9167180616

main91671-80616

12 parts on this diagram · 1 diagram in section
