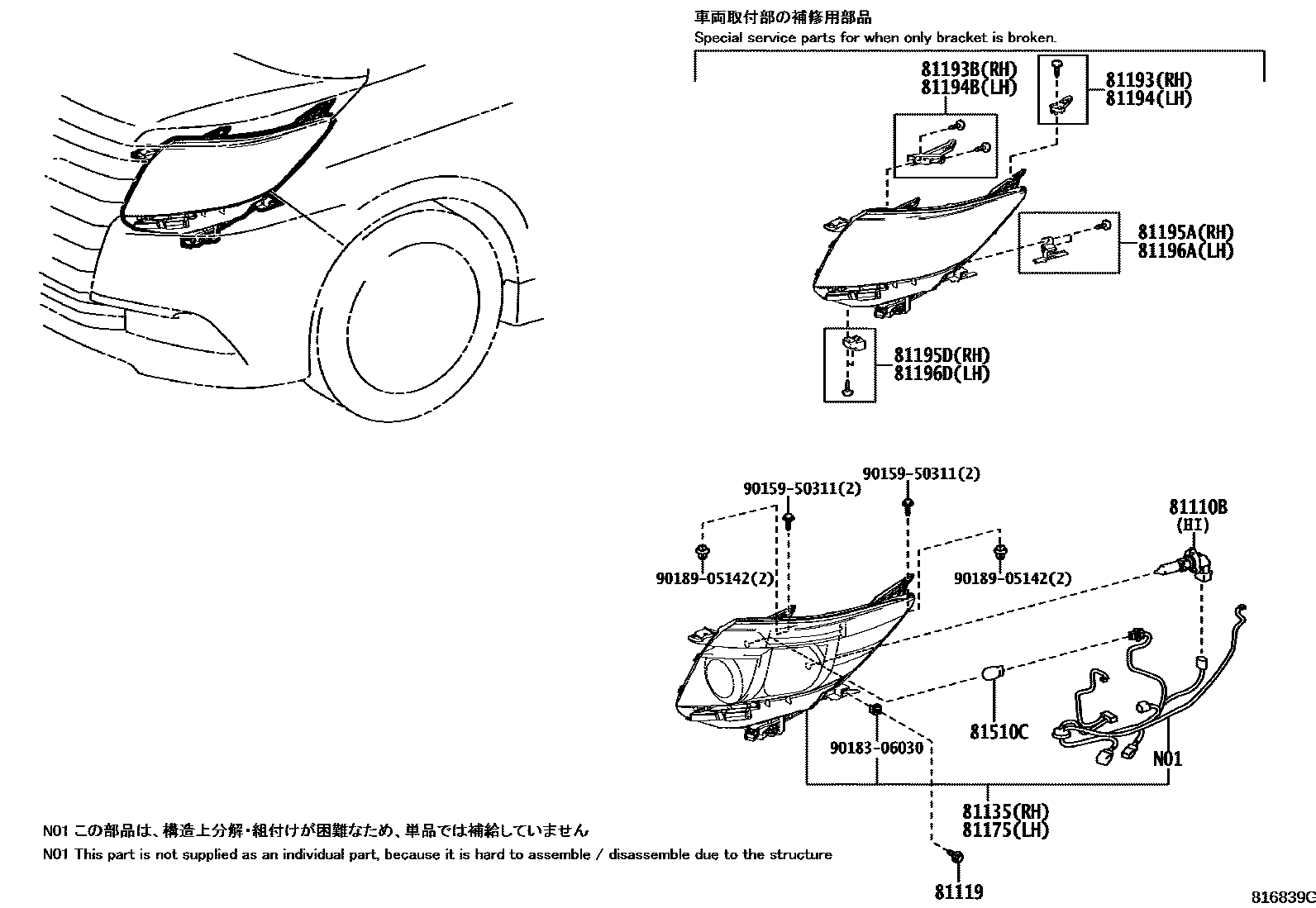

HEADLAMP

0001 1 0002 1 0003 1

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iZRR80201401-201706

12V65W(SAE),60W(ECE)

81119SCREW, HEADLAMP

main90105-06298iZRR80201401-201706

81135UNIT ASSY, HEADLAMP, RH

main81130-28D00iZRR80..X201401-201504

sub81130-28D01

main81130-28D01iZRR80..X201504-201706

main81130-28F70iZRR80..SI201401-201504

sub81130-28F71

main81130-28F71iZRR80..SI201504-201706

main81130-28G40iZRR80..X201706

main81130-28G50iZRR80..SI201706

main81130-28G70iZRR80..ZS201706

81175UNIT ASSY, HEADLAMP, LH

main81170-28720iZRR80..X201401-201504

sub81170-28721

main81170-28721iZRR80..X201504-201706

main81170-28D20iZRR80..SI201401-201504

sub81170-28D21

main81170-28D21iZRR80..SI201504-201706

main81170-28G40iZRR80..X201706

main81170-28G50iZRR80..SI201706

main81170-28G70iZRR80..ZS201706

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-28170iZRR80201401-201706

main81193-28190iZRR80..ZS201706

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-28180iZRR80201401-201706

main81193-28200iZRR80..ZS201706

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-28170iZRR80201401-201706

main81194-28190iZRR80..ZS201706

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-28180iZRR80..NOAH201401-201706

main81194-28200iZRR80..ZS201706

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-28010iZRR80201401-201706

main81195-28030iZRR80..ZS201706

main81195-28050iZRR80..NOAH201706

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-28020iZRR80201401-201706

main81195-28040iZRR80..ZS201706

main81195-28060iZRR80..NOAH201706

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-28010iZRR80201401-201706

main81196-28030iZRR80..ZS201706

main81196-28050iZRR80..NOAH201706

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-28020iZRR80201401-201706

main81196-28040iZRR80..ZS201706

main81196-28060iZRR80..NOAH201706

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011iZRR80201401-201706

12V 21W,AMBER

9015950311

main90159-50311

9018306030

main90183-06030

9018905142

main90189-05142

16 parts on this diagram · 3 diagrams in section
