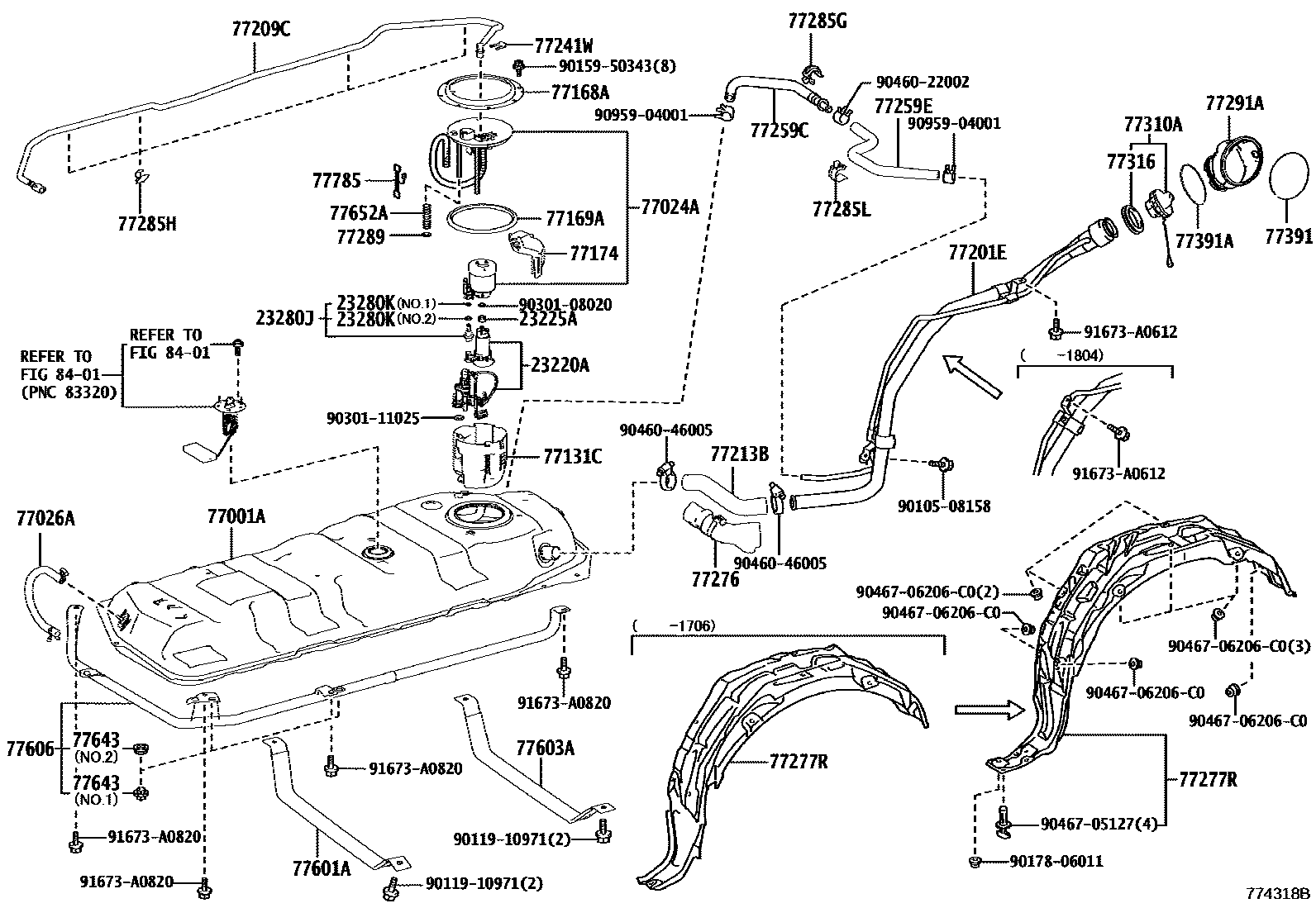

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77001ATANK SUB-ASSY, FUEL
77024APLATE SUB-ASSY, FUEL SUCTION
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77131CSUB-TANK, FUEL, NO.1
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77241WCLIP, TUBE JOINT
77259CHOSE, FUEL
77259EHOSE, FUEL
77276PROTECTOR, FUEL HOSE
77285GCLAMP, FUEL TUBE, NO.1
77285HCLAMP, FUEL TUBE, NO.1
77285LCLAMP, FUEL TUBE, NO.1
77289HOLDER, FUEL TANK PIPE SETTING
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77643RETAINER, FUEL TANK PROTECTOR
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77652ACUSHION, FUEL TANK, NO.2
77785HARNESS, FUEL PUMP
8401
9010508158
main90105-08158
9011910971
main90119-10971
9015950343
main90159-50343
9017806011
main90178-06011
9030108020
main90301-08020
9030111025
main90301-11025
9046022002
main90460-22002
9046046005
main90460-46005
9046705127
main90467-05127
9046706206C0
main90467-06206C0
9095904001
main90959-04001
91673A0612
main91673-A0612
91673A0820
main91673-A0820
48 parts on this diagram · 3 diagrams in section
