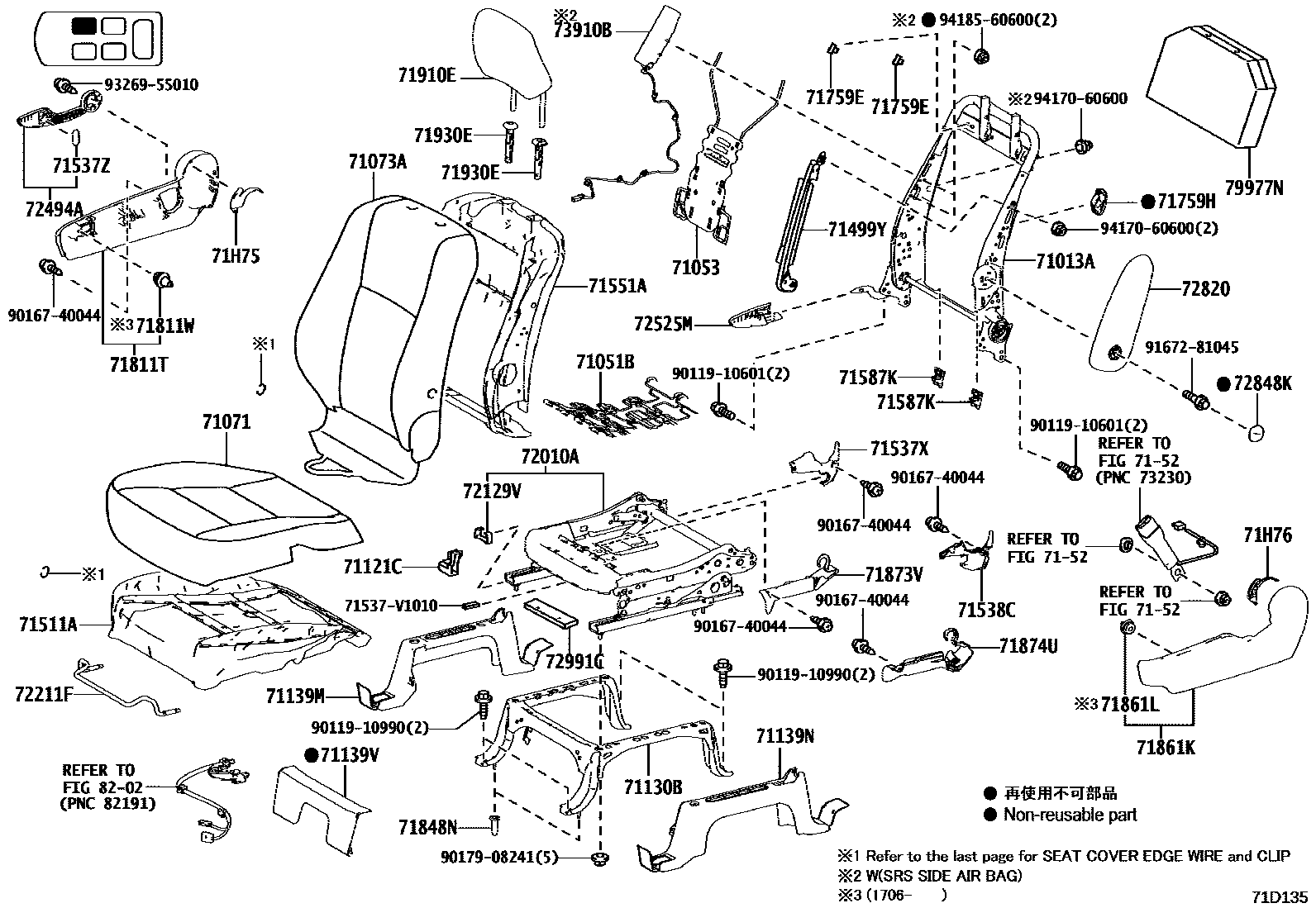

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1PASSNGER SEAT 0003 1EDGE WIRE & CLIP

71013AFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-28420iZRR80..NOAH201401-201901

sub71013-28520

main71013-28430iZRR80..ZS201706-201901

sub71013-28530

main71013-28520iZRR80..NOAH201901-201903

sub71013-28521

main71013-28521iZRR80..NOAH201904

main71013-28530iZRR80..ZS201901-201903

sub71013-28531

main71013-28531iZRR80..ZS201904

71051BSPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47060iZRR80201401-201706

71053SPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-52050iZRR80201401-201706

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-28G40-C1iZRR80..X201706

BLACK,TRIM2#

sub71071-28G41

main71071-28G90-C4iZRR80..SI201401-201706

BLACK/BLACK,TRIM2#

main71071-28J10-A1iZRR80..X201401-201706

IVORY,TRIM0#

main71071-28N40-B0iZRR80..SI201706-201812

DARK GRAY,TRIM2#

sub71071-28R00

main71071-28N80-C8iZRR80..ZS201706-201901

BURGUNDY BLACK,TRIM22

main71071-28N80-C9iZRR80..ZS201706-201901

BLACK,TRIM20

main71071-28P90-C0iZRR80..ZS201901

BURGUNDY BLACK,TRIM22

sub71071-28P92

main71071-28P90-C1iZRR80..ZS201901

BLACK,TRIM20

sub71071-28P92

main71071-28R00-B2iZRR80..SI201901

DARK GRAY,TRIM2#

sub71071-28R01

71073ACOVER SUB-ASSY, FRONT SEATBACK, RH

main71073-28L60-C2iZRR80..X201706-201901

BLACK,TRIM2#

main71073-28L80-C4iZRR80..SI201401-201706

BLACK,TRIM2#

main71073-28M00-A2iZRR80..X201401-201706

IVORY,TRIM0#

main71073-28T90-B0iZRR80..SI201706-201901

DARK GRAY,TRIM2#

main71073-28U70-C4iZRR80..ZS201706-201901

BURGUNDY BLACK,TRIM22

main71073-28U70-C5iZRR80..ZS201706-201901

BLACK,TRIM20

main71073-28X10-C0iZRR80..X201901

BLACK,TRIM2#

main71073-28X30-B0iZRR80..SI201901

DARK GRAY,TRIM2#

main71073-28Y50-C0iZRR80..ZS201901

BLACK,TRIM22

sub71073-28Y51

main71073-28Y50-C1iZRR80..ZS201901

BLACK,TRIM20

sub71073-28Y51

71121CBRACKET, FRONT SEAT CUSHION, RH

main71121-47010iZRR80201401-201706

71130BLEG ASSY, FRONT SEAT, RH

main71130-28080iZRR80201401-201706

71139MCOVER, FRONT SEAT LEG, RH OUTER

main71139-28230-C0iZRR80..X201401-201706

BLACK,TRIM2#

71139NCOVER, FRONT SEAT LEG, RH INNER

main71149-28200-C0iZRR80..X201401-201706

BLACK,TRIM2#

71139VCOVER, FRONT SEAT LEG NO.1

main71139-28220-C0iZRR80..X201401-201706

BLACK,TRIM2#

71499YDAMPER, SEATBACK SPRING, RH

main71499-28090iZRR80201401-201706

71511APAD, FRONT SEAT CUSHION, RH

main71511-28370iZRR80201401-201504

main71511-28371iZRR80201504-201706

7152

71537XPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-28100-C0iZRR80..X201509-201712

BLACK,TRIM2#

sub71537-28100

main71537-28100-C1iZRR80201712

BLACK,TRIM2#

sub71537-28100

main71537-47010-C0iZRR80..X201401-201509

BLACK,TRIM2#

sub71537-47010

71537ZPROTECTOR, FRONT SEAT CUSHION

main71537-47040iZRR80201401-202112

71538CPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-28010-C0iZRR80..X201509-201712

BLACK,TRIM2#

sub71538-28010

main71538-28010-C1iZRR80201712

BLACK,TRIM2#

sub71538-28010

main71538-47010-C0iZRR80..X201401-201509

BLACK,TRIM2#

sub71538-47010

71551APAD, FRONT SEATBACK, RH

main71551-28760iZRR80201401-201706

main71551-28770iZRR80..ZS201706

71587KPROTECTOR, FRONT SEATBACK EDGE, RH

main71587-52030iZRR80201401-201706

71759EHOOK, FRONT SEATBACK, RH

main71759-47011iZRR80201401-201706

71759HHOOK, FRONT SEATBACK

main71759-28060-A0iZRR80..X201401-201706

IVORY,TRIM00

main71759-28060-C0iZRR80..X201401-201706

BLACK,TRIM2#

71811TSHIELD, FRONT SEAT CUSHION, RH

main71811-12430-C0iZRR80..X201401-201706

BLACK,TRIM2#

sub71811-12430

71811WCLIP, FRONT SEAT CUSHION SHIELD, RH

main71769-47020iZRR80201706

71848NCAP, FRONT SEAT ADJUSTER COVER, RH NO.1

main71848-52040iZRR80201401-201706

71861KSHIELD, FRONT SEAT CUSHION, INNER RH

main71861-28080-C0iZRR80..X201401-201706

BLACK,TRIM2#

71861LCLIP, FRONT SEAT CUSHION SHIELD, RH

main71769-47020iZRR80201706

71873VSHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47040iZRR80201401-201706

71874USHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47040iZRR80201401-202112

71910EHEADREST ASSY, FRONT SEAT, RH

main71910-28D30-C0iZRR80..X201706-202112

BLACK,TRIM2#

main71910-28D40-C2iZRR80..SI201401-201812

BLACK/BLACK,TRIM2#

sub71910-28E30

main71910-28D50-A1iZRR80..X201401-201706

IVORY,TRIM0#

main71910-28E30-C1iZRR80..SI201901-202112

BLACK,TRIM2#

main71910-28E90-C1iZRR80..ZS201706-202112

BLACK,TRIM2#

71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH

main71930-47020-A1iZRR80..X201401-201706

W(LOCK),IVORY,TRIM0#

sub71930-47020

main71930-47020-C0iZRR80201401-202111

W(LOCK),BLACK,TRIM2#

sub71930-47020

main71930-47020-C4iZRR80202111

W(LOCK),BLACK,TRIM2#

sub71930-47020

main71931-47020-A1iZRR80..X201401-201706

W/O(LOCK),IVORY,TRIM0#

sub71931-47020

main71931-47020-C0iZRR80201401-202111

W/O(LOCK),BLACK,TRIM2#

sub71931-47020

main71931-47020-C4iZRR80202111

W/O(LOCK),BLACK,TRIM2#

sub71931-47020

71H75COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)

main71875-47030-C0iZRR80..X201401-201706

BLACK,TRIM2#

sub71875-47030

71H76COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

main71876-47030-C0iZRR80..X201401-201706

BLACK,TRIM2#

sub71876-47030

72010AADJUSTER ASSY, FRONT SEAT, RH

main72010-28040iZRR80201401-201706

main72010-28050iZRR80..ZS201706

72129VPROTECTOR, SEAT TRACK LOWER RAIL, RH

main72129-28470iZRR80201401-201706

72211FHANDLE, SEAT TRACK ADJUSTING, RH

main72211-28160iZRR80201401-201706

72494AHANDLE, FRONT SEAT VERTICAL ADJUSTER, RH

main72494-42020-C0iZRR80..X201401-201706

BLACK,TRIM2#

72525MHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-C0iZRR80..X201401-201710

BLACK,TRIM2#

sub72525-47010

sub72525-52050

main72525-47010-C1iZRR80201710

BLACK,TRIM2#

sub72525-47010

sub72525-52050

72820ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT)

main72890-28F50-C1iZRR80..SI201401-201706

BLACK,TRIM2#

main72890-28F60-A0iZRR80..X201401-201706

IVORY,TRIM0#

main72890-28F60-C0iZRR80..X201401-201706

BLACK,TRIM2#

main72890-28L90-B1iZRR80..X201706

DK.GRAY,TRIM2#

main72890-28M00-C0iZRR80..SI201706

BLACK,TRIM2#

main72890-28M20-C1iZRR80..ZS201706

BLACK,TRIM2#

72848KCAP, SEAT ARMREST, NO.1(FOR RH SEAT)

main72848-28030-A5iZRR80..X201401-201706

IVORY,TRIM0#

sub72848-28030

sub72848-0E020

main72848-28030-C0iZRR80201401-201706

BLACK,TRIM2#

sub72848-28030

sub72848-0E020

72991CCOVER, FRONT SEAT

main72991-28220iZRR80201401-201706

73910BAIRBAG ASSY, FRONT SEAT, RH

main73910-28040iZRR80..ZS201706

79977NFELT, SEATBACK

main79977-33010iZRR80201401-201706

8202

71537V1010WASHER, REAR SEAT ARMREST

main71537-V1010

9011910601

main90119-10601

9011910990

main90119-10990

9016740044

main90167-40044

9017908241

main90179-08241

9167281045

main91672-81045

9326955010

main93269-55010

9417060600

main94170-60600

9418560600

main94185-60600

51 parts on this diagram · 3 diagrams in section
