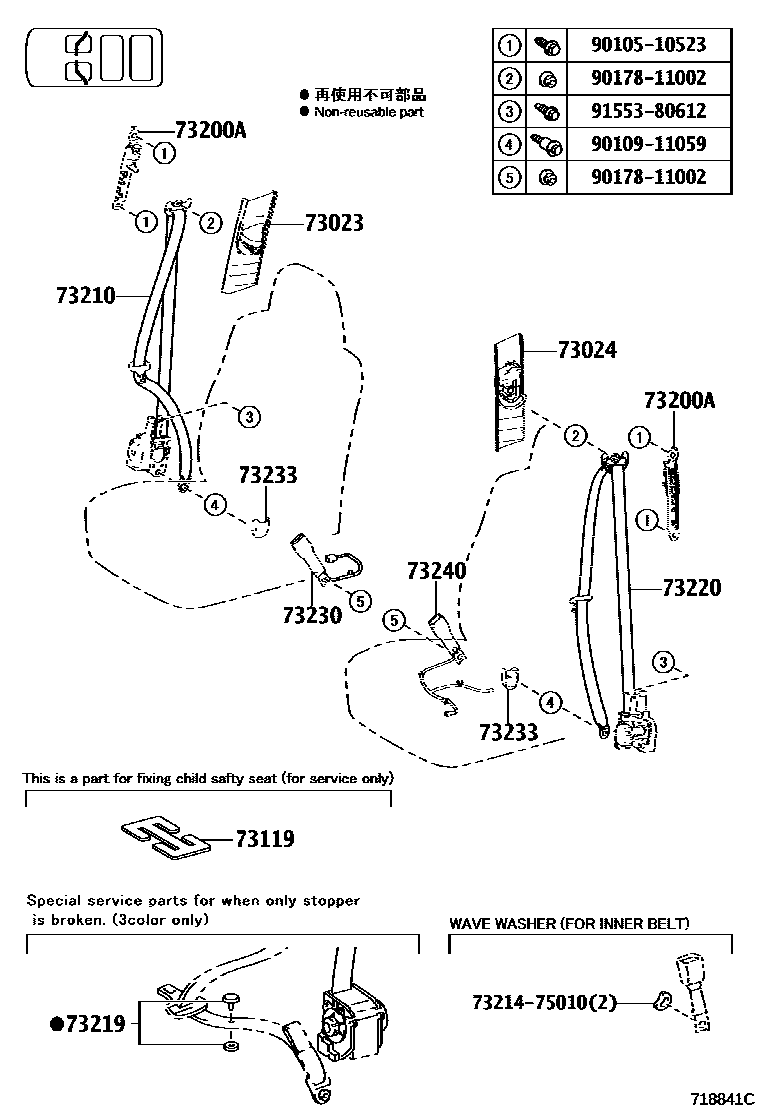

SEAT BELT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.1 SEAT 0004 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33030-B1iZRR80..X201401-202101

LT.GRAY,TRIM2#

sub73023-58010

sub73023-33030

main73023-33030-B1iZRR80..X201401-201706

LT.GRAY,TRIM0#,2#

sub73023-58010

sub73023-33030

main73023-33030-C0iZRR80..07S201706-202101

BLACK,TRIM2#

sub73023-58010

sub73023-33030

main73023-58010-B0iZRR80..X202101

LT.GRAY,TRIM2#

main73023-58010-C0iZRR80..07S202101

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33030-B1iZRR80..X201401-201706

LT.GRAY,TRIM0#,2#

sub73024-58010

sub73024-33030

main73024-33030-B1iZRR80..X201401-202101

LT.GRAY,TRIM2#

sub73024-58010

sub73024-33030

main73024-33030-C0iZRR80..07S201706-202101

BLACK,TRIM2#

sub73024-58010

sub73024-33030

main73024-58010-B0iZRR80..X202101

LT.GRAY,TRIM2#

sub73024-58010

main73024-58010-C0iZRR80..07S202101

BLACK,TRIM2#

sub73024-58010

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iZRR80201401-201706

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010iZRR80201401-201706

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-28850-B0iZRR80..X201401-201706

LT.GRAY,TRIM0#

sub73210-28851

main73210-28850-B0iZRR80..X201401-201706

LT.GRAY,TRIM2#

sub73210-28851

main73210-28851-C0iZRR80201706

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iZRR80201401-201706

BLACK

main73219-33020iZRR80201401-201706

GRAY

main73219-33030iZRR80201401-201706

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-28840-B0iZRR80..SI201401-201706

LT.GRAY,TRIM2#

sub73220-28841

main73220-28840-B0iZRR80..X201401-201706

LT.GRAY,TRIM0#

sub73220-28841

main73220-28841-C0iZRR80201706

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-28651-C0iZRR80..X201401-201509

BLACK,TRIM0#

sub73230-28652

main73230-28651-C0iZRR80..X201401-201509

BLACK,TRIM2#

sub73230-28652

main73230-28652-C0iZRR80..X201509-201706

BLACK,TRIM0#

main73230-28652-C0iZRR80..X201509-201706

BLACK,TRIM2#

main73230-28661-C0iZRR80..ZS201706

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C0iZRR80..X201401-201610

BLACK,TRIM0#,2#

sub73233-60020

sub73233-35010

main73233-60020-C0iZRR80..X201401-201610

BLACK,TRIM2#

sub73233-60020

sub73233-35010

main73233-60020-C1iZRR80..X201610-201706

BLACK,TRIM0#

sub73233-60020

sub73233-35010

main73233-60020-C1iZRR80..X201610-201706

BLACK,TRIM2#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-28210-C0iZRR80..X201401-201509

BLACK,TRIM0#,2#

sub73240-28211

main73240-28210-C0iZRR80..X201401-201509

BLACK,TRIM2#

sub73240-28211

main73240-28211-C0iZRR80..X201509-201706

BLACK,TRIM2#

main73240-28211-C0iZRR80..SI201509-201706

BLACK,TRIM0#

main73240-28220-C0iZRR80..ZS201706

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010911059

main90109-11059

9017811002

main90178-11002

9155380612

main91553-80612

15 parts on this diagram · 4 diagrams in section
