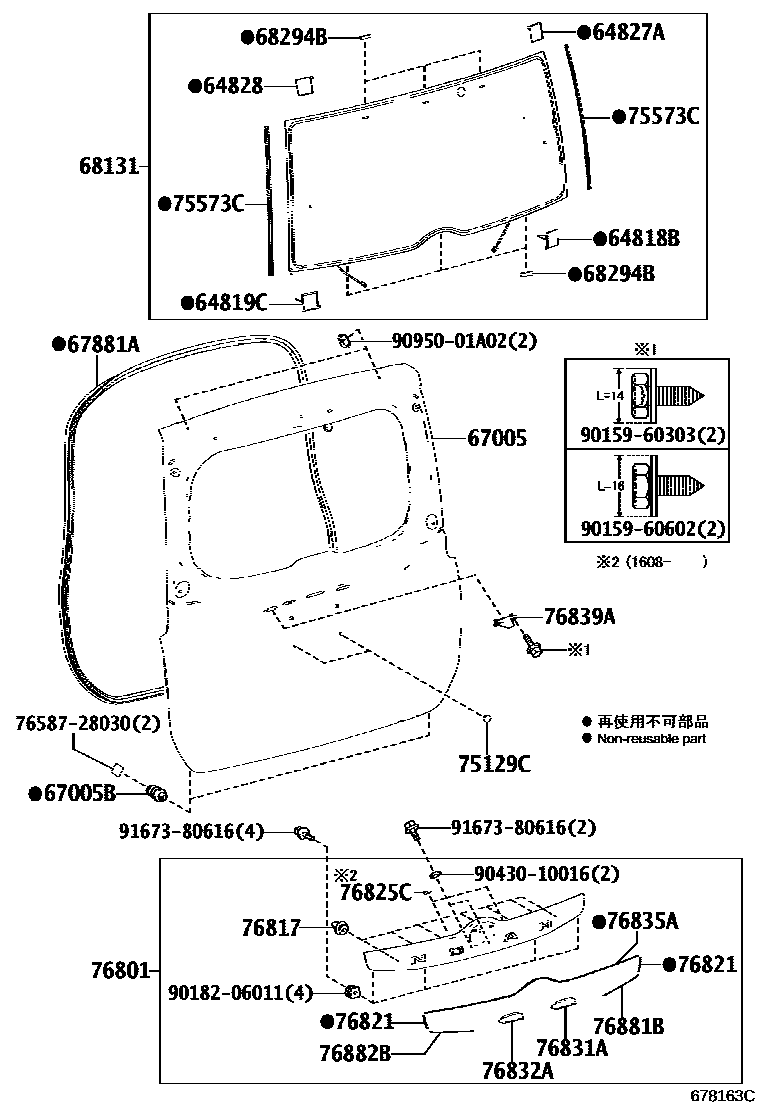

BACK DOOR PANEL & GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819CSPACER, BACK DOOR GLASS, NO.2
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
67005BCUSHION(FOR BACK DOOR PANEL)
67881AWEATHERSTRIP, BACK DOOR
68294BDAM, BACK DOOR GLASS ADHESIVE
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
PLATED
PLATED
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
RH
LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH
30 X 4 X 5
76831ACOVER, BACK DOOR FINISH PANEL, RH
76832ACOVER, BACK DOOR FINISH PANEL, LH
76835APROTECTOR, BACK DOOR FINISH PANEL, NO.1
76839ACOVER, BACK DOOR GARNISH
76881BPROTECTOR, BACK DOOR LOWER MOULDING, RH
sub76881-28050
76882BPROTECTOR, BACK DOOR LOWER MOULDING, LH
sub76881-28050
7658728030PROTECTOR, CENTER PILLAR OUTER GERNISH
main76587-28030
9015960303
main90159-60303
9015960602
main90159-60602
9018206011
main90182-06011
9043010016
main90430-10016
9095001A02
main90950-01A02
9167380616
main91673-80616
29 parts on this diagram · 4 diagrams in section
