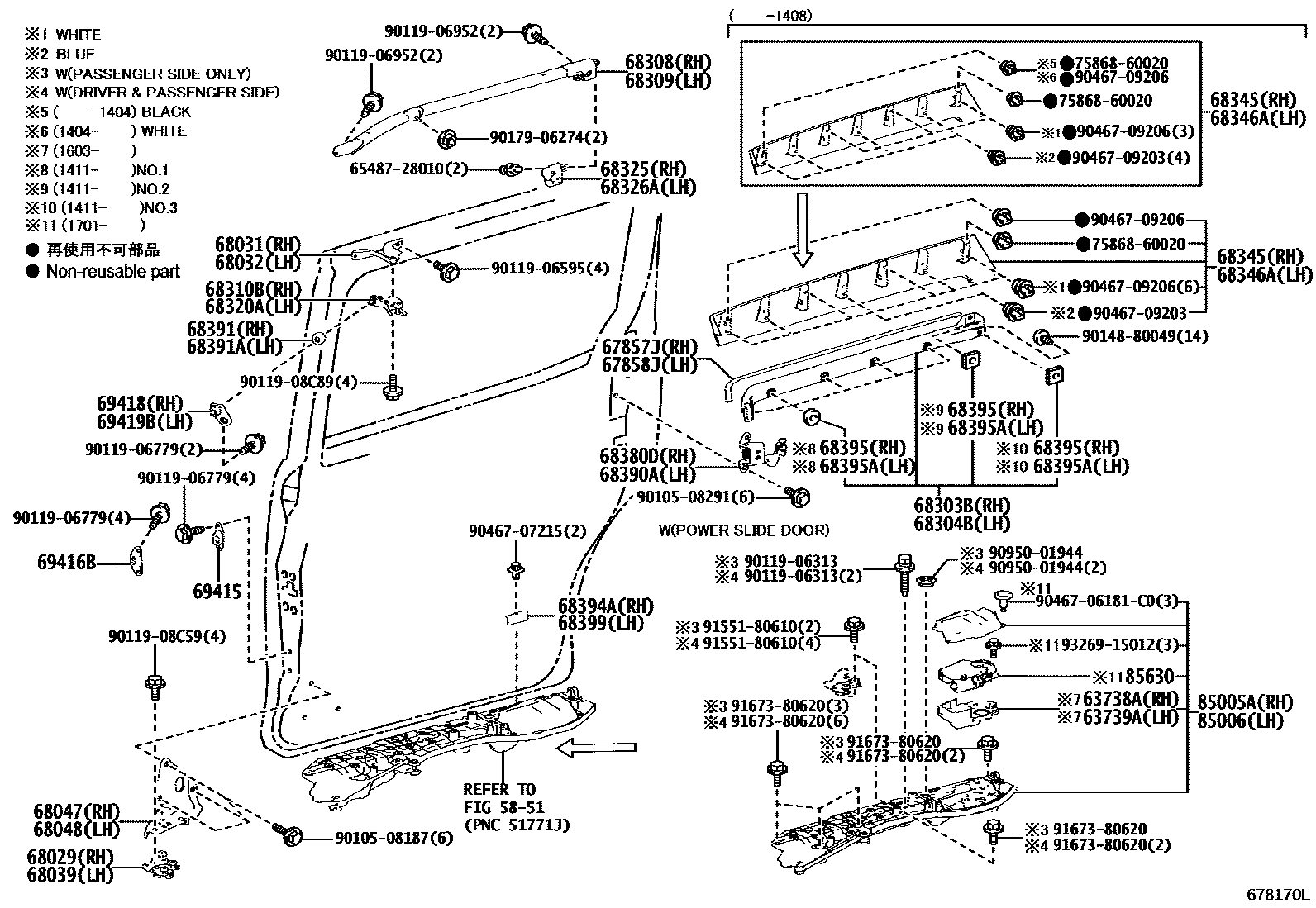

SLIDE ROLLER & RAIL

5851

63738ACOVER, MOULDING, RH

main63738-28030iZRR80..ZS¥1,070201603-201908

63739ACOVER, MOULDING, LH

main63739-28020iZRR80¥1,070201603-201908

67857JPROTECTOR, SLIDE DOOR RAIL, RH

main67857-28030iZRR80¥2,260201401-201502

sub67857-28031¥2,260

main67857-28031iZRR80¥2,260201503-201507

sub67857-28032¥1,570

main67857-28032iZRR80¥1,570201508-201706

67858JPROTECTOR, SLIDE DOOR RAIL, LH

main67858-28030iZRR80¥2,260201401-201502

sub67858-28031¥2,260

main67858-28031iZRR80¥2,260201503-201507

sub67858-28032¥1,570

main67858-28032iZRR80¥1,570201508-201706

68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68029-28090iZRR80¥3,440201401-201706

68031ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH

main68381-28040iZRR80¥1,060201401-201706

68032ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH

main68382-28040iZRR80¥1,060201401-201706

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-28100iZRR80¥3,550201401-201706

68047ARM SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH

main68335-28070iZRR80¥4,140201401-201706

68048ARM SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68336-28090iZRR80¥4,140201401-201706

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-28110iZRR80¥11,400201401-201410

sub68303-28111¥7,800

main68303-28111iZRR80¥7,800201411-201706

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-28140iZRR80¥12,900201401-201410

sub68304-28141¥8,900

main68304-28141iZRR80¥8,900201411-201706

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-28070iZRR80¥3,910201401-201706

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-28070iZRR80¥3,910201401-201706

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68301-28060iZRR80¥2,130201401-201403

sub68301-28061¥1,770

main68301-28061iZRR80¥1,770201404-202009

sub68301-V1020¥1,470

main68301-V1020iZRR80¥1,470202010

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68302-28050iZRR80¥2,130201401-201403

sub68302-28051¥1,770

main68302-28051iZRR80¥1,770201404-202009

sub68302-V1020¥1,470

main68302-V1020iZRR80¥1,470202010

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-28050iZRR80¥1,190201401-201706

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-28050iZRR80¥1,190201401-201706

68345COVER, SLIDE DOOR CENTER RAIL

main60835-28040-A0iZRR80201401-201706

WHITE PEARL CS.,070

main60835-28040-A1iZRR80..NOAH201706

LUXURY WHITE PEARL CS.GF.,086

main60835-28040-B0iZRR80201401-201706

SILVER ME.,1F7

main60835-28040-C0iZRR80201401-201706

BLACK,202

main60835-28040-C1iZRR80..07S201706

BLACKISH AGEHA M.M.,221

main60835-28040-C3iZRR80..ZS201706

INAZUMA SPARKING BLACK GF,224

main60835-28040-D0iZRR80..NOAH201401-201706

DEEP RED M.M.,3R9

main60835-28040-E0iZRR80..X201401-201706

ROSE CHAMPAGNE M.M.,4W4

main60835-28040-E2iZRR80..X201706

AVANT-GARDE BRONZE ME.,4V8

main60835-28040-H0iZRR80201401-201706

OCEAN MINT ME.,789

main60835-28040-K0iZRR80..SI201401-201706

DK.VIOLET M.M.,9AF

68346ACOVER, SLIDE DOOR CENTER RAIL, LH

main60836-28040-A0iZRR80201401-201706

WHITE PEARL CS.,070

main60836-28040-A1iZRR80..NOAH201706

LUXURY WHITE PEARL CS.GF.,086

main60836-28040-B0iZRR80201401-201706

SILVER ME.,1F7

main60836-28040-C0iZRR80201401-201706

BLACK,202

main60836-28040-C1iZRR80..07S201706

BLACKISH AGEHA M.M.,221

main60836-28040-C3iZRR80..ZS201706

INAZUMA SPARKING BLACK GF,224

main60836-28040-D0iZRR80201401-201706

DEEP RED M.M.,3R9

main60836-28040-E0iZRR80..X201401-201706

ROSE CHAMPAGNE M.M.,4W4

main60836-28040-E2iZRR80..X201706

AVANT-GARDE BRONZE ME.,4V8

main60836-28040-H0iZRR80201401-201706

OCEAN MINT ME.,789

main60836-28040-K0iZRR80..SI201401-201706

DK.VIOLET M.M.,9AF

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-28120iZRR80¥6,400201401-201602

sub68380-28121¥5,300

main68380-28121iZRR80¥5,300201603-201703

sub68380-28122¥4,380

main68380-28122iZRR80¥4,380201704-201706

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-28140iZRR80¥6,400201401-201602

sub68390-28141¥5,300

main68390-28141iZRR80¥5,300201603-201703

sub68390-28142¥4,380

main68390-28142iZRR80¥4,380201704-201706

68391CUSHION, SLIDE DOOR UPPER ROLLER, RH

main68391-28040iZRR80¥200201401-201706

68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH

main68391-28040iZRR80¥200201401-201706

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-28040iZRR80¥510201401-201706

68395PACKING, SLIDE DOOR CENTER RAIL

main68395-28100iZRR80¥240201411-201706

NO.1:REFER ILLUST.

main68395-28110iZRR80¥330201411-202011

NO.2:REFER ILLUST.

main68395-28120iZRR80¥240201411-202011

NO.3:REFER ILLUST.

main68395-52020iZRR80¥270202011

NO.2 & NO.3

68395APACKING, SLIDE DOOR CENTER RAIL

main68395-28100iZRR80¥240201411-201706

NO.1:REFER ILLUST.

main68395-28110iZRR80¥330201411-202011

NO.2:REFER ILLUST.

main68395-28120iZRR80¥240201411-202011

NO.3:REFER ILLUST.

main68395-52020iZRR80¥270202011

NO.2 & NO.3

68399PLATE, SLIDE DOOR LOWER RAIL, LH

main68394-28040iZRR80¥510201401-201706

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-28021iZRR80¥1,040201401-201906

sub69415-58020¥780

main69415-58020iZRR80¥780201907

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69046-28020iZRR80¥270201401-201706

69418STOP, SLIDE DOOR OPEN

main69418-28120iZRR80¥810201401-201603

main69418-28121iZRR80¥670201603-201908

sub69418-28122¥500

main69418-28122iZRR80¥500201909

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-28060iZRR80¥810201401-201603

main69419-28061iZRR80¥670201603-201908

sub69419-28062¥500

main69419-28062iZRR80¥500201909

85005AMOTOR UNIT, SLIDE DOOR, RH

main85005-28070iZRR80..SI¥86,100201401-201405

sub85005-28071¥86,100

main85005-28071iZRR80..SI¥86,100201406-201410

sub85005-28072¥86,100

main85005-28072iZRR80..SI¥86,100201411-201501

sub85005-28073¥86,100

main85005-28073iZRR80..SI¥86,100201502-201507

sub85005-28074¥86,100

main85005-28074iZRR80..SI¥86,100201508-201511

sub85005-28075¥86,100

main85005-28075iZRR80..SI¥86,100201512-201602

sub85005-28076¥86,200

main85005-28076iZRR80..SI¥86,200201603-201612

sub85005-28077¥71,800

main85005-28077iZRR80..SI¥71,800201701-201706

main85005-28140iZRR80..ZS¥59,800201706-201908

main85005-V1010iZRR80..ZS201909

85006MOTOR UNIT, SLIDE DOOR, LH

main85006-28130iZRR80..ZS¥59,800201706-201908

main85006-28170iZRR80¥86,100201401-201405

sub85006-28171¥86,100

main85006-28171iZRR80¥86,100201406-201410

sub85006-28172¥86,100

main85006-28172iZRR80¥86,100201411-201501

sub85006-28173¥86,100

main85006-28173iZRR80¥86,100201502-201507

sub85006-28174¥86,100

main85006-28174iZRR80¥86,100201508-201511

sub85006-28175¥86,100

main85006-28175iZRR80¥86,100201512-201602

sub85006-28176¥86,200

main85006-28176iZRR80¥86,200201603-201612

sub85006-28177¥71,800

main85006-28177iZRR80¥71,800201701-201706

main85006-V1010iZRR80..ZS201909

85630MOTOR ASSY, SLIDE DOOR

main85470-28010iZRR80..SI¥14,100201701-201706

RH

main85470-28030iZRR80..ZS¥11,700201706-201908

RH

main85480-28010iZRR80..X¥14,100201701-201706

LH

main85480-28010iZRR80..X¥14,100201701-201706

#, LH

main85480-28030iZRR80..X¥11,700201706

#, LH

main85480-28030iZRR80..X¥11,700201706-201908

LH

6548728010CLIP, CORNER PROTECTOR

main65487-28010¥130

7586860020ORNAMENT, BACK DOOR OUTSIDE, RH

main75868-60020¥210

9010508187

main90105-08187¥90

9010508291

main90105-08291¥90

9011906313

main90119-06313¥140

9011906595

main90119-06595¥220

9011906779

main90119-06779¥60

9011906952

main90119-06952¥60

9011908C59

main90119-08C59¥80

9011908C89

main90119-08C89¥80

9014880049

main90148-80049¥60

9017906274

main90179-06274¥70

9046706181C0

main90467-06181C0

9046707215

main90467-07215¥80

9046709203

main90467-09203¥80

9046709206

main90467-09206¥80

9095001944

main90950-01944¥100

9155180610

main91551-80610¥60

9167380620

main91673-80620¥60

9326915012

main93269-15012¥80

56 parts on this diagram · 1 diagram in section
