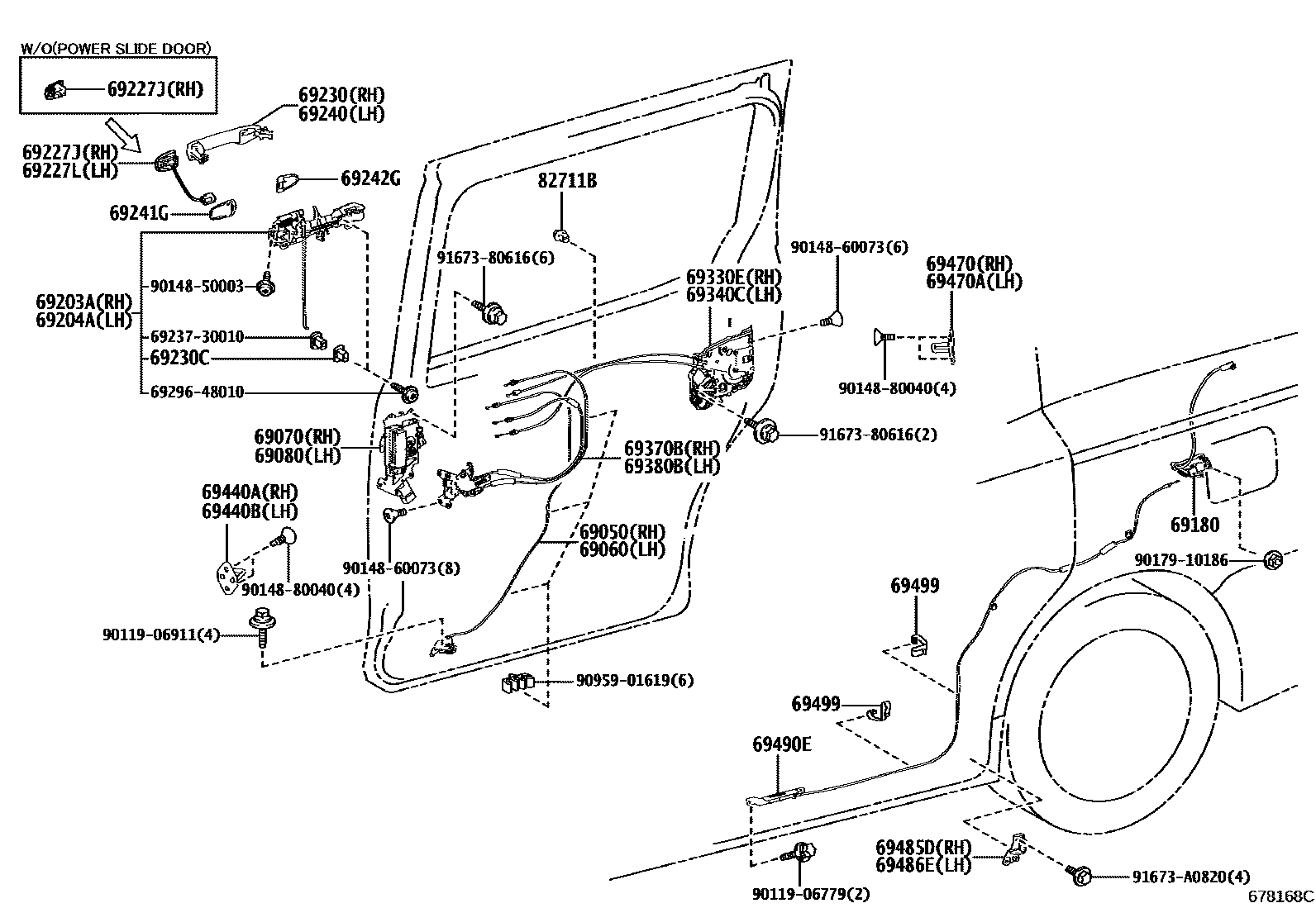

REAR DOOR LOCK & HANDLE
69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070
LUXURY WHITE PEARL CS.GF.,086
SILVER ME.,1F7
BLACK,202
BLACKISH AGEHA M.M.,221
DEEP RED M.M.,3R9
OCEAN MINT ME.,789
DK.VIOLET M.M.,9AF
*CR
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,070
LUXURY WHITE PEARL CS.GF.,086
SILVER ME.,1F7
BLACK,202
BLACKISH AGEHA M.M.,221
DEEP RED M.M.,3R9
ROSE CHAMPAGNE M.M.,4W4
AVANT-GARDE BRONZE ME.,4V8
OCEAN MINT ME.,789
DK.VIOLET M.M.,9AF
*CR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070
LUXURY WHITE PEARL CS.GF.,086
SILVER ME.,1F7
BLACK,202
BLACKISH AGEHA M.M.,221
DEEP RED M.M.,3R9
ROSE CHAMPAGNE M.M.,4W4
AVANT-GARDE BRONZE ME.,4V8
OCEAN MINT ME.,789
DK.VIOLET M.M.,9AF
PLATED
69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
LUXURY WHITE PEARL CS.GF.,086
SILVER ME.,1F7
BLACK,202
BLACKISH AGEHA M.M.,221
DEEP RED M.M.,3R9
ROSE CHAMPAGNE M.M.,4W4
AVANT-GARDE BRONZE ME.,4V8
OCEAN MINT ME.,789
DK.VIOLET M.M.,9AF
PLATED
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69330ELOCK ASSY, SLIDE DOOR, RH
sub69200-28071
sub69200-28110
sub69200-28081
sub69200-28120
sub69200-28111
sub69200-28121
69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69470PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
69485DSTRIKER, SLIDE DOOR OPEN, RH
69486ESTRIKER, SLIDE DOOR OPEN, LH
69490ESTOPPER ASSY, SLIDE DOOR HALF OPEN
69499CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE
82711BCLAMP, WIRING HARNESS
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9011906779
main90119-06779
9011906911
main90119-06911
9014850003
main90148-50003
9014860073
main90148-60073
9014880040
main90148-80040
9017910186
main90179-10186
9095901619
main90959-01619
9167380616
main91673-80616
91673A0820
main91673-A0820
38 parts on this diagram · 1 diagram in section
