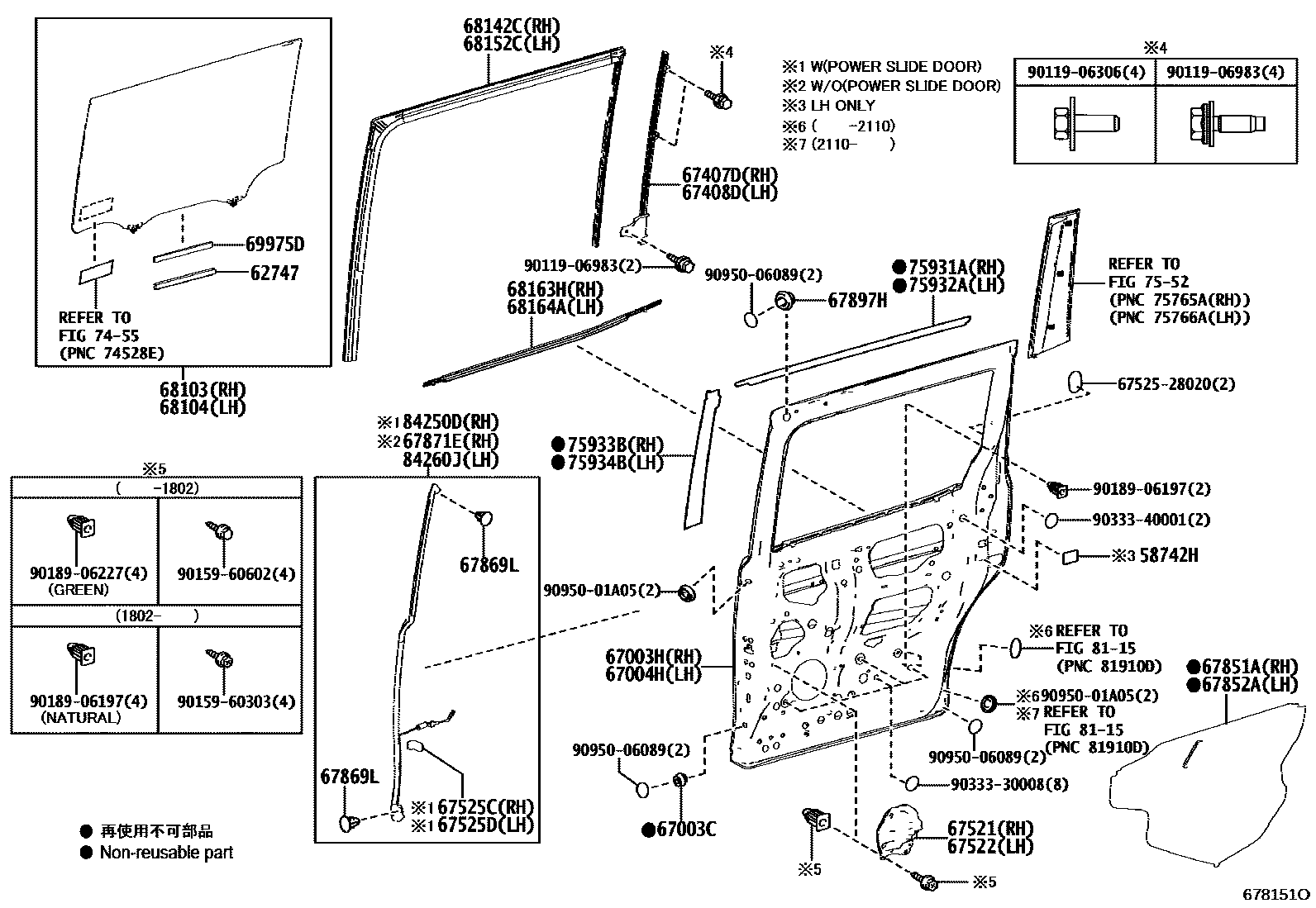

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

58742HPROTECTOR, SLIDE DOOR, LH

main58743-28020iZRR80201401-201706

62747CHANNEL, REAR DOOR WINDOW GLASS

main69955-47010iZRR80201401-201706

67003CCUSHION, REAR DOOR PANEL

main90541-08032iZRR80201401-201706

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-28630iZRR80..X201401-201706

main67003-28660iZRR80..SI201401-201706

main67003-28700iZRR80..ZS201706

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-28610iZRR80..SI201401-201706

main67004-28640iZRR80..ZS201706

main67004-28650iZRR80..X201401-201706

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-28050iZRR80201401-201706

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-28080iZRR80201401-201706

67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH

main67521-28060iZRR80201401-201706

67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH

main67522-28050iZRR80201401-201706

67525CCOVER, SLIDE DOOR PANEL, LOWER RH

main67525-28050iZRR80..ZS201401-201908

67525DCOVER, SLIDE DOOR PANEL, LOWER LH

main67526-28050iZRR80..ZS201401-201908

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-28130iZRR80201401-201706

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-28150iZRR80201401-201706

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-28020iZRR80201401-201908

67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main00000-00000iZRR80..ZS201401-202112

main67865-28060iZRR80..X201401-201502

sub67865-28070

main67865-28070iZRR80..X201503-201610

sub67865-28071

main67865-28071iZRR80..X201611-202112

67897HCUSHION, REAR DOOR

main90541-09141iZRR80201401-201706

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-28301iZRR80..ZS201706

main68103-28310iZRR80201401-201706

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-28311iZRR80..ZS201706

main68104-28320iZRR80201401-201706

68142CRUN, REAR DOOR GLASS, RH

main68142-28090iZRR80201401-201505

sub68142-28091

main68142-28091iZRR80201506-201706

68152CRUN, REAR DOOR GLASS, LH

main68152-28060iZRR80201401-201505

sub68152-28061

main68152-28061iZRR80201506-201706

68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH

main68163-28060iZRR80201401-201510

sub68163-28061

main68163-28061iZRR80201511-201706

main68163-28071iZRR80..ZS201706

68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH

main68164-28060iZRR80201401-201510

sub68164-28061

main68164-28061iZRR80201511-201706

main68164-28071iZRR80..ZS201706

69975DFILLER, REAR DOOR GLASS CHANNAL

main69975-47010iZRR80201401-201706

7455

7552

75931ATAPE, BLACK OUT, OUTER UPPER RH

main75931-28050iZRR80201401-201706

75932ATAPE, BLACK OUT, OUTER UPPER LH

main75932-28050iZRR80201401-201706

75933BTAPE, BLACK OUT, OUTER FRONT RH

main75933-28050iZRR80201401-201706

75934BTAPE, BLACK OUT, OUTER FRONT LH

main75934-28050iZRR80201401-201706

8115

84250DSENSOR ASSY, POWER SLIDE DOOR, RH

main00000-00000iZRR80..X201401-202112

main84250-28320iZRR80..SI201401-201502

sub84250-28370

main84250-28370iZRR80..SI201503-201701

sub84250-28371

main84250-28371iZRR80..SI201702-202112

84260JSENSOR ASSY, POWER SLIDE DOOR, LH

main84260-28100iZRR80201401-201502

sub84260-28110

main84260-28110iZRR80..X201503-201701

sub84260-28111

main84260-28111iZRR80..X201611-201908

6752528020COVER, SLIDE DOOR PANEL, LOWER

main67525-28020

9011906306

main90119-06306

9011906983

main90119-06983

9015960303

main90159-60303

9015960602

main90159-60602

9018906197

main90189-06197

9018906227

main90189-06227

9033330008

main90333-30008

9033340001

main90333-40001

9095001A05

main90950-01A05

9095006089

main90950-06089

43 parts on this diagram · 2 diagrams in section
