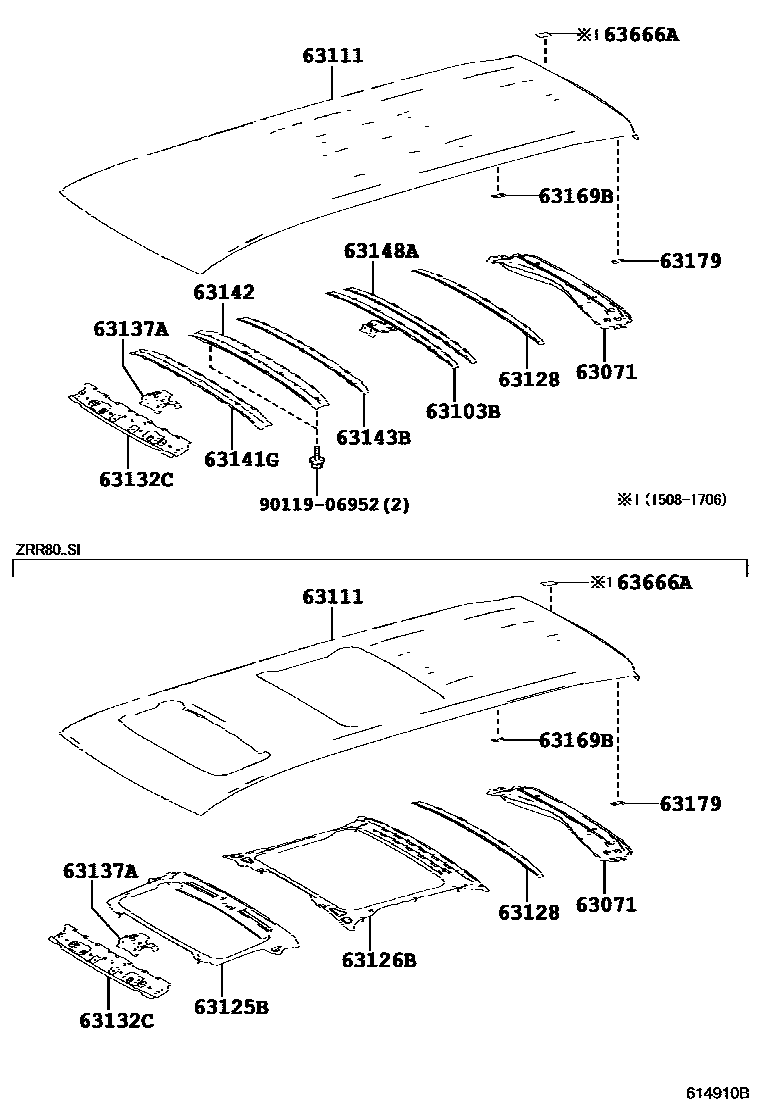

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1TILT ROOF HOUSING 0003 1SLIDING ROOF HOUSING

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-28080iZRR80201401-201706

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-28090iZRR80..X,ZS201401-201706

63111PANEL, ROOF

main63111-28300iZRR80..X201401-201706

main63111-28310iZRR80..ZS201706

TWIN MOON ROOF-WITH

main63111-28310iZRR80..SI201401-201706

63125BREINFORCEMENT, ROOF PANEL, FRONT

main63125-28100iZRR80..SI201401-201706

main63125-28100iZRR80..SI201706

TWIN MOON ROOF-WITH

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-28020iZRR80..SI201401-201706

main63126-28020iZRR80..SI201706

TWIN MOON ROOF-WITH

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-28030iZRR80201401-201706

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-28120iZRR80201401-201706

63137ABRACKET, DOME LAMP, NO.1

main63137-28070iZRR80201401-201706

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-28160iZRR80..X201401-201706

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-28110iZRR80..X201401-201706

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-28110iZRR80..X201401-201706

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-28010iZRR80..X201401-201706

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-28030iZRR80201401-201706

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63169-28030iZRR80201401-201706

63666APROTECTOR, ROOF, REAR

main76587-28060iZRR80201508-201706

9011906952

main90119-06952

16 parts on this diagram · 3 diagrams in section
