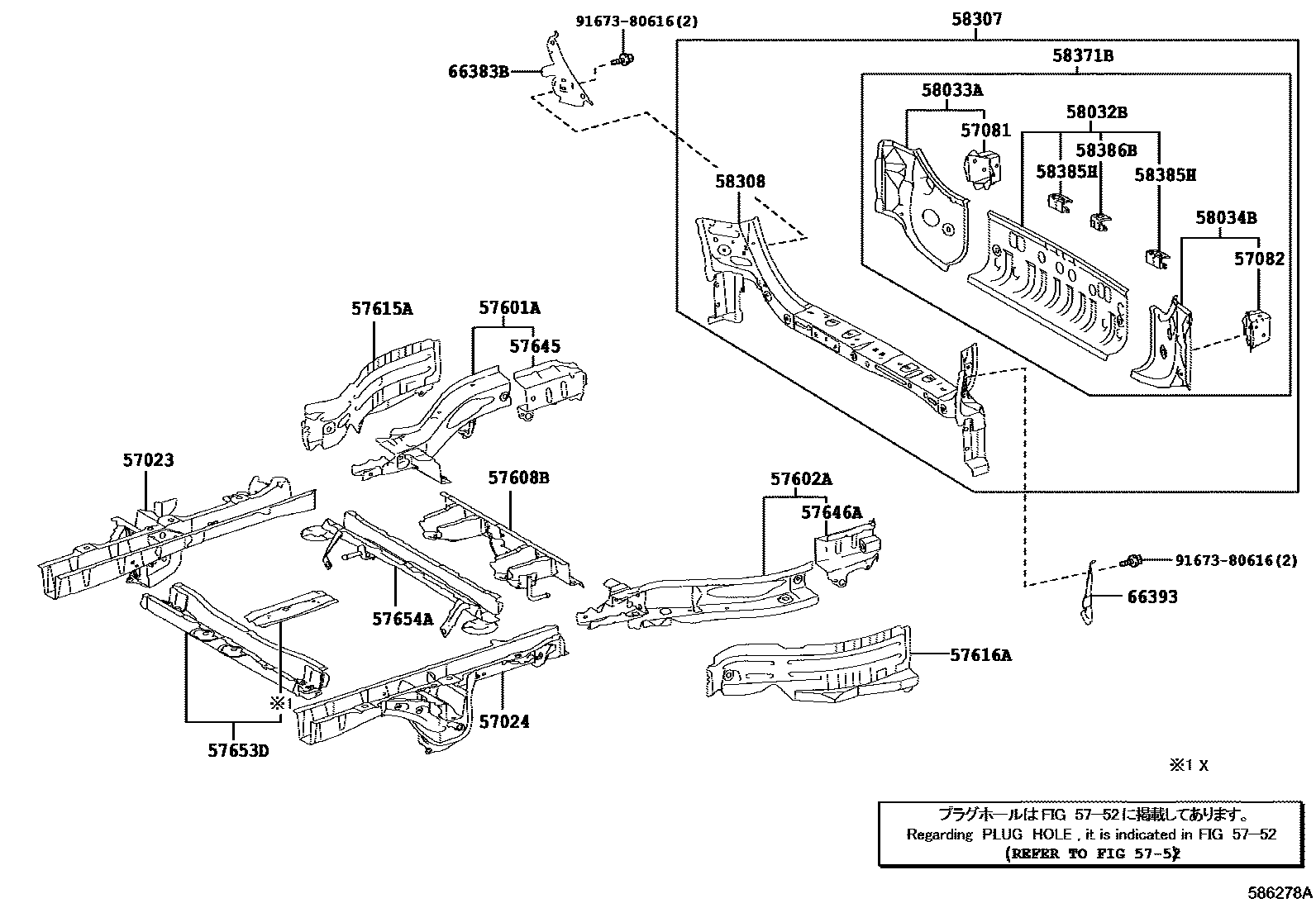

REAR FLOOR PANEL & REAR FLOOR MEMBER
57023MEMBER SUB-ASSY, REAR SIDE, RH
57024MEMBER SUB-ASSY, REAR SIDE, LH
57081BRACKET SUB-ASSY, REAR BUMPER MOUNTING
57082BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
5752
57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57645REINFORCEMENT, REAR SIDE MEMBER, RH
57646AREINFORCEMENT, REAR SIDE MEMBER, LH
57653DMEMBER, REAR FLOOR CROSS, NO.2
57654AMEMBER, REAR FLOOR CROSS, NO.3
58032BPANEL SUB-ASSY, REAR FLOOR, CENTER
58033AREINFORCE SUB-ASSY, BODY LOWER BACK, RH
58034BREINFORCE SUB-ASSY, BODY LOWER BACK, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58308PANEL SUB-ASSY, BODY LOWER BACK, INNER
58371BPANEL, BODY LOWER BACK, OUTER
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
66383BBRACKET, ROPE HOOK, NO.1 RH
66393BRACKET, ROPE HOOK, NO.1 LH
9167380616
25 parts on this diagram · 2 diagrams in section
