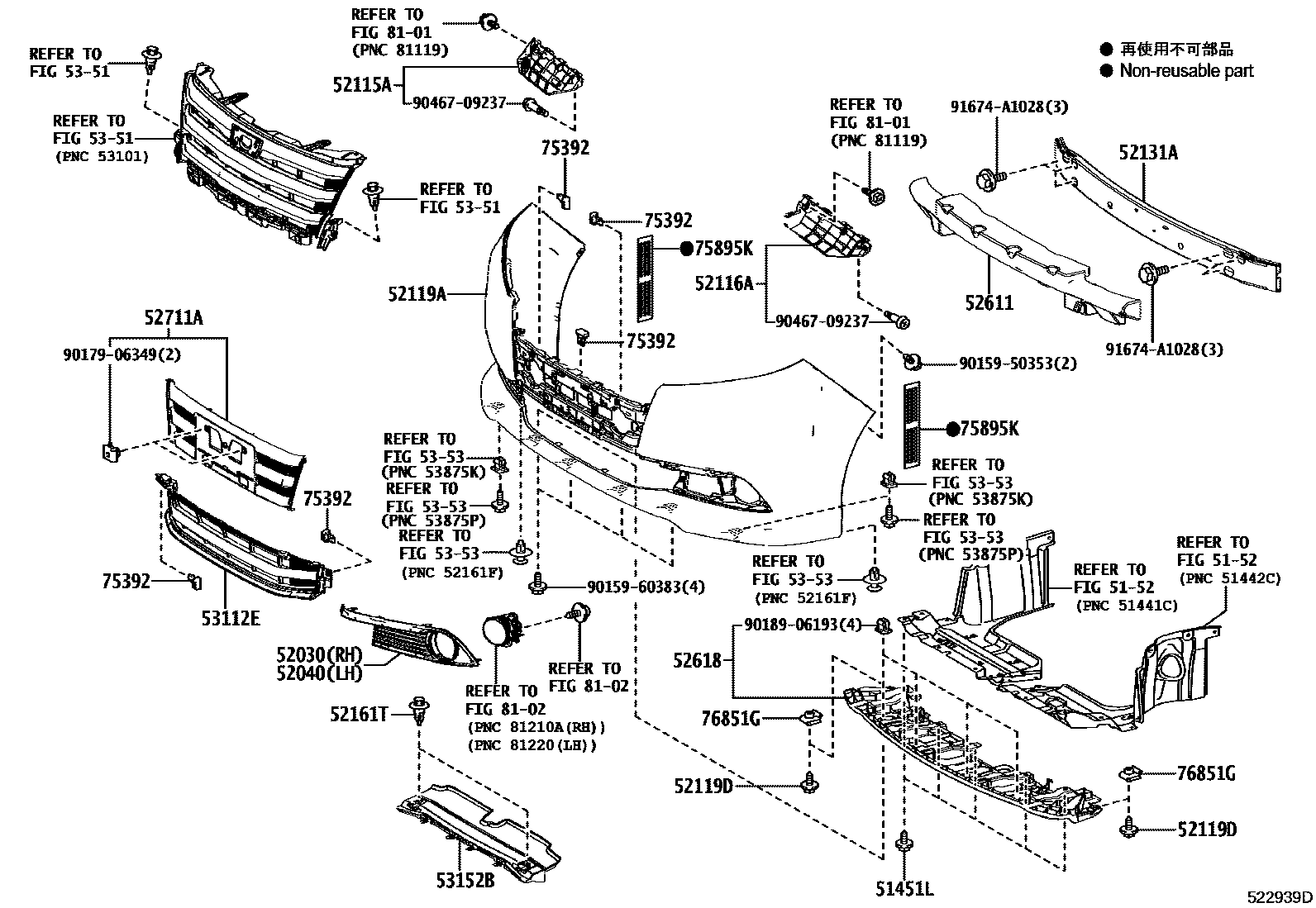

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1

51451LBOLT, NO.1

main90119-06767iZRR80201401-201706

5152

52030COVER ASSY, FRONT BUMPER HOLE, RH

main52030-28030iZRR80..X201401-201706

PLATED

main52030-28040iZRR80..SI201401-201706

PLATED

main52030-28110iZRR80..X201706

PLATED

main52030-28120iZRR80..SI201706

PLATED

main52030-28140iZRR80..ZS201706

PLATED

52040COVER ASSY, FRONT BUMPER HOLE, LH

main52040-28030iZRR80..X201401-201706

PLATED

main52040-28040iZRR80..SI201401-201706

PLATED

main52040-28110iZRR80..X201706

PLATED

main52040-28120iZRR80..SI201706

PLATED

main52040-28140iZRR80..ZS201706

PLATED

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-28220iZRR80..X201401-201706

main52115-28230iZRR80..SI201401-201402

sub52115-28231

main52115-28231iZRR80..SI201402-201706

main52115-28251iZRR80..ZS201706

main52115-28270iZRR80..X201706

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-28090iZRR80..X201401-201706

main52116-28120iZRR80..SI201401-201402

sub52116-28121

main52116-28121iZRR80..SI201402-201706

main52116-28231iZRR80..ZS201706

main52116-28270iZRR80..X201706

52119ACOVER, FRONT BUMPER

main52119-2J952iZRR80..SI201401-201706

PAINT REQ.

main52119-2J995iZRR80..X201401-201706

PAINT REQ.

main52119-2R906iZRR80..X201706

PAINT REQ.

main52119-2R907iZRR80..ZS201706

PAINT REQ.

main52119-2R909iZRR80..SI201706

PAINT REQ.

52119DSCREW, NO.1

main90159-60383iZRR80201401-201706

52131AREINFORCEMENT, FRONT BUMPER

main52131-28170iZRR80201401-201706

52161TPIECE, FRONT BUMPER

main52161-16010iZRR80201401-201901

sub52161-0K040

52611ABSORBER, FRONT BUMPER ENERGY

main52611-28110iZRR80201401-201706

main52611-28111iZRR80201706

52618ABSORBER, FRONT BUMPER, LOWER

main52618-28030iZRR80201401-201706

52711MOULDING, FRONT BUMPER

main52711-28210iZRR80..SI201706

PLATED

main52711-28220iZRR80..ZS201706

PLATED

52711AGARNISH, FRONT BUMPER

main53105-28030iZRR80..X201401-201706

main53105-28040iZRR80..SI201401-201706

main53105-28080-A0iZRR80..X201706

WHITE PEARL CS.,070

main53105-28080-A1iZRR80..X201706

LUXURY WHITE PEARL CS.GF.,086

main53105-28080-B0iZRR80..X201706

SILVER ME.,1F7

main53105-28080-C0iZRR80..X201706

BLACK,202

main53105-28080-D0iZRR80..X201706

DEEP RED M.M.,3R9

main53105-28080-E0iZRR80..X201706

AVANT-GARDE BRONZE ME.,4V8

main53105-28090iZRR80..SI201706

53112EGRILLE, RADIATOR, LOWER NO.1

main53102-28060iZRR80..SI201706

PLATED

main53102-28070iZRR80..ZS201706-201901

PLATED

sub53102-28090

sub53121-28260

sub53122-28090

sub90167-50063

main53102-28090iZRR80..ZS201901

PLATED

main53112-28220iZRR80..X201401-201706

NO PAINT REQ.

main53112-28230iZRR80..SI201401-201706

NO PAINT REQ.

main53112-28310iZRR80..X201706

NO PAINT REQ.

53152BGUIDE, RADIATOR GRILLE AIR

main53152-28040iZRR80..X201401-201706

main53152-28060iZRR80..SI201401-201706

5351

5353

75392RETAINER, OUTSIDE MOULDING

main75392-35200iZRR80..SI201401-201706

75895KTAPE, MOULDING, NO.1

main75895-28010iZRR80201401-201706

76851GGROMMET, SCREW, NO.1

main90189-06131iZRR80201401-201706

8101

8102

9015950353

main90159-50353

9015960383

main90159-60383

9017906349

main90179-06349

9018906193

main90189-06193

9046709237

main90467-09237

91674A1028

main91674-A1028

29 parts on this diagram · 5 diagrams in section
