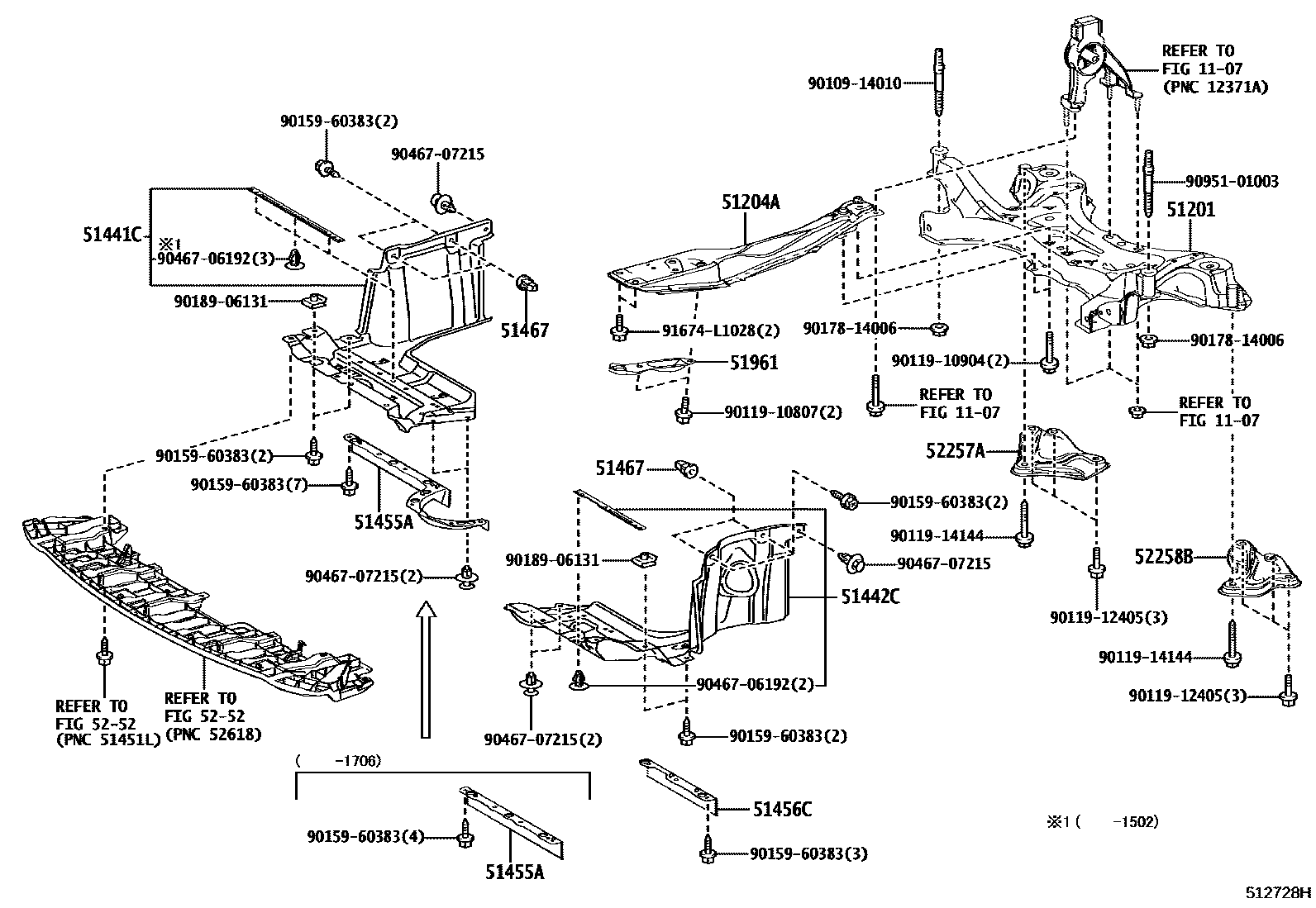

SUSPENSION CROSSMEMBER & UNDER COVER

1107

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-28231iZRR80201401-201706

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-28020iZRR80201401-201706

51441CCOVER, ENGINE UNDER, RH

main51441-28180iZRR80201401-201706

main51441-28181iZRR80201706

51442CCOVER, ENGINE UNDER, LH

main51442-28160iZRR80201401-201706

main51442-28161iZRR80201706

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-28040iZRR80201401-201706

main51455-28041iZRR80201706

51456CSEAL, ENGINE UNDER COVER, NO.2

main51456-28040iZRR80201401-201706

51467RETAINER, ENGINE UNDER COVER

main51467-28040iZRR80201401-201706

51961HOOK, NO.1

main51963-32040iZRR80201401-201706

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-28050iZRR80201401-201706

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-28040iZRR80201401-201706

5252

9010914010

main90109-14010

9011910807

main90119-10807

9011910904

main90119-10904

9011912405

main90119-12405

9011914144

main90119-14144

9015960383

main90159-60383

9017814006

main90178-14006

9018906131

main90189-06131

9046706192

main90467-06192

9046707215

main90467-07215

9095101003

main90951-01003

91674L1028

main91674-L1028

24 parts on this diagram · 1 diagram in section
