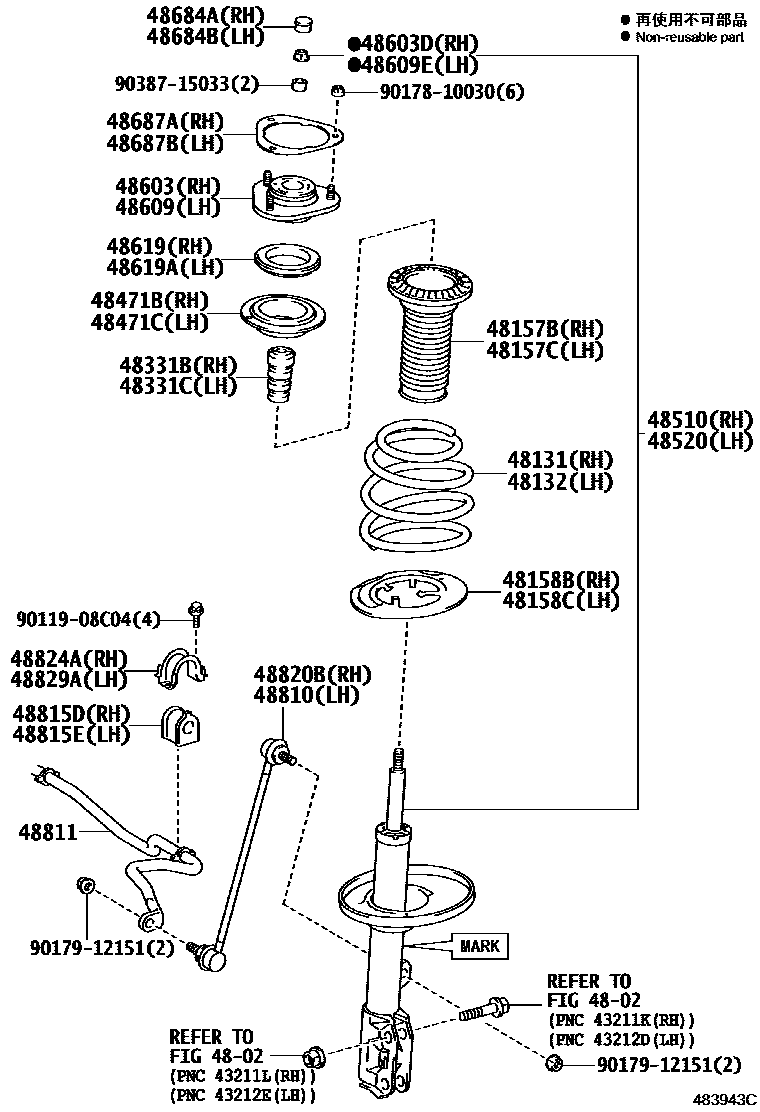

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
FOR INDONESIA
48132SPRING, FRONT COIL, LH
FOR INDONESIA
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-28470
MARK 48510-28471
MARK 48510-28590
MARK 48510-28580
MARK 48510-28620
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-28460
MARK 48520-28470
MARK 48520-28471
MARK 48520-28580
MARK 48520-28590
MARK 48520-28620
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48687APLATE, FRONT SUSPENSION SUPPORT, RH
48687BPLATE, FRONT SUSPENSION SUPPORT, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011908C04
main90119-08C04
9017810030
main90178-10030
9017912151
main90179-12151
9038715033
main90387-15033
34 parts on this diagram · 2 diagrams in section
