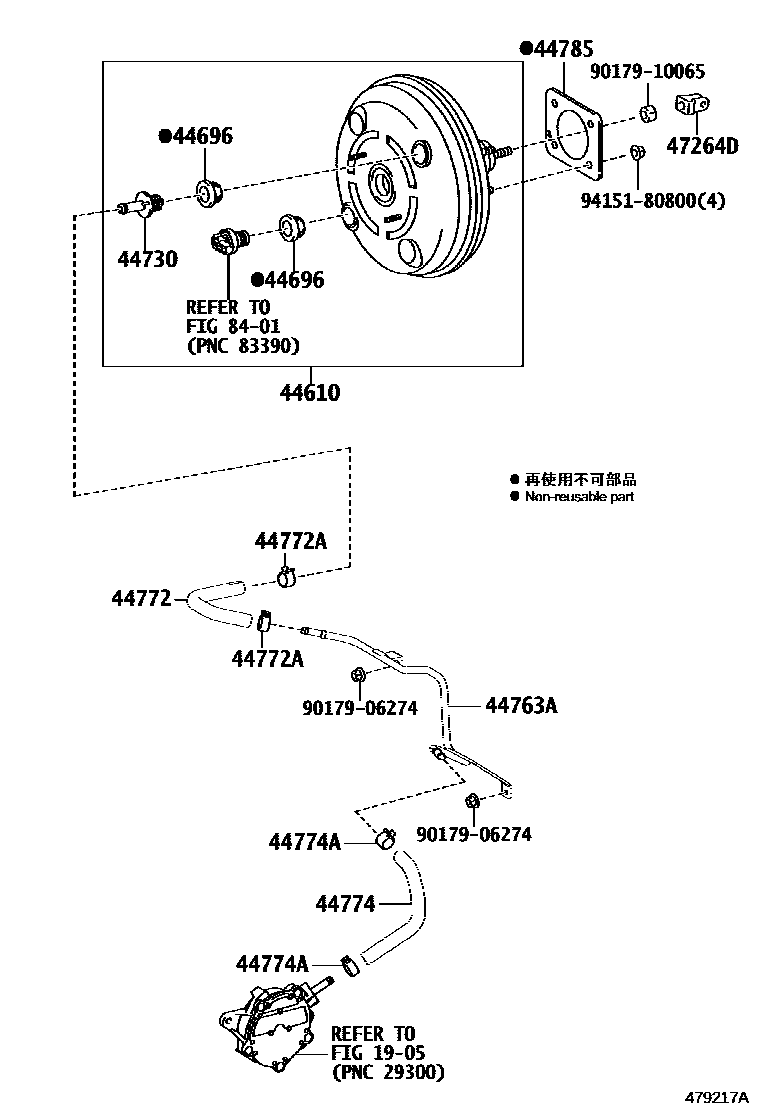

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-28B60iZRR80201403-201706

main44610-28B70iZRR80..ZS201401-201403

44696GROMMET, CHECK VALVE

main90480-24439iZRR80..ZS201401-201706

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iZRR80201401-201706

44763ATUBE, HOSE TO HOSE, NO.1

main44763-28140iZRR80201401-201706

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-28210iZRR80201401-201706

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iZRR80201401-201706

44774HOSE, UNION TO CONNECTOR TUBE

main44774-28290iZRR80201401-201706

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iZRR80201401-201706

44785GASKET, BRAKE BOOSTER

main44785-12040iZRR80201401-201706

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iZRR80201401-201706

8401

9017906274

main90179-06274

9017910065

main90179-10065

9415180800

main94151-80800

15 parts on this diagram · 2 diagrams in section
